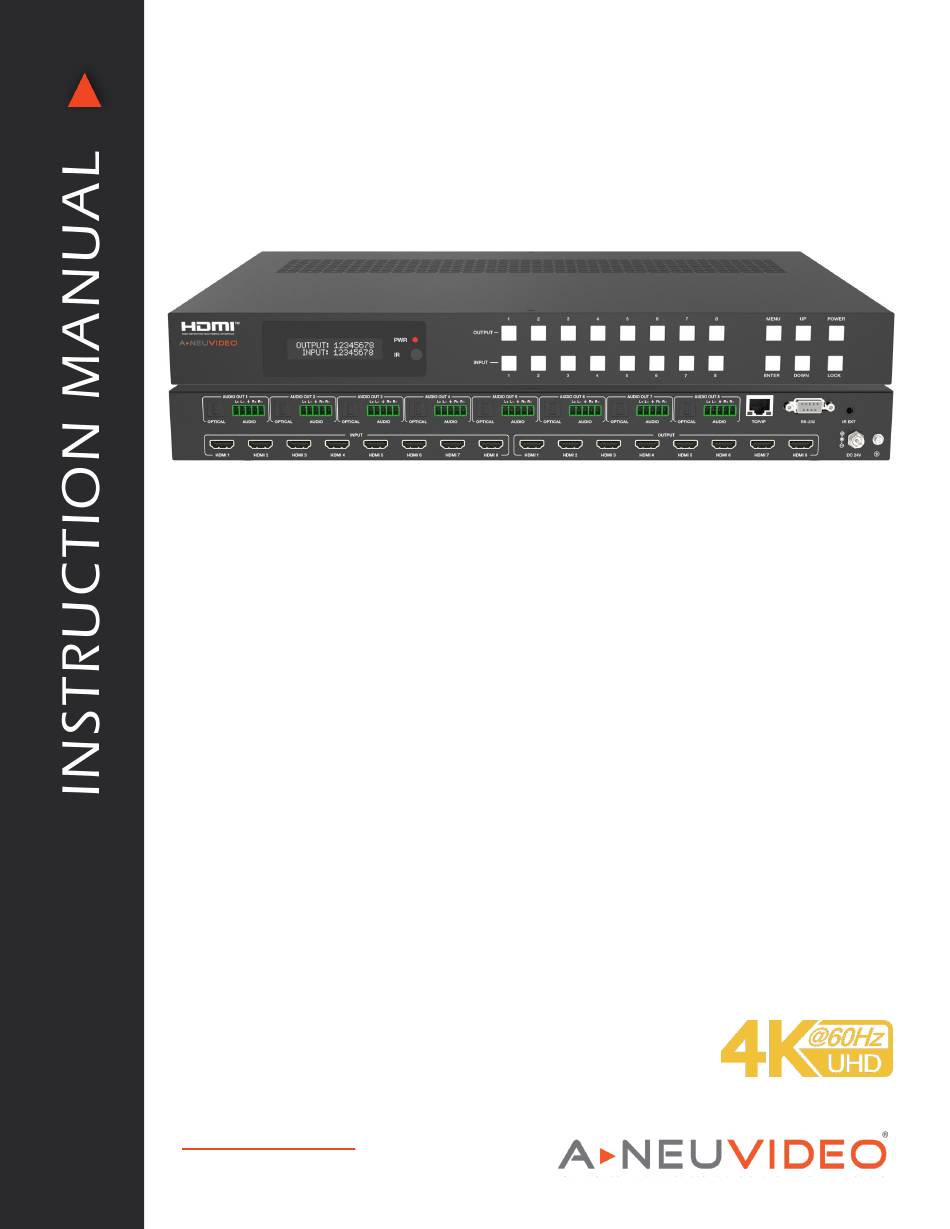

ANI-VW-88UHD
8x8 4K60 UHD HDR Quad/PiP/PoP Multiviewer Video Switcher
PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make sure the following items are
contained in the box:
• 18Gbps 8x8 Matrix
• 24V/3.75A Locking Power Supply
• IR Remote
• IR Wideband Receiver Cable (1.5M)
• USB to RS-232 Serial Cable (USB A to RS-232 serial DB9 male connector)
• (8) 5pin-3.5mm Phoenix Connector (male)
• (8) Machine Screw
• (8) Mounting Ear
A-NeuVideo.com
Frisco, Texas 75036
Advertisement
Table of Contents
Related Manuals for A-Neuvideo ANI-VW-88UHD
Summary of Contents for A-Neuvideo ANI-VW-88UHD
- Page 1 ANI-VW-88UHD 8x8 4K60 UHD HDR Quad/PiP/PoP Multiviewer Video Switcher PACKAGE CONTENTS Before attempting to use this unit, please check the packaging and make sure the following items are contained in the box: • 18Gbps 8x8 Matrix • 24V/3.75A Locking Power Supply •...
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
NEUVIDEO TABLE OF CONTENTS CONTENTS INTRODUCTION .................1 SAFETY PRECAUTIONS FEATURES / SPECIFICATIONS ..........2 Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. OPERATION CONTROLS & FUNCTIONS .........3 Please keep the following in mind as you unpack and install this IR REMOTE ..................5 equipment: IR CABLE PIN ASSIGNMENT &... -
Page 4: Features / Specifications
NEUVIDEO FEATURES & SPECIFICATIONS FEATURES • HDCP 2.2 compliant • Supports video resolution up to 4K@60Hz 4:4:4 and 18Gbps video bandwidth, as specified in HDMI 2.0b • Supports (8) routed L/R balanced audio output • Each output supports horizontal mirror and vertical mirror •... -
Page 5: Operation Controls & Functions
Short press the button to lock front panel buttons (Except the power button); press it again to unlock. **2RU Installation Required The ANI-VW-88UHD has two (2) top mounted exhaust fans. Installation requires a minimum of 1RU above the top of the chassis. -
Page 6: Rear Panel
NEUVIDEO OPERATION CONTROLS & FUNCTIONS Rear Panel AUDIO OUT (1~8): OPTICAL: Optical audio output port, connected to an audio output device such as audio amplifier. L/R AUDIO: Analog audio output port, supporting balanced/unbalanced audio output, with a maximum support of 2Vrms. Balanced connection method: L+, L -, , R+, R- Unbalanced connection method: L+,... -
Page 7: Remote Control
NEUVIDEO Remote Control Remote Control POWER ON OR STANDBY: Power on the Matrix or set it to standby mode. INPUT 1/2/3/4/5/6/7/8: Press these buttons to select the input source. ◄ ►: Select the last or next input source. OUTPUT 1/2/3/4/5/6/7/8: Select the output display device. -
Page 8: Ir Cable Pin Assignment/ Ir Control System
NEUVIDEO IR Cable Pin Assignment/ IR Control System IR Cable Pin Assignment IR Control System This product supports one-way IR control. When the matrix is connected to IR receiver cable and IR blaster cable, you can control the corresponding input source devices through IR signal transmission remotely at the side of display devices. Four IR blaster cables connected to the IR outputs must be placed near the four HDMI input sources. -
Page 9: Lcd Display Navigation
NEUVIDEO LCD Displa y Na vigation LCD Displa y Na vigation The buttons on the the front panel are used for LCD display navigation, including INPUT(1~8), OUTPUT(1~8), MENU, ENTER, UP, DOWN. Menu items are as follows: LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 RESO... -
Page 10: Edid Management
NEUVIDEO EDID Management EDID Management This Matrix has 12 factory defined EDID settings, 2 user-defined EDID modes and 8 copy EDID modes. You can select defined EDID mode or copy EDID mode to input port through front panel buttons, RS-232 control or Web GUI. On-panel button operation: On the initial LCD display screen, press “MENU”... - Page 11 NEUVIDEO EDID Management The defined EDID setting list of the product is shown as below: EDID MODE EDID DESCRIPTION 4K60, 2.0CH 4K60, 5.1CH 4K60, 7.1CH 4K30, 2.0CH 4K30, 5.1CH 4K30, 7.1CH 1080P, 2.0CH 1080P, 5.1CH 1080P, 7.1CH WUXGA, 2.0CH 768P, 2.0CH XGA, 2.0CH USER1 USER2...
-
Page 12: Web Gui User Gui
NEUVIDEO Web GUI User Guide Web GUI User Guide The Matrix can be controlled by Web GUI. The operation method is shown as below: Step 1: Get the current IP Address. The default IP address is 192.168.0.100. You can get the current Matrix IP address in two ways: The first way: You can get the IP address via IR remote. -
Page 13: Matrix Page
NEUVIDEO Web GUI User Guide Matrix Page In Matrix page, you can configure the HDMI matrix freely and create a preset if needed. 1. Matrix: you can click and select an output (1~8) firstly, and then select an input source (1~8) below which will appear in the selected output area. -
Page 14: Output Page
NEUVIDEO Web GUI User Guide After successful setting, it will prompt as follows: 6. Download EDID to your computer: If you want to download the existing EDID, click the drop-down box of “Select EDID File” to select the input channel you want, and then click “Download”... - Page 15 NEUVIDEO Web GUI User Guide 6. HDCP: Click the drop-down menu and set the HDCP version for current output. There are five options to be selected: • HDCP1.4: HDCP 1.4 compliant. • HDCP2.2: HDCP 2.2 compliant. • Follow Sink: HDCP version follows the corresponding display device. •...
- Page 16 NEUVIDEO Web GUI User Guide In Video Wall area, you can drag the mouse and choose the adjacent screens to splice. The splicing screen is distinguished by a color automatically. Note: Before splicing, it is necessary to assign each spliced screen to the output port via right-click menu. To the splicing screens, you can configure them at the same time by the right-click menu.
- Page 17 NEUVIDEO Web GUI User Guide Bind to Output: The Audio Output follows the HDMI Output. For example, if the HDMI Input 3 is assigned to the HDMI Output 1, the audio of AUDIO Output 1 which follows HDMI Output 1 is from HDMI Input 3. Click Enable/Disable button to turn on/off the audio channel. In this mode, the input sources can’t be selected.
-
Page 18: Network Page
NEUVIDEO Web GUI User Guide Network Page You can do the following operations on the Network page: 1. Modify Network Setting: Modify the IP Mode/IP Address/Gateway/Subnet Mask/Telnet Port as required, click “Save” to save the settings, and then it will come into effect. If the Mode is “Static”, you can set manually the IP Address/Gateway/Subnet/Telnet Port as required. -
Page 19: System Page
NEUVIDEO Web GUI User Guide 3. Set the Default Network: Click “Set Network Defaults”, there will be a prompt, as shown in the following figure: Click “OK” to search the IP Address again. After searching is completed, it will switch to the login page, the default network setting is completed. System Page You can do the following operations on the System page: 1. -
Page 20: Rs-232 Control Command
NEUVIDEO RS-232 Control Command RS-232 Control Command The product also supports RS-232 control. You need a serial cable with RS-232 male head and DB9 transfer USB male head. The RS-232 head of the serial cable is connected to the RS-232 control port with DB 9 at the rear of the Matrix, and the USB head of the serial cable is connected to a PC. - Page 21 NEUVIDEO RS-232 Control Command COMMAND CODE FUNCTION DESCRIPTION EXAMPLE FEEDBACK DEFAULT r lcd mode! get the backlight status of r lcd mode! lcd always on lcd screen s logo1 set the logo name s logo1 Matrix logo1:Matrix Switch ****************! displayed on the first line Swtich! of lcd screen,the max character is 16...
- Page 22 NEUVIDEO RS-232 Control Command COMMAND CODE FUNCTION DESCRIPTION EXAMPLE FEEDBACK DEFAULT r output x res! Get output x resolution r output 1 res! output 1 resolution: (y=0~8 (0=all output)) 3840x2160p60 s output x csc y! Set output x color space s output 1 csc 1! output 1 csc: rgb444 rgb444...
- Page 23 NEUVIDEO RS-232 Control Command FEEDBACK COMMAND CODE FUNCTION DESCRIPTION EXAMPLE DEFAULT EDID SETTING s input x edid z! Set hdmi input x edid mode s input 1 edid 1! input 1 edid: 4k60, 4k60, 2.0ch (x=0~8 (0=all input), z=1~22) 2.0ch z=1.
- Page 24 NEUVIDEO RS-232 Control Command COMMAND CODE FUNCTION DESCRIPTION EXAMPLE FEEDBACK DEFAULT s screen x output y! hdmi output 5->screen 5 cont’d hdmi output 6->screen 6 hdmi output 7->screen 7 hdmi output 8->screen 8 s vw group z row x col y! Set video wall group s vw group 1 row 1 vw group 1 row 1 col 2!
- Page 25 NEUVIDEO RS-232 Control Command COMMAND CODE FUNCTION DESCRIPTION EXAMPLE FEEDBACK DEFAULT clear vw preset z! Clear video wall preset z clear vw preset clear preset 1 scenarios, z=1~8 r vw preset z! Get video wall preset z r vw preset 1! video/audio crosspoint information, z=1~8 EXT- AUDIO SETTING...
- Page 26 NEUVIDEO RS-232 Control Command COMMAND CODE FUNCTION DESCRIPTION EXAMPLE FEEDBACK DEFAULT s cec in x right! set input x menu right s cec in 1 right! input 1 menu right operation by cec, operation x=0~8(0=all input) s cec in x enter! set input x menu enter by s cec in 1 enter! input 1 menu enter...
- Page 27 NEUVIDEO RS-232 Control Command COMMAND CODE FUNCTION DESCRIPTION EXAMPLE FEEDBACK DEFAULT r mac addr! get network mac address r mac addr! mac address: 00:1c:91:03:80:01 s ip mode z! set network ip mode to s ip mode 0! set ip mode:static. (use “s static ip or dhcp, z=0~1 net reboot!”...
-
Page 28: Connection Diagram
NEUVIDEO CONNECTION DIAGRAM CONNECTION DIAGRAM... - Page 29 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 30 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 31 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 32 BY, THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
