- Page 1 ANI-QUAD-MINI-4K 4x1 4K60Hz HDMI/DP Quad Multi-Viewer w/ Seamless Switcher w/ HDMI & 230ft (70M UTP) Output AUDIO / VIDEO MANUFACTURER A-NeuVideo.com Frisco, Texas 75036...
- Page 2 SAFETY INFORMATION 1. To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. 2. Follow all instructions printed on unit chassis for proper operation. 3.
- Page 3 NEUVIDEO SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. •...
- Page 4 PACKAGE CONTENTS Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton: • ANI-QUAD-MINI-4K Multi-Viewer • 230ft (70M) HDBT Receiver w/ PoC • 24V/1A power adapter • 3-way female captive screw connector...
- Page 5 FEATURES / SPECIFICATIONS FEATURES • Seamless switching on single display window mode • Supports (5) Multiview display modes • Supports HDMI 2.0,DP 1.2 input • Scaling output with multiple resolution options, up to 3840x2160@60 • Extensive EDID and HDCP control •...

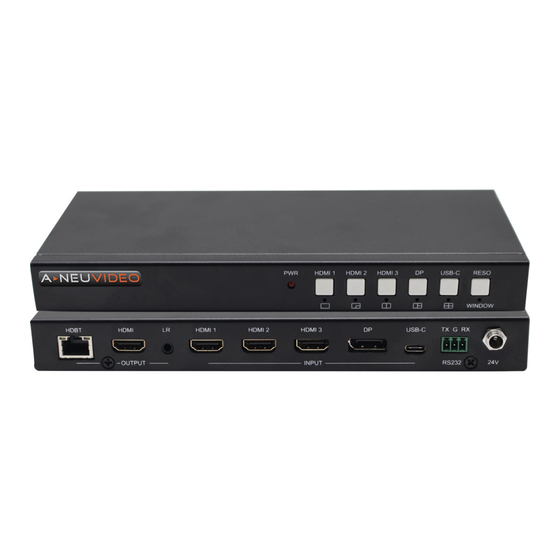

- Page 6 OPERATION CONTROLS & FUNCTIONS Front Panel q HDMI 1: Press HDMI 1 button to select HDMI 1 as the input source. Hold button for 3 seconds to enter SINGLE mode. SINGLE mode means only one display window on the screen NOTE: when works on non-SINGLE mode, directly short press input buttons will be invalid.
- Page 7 OPERATION CONTROLS & FUNCTIONS BACK Panel q HDBT OUT: HDBaseT™ Scaling output up to 3840x2160@60-4:2:0 Act as 24V POC-PSE. w HDMI OUT: HDMI scaling output up to 3840x2160@60. e LR OUT: 3.5mm LR stereo audio output, 20Hz ~ 20kHz, 1.5Vrms max. r INPUTS: HDMI 1, HDMI 2, HDMI 3, DP, USB-C.
- Page 8 EDID & HDCP handle / Video & Audio output EDID & HDCP handle The switcher support following EDID modes for source to detection, user can select it by RS-232 command. NUMBER EDID MODE NUMBER EDID MODE 4K60-2.0CH 1680x1050 4K60-5.1CH 1600x1200 4K30-2.0CH 1440x900 4K30-5.1CH...
- Page 9 Multiview / RS-232 commands Multiview The Switcher supports (5) Multiview display modes: SINGLE, PIP, PBP, 3xWIN, 4Xwin Users can select different operations for different Multiview modes as following: • SINGLE and 4xWIN: Inputs selection • PBP and 3xWIN: Inputs selection, Display Ratio selection •...
- Page 10 RS-232 Commands SWITCHING & INPUT COMMAND: The following commands are used for input selection or querying input information. These commands only are valid on SINGLE mode. COMMAND DETAILS SET IN SOURCE X8 X is one of the following: HDMI1, HDMI2, HDMI3, DP, USB-C Example: Send: SET IN SOURCE HDMI18 Receive: IN SOURCE HDMI18...
- Page 11 RS-232 Commands MULTIVIEW COMMAND: The following commands are used to select Multiview modes, windows layout and so on. COMMAND DETAILS Select one Multiview mode for current display X is one of the SET MULTIVIEW X8 following. Default: SINGLE SINGLE, PIP, PBP, 3xWIN, 4xWIN,...
- Page 12 RS-232 Commands COMMAND DETAILS This command to select the PIP sub window size. X is one of SET PIP SIZE X8 the following: SMALL, MIDDLE, LARGE. Default: LARGE Example: Send: SET PIP SIZE SMALL8 Receive: PIP SIZE SMALL8 GET PIP SIZE8 Get the PIP window size.
- Page 13 RS-232 Commands OUTPUT HDCP COMMAND: The following commands are used to select the HDMI Output HDCP modes: COMMAND DETAILS w is one of following: FORCE-1.4,FORCE-2.2,FORCE-OFF. SET OUT HDCP X8 Default: FORCE-OFF Example: Send: SET OUT HDCP FORCE-1.48 Receive: OUT HDCP FORCE-1.48 GET OUT HDCP8 Get the output current HDCP mode Example:...
- Page 14 RS-232 Commands COMMAND DETAILS GET OUT VKA8 Get current VKA mode. Example: Send: GET OUT VKA8 Receive: OUT VKA BLUESCREEN8 4K-AUTO COMMAND: If we set 4K output to a displayer which can’t support 4K, 4K-AUTO command can be enabled, switcher will change the output resolution according to displayer’s capability.
- Page 15 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 16 THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
