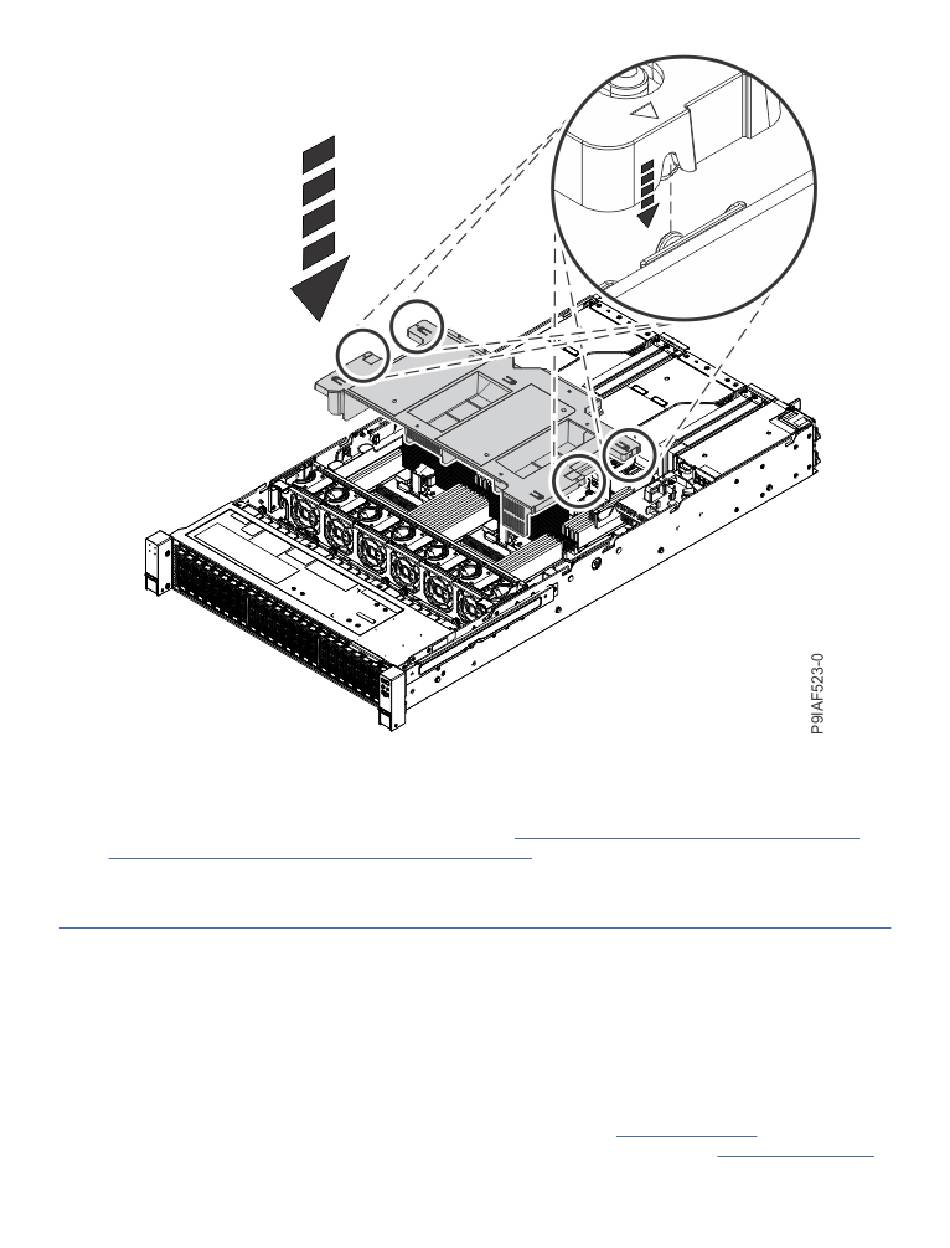

Figure 29. Replacing the air baffle
What to do next
Prepare the system for operation. For instructions, see "Preparing the 9183-22X system for operation
after you remove and replace internal parts" on page 101.
Installing PCIe adapters in the 9183-22X system
Find information about installing, using, and managing Peripheral Component Interconnect Express
(PCIe) adapters for the IBM Power System IC922 (9183-22X) system.

PCIe adapter placement rules and slot priorities for the 9183-22X system

Find information about the placement rules and slot priorities for the Peripheral Component Interconnect
Express (PCIe) adapters that are supported for the system.
PCIe slot descriptions
The system provides PCIe generation 3 and PCIe generation 4 slots. Table 6 on page 31 lists the PCIe
adapter slots and details for the system as viewed from the rear, from left to right. Figure 30 on page 31
shows the rear view of the system with the PCIe adapter slots. The system supports full-height, full-
length, and half-length PCIe adapters.
