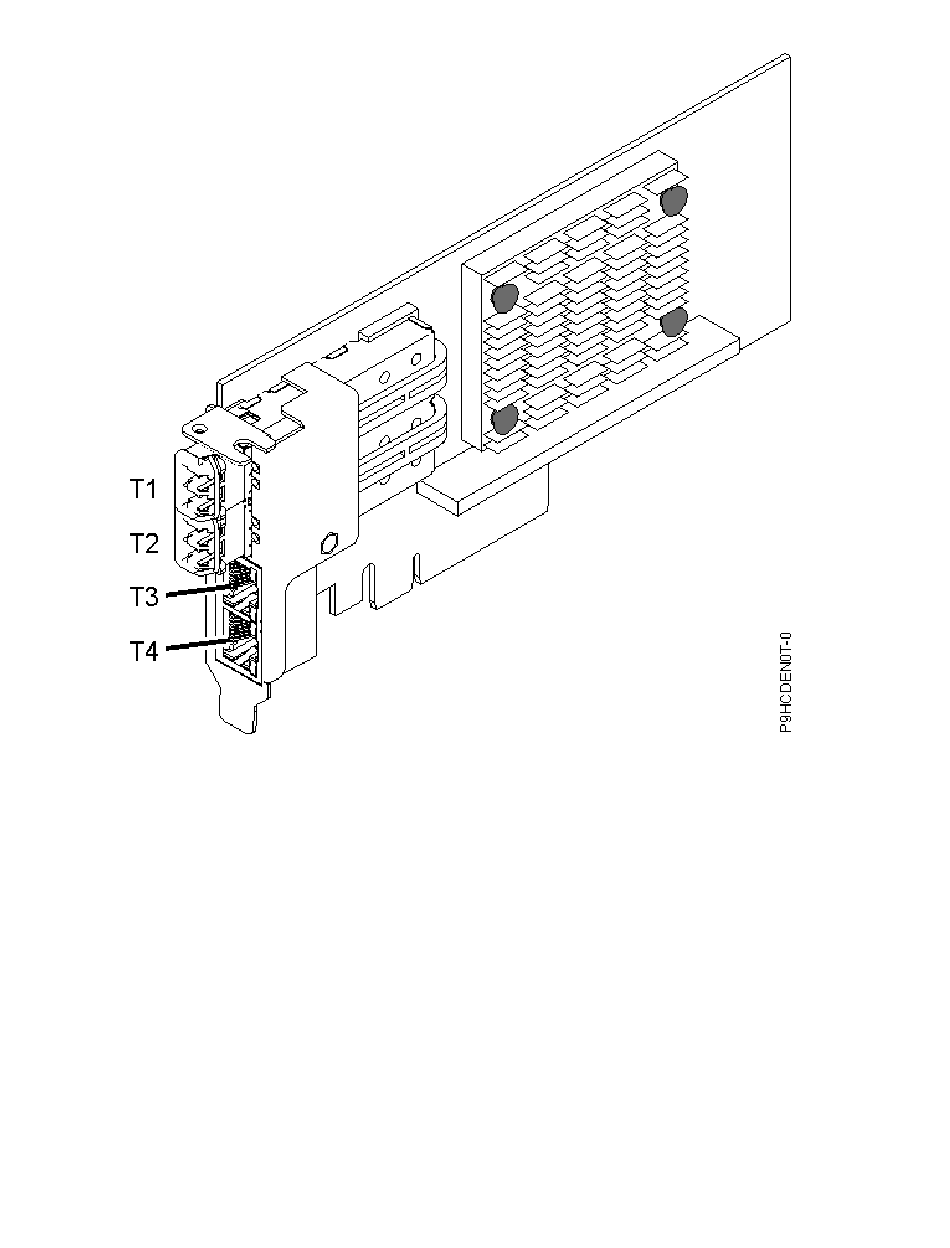

Figure 50. PCIe2 LP 4-port (10Gb+1GbE) SR / Copper SFP +RJ45 adapter (FC EN0T and FC EN0V)
Note: The ports are numbered from top to bottom of the adapter as T1, T2, and so on for the AIX and IBM
i operating systems.
Specifications
Item
Description
Adapter FRU number
00E2715
Regular-height tailstock part number: 00E2863
Low-profile tailstock part number: 00E2720
Wrap plug FRU number
12R9314 (SFP+ SR wrap plug)
10N7405 (1 Gb UTP wrap plug)
Note: These wrap plugs are not included with the card. 12R9314 (FC ECW0) is the only wrap plug that
can be purchased from IBM.
I/O bus architecture
PCIe2 x8
Installing and configuring the 9183-22X 73
