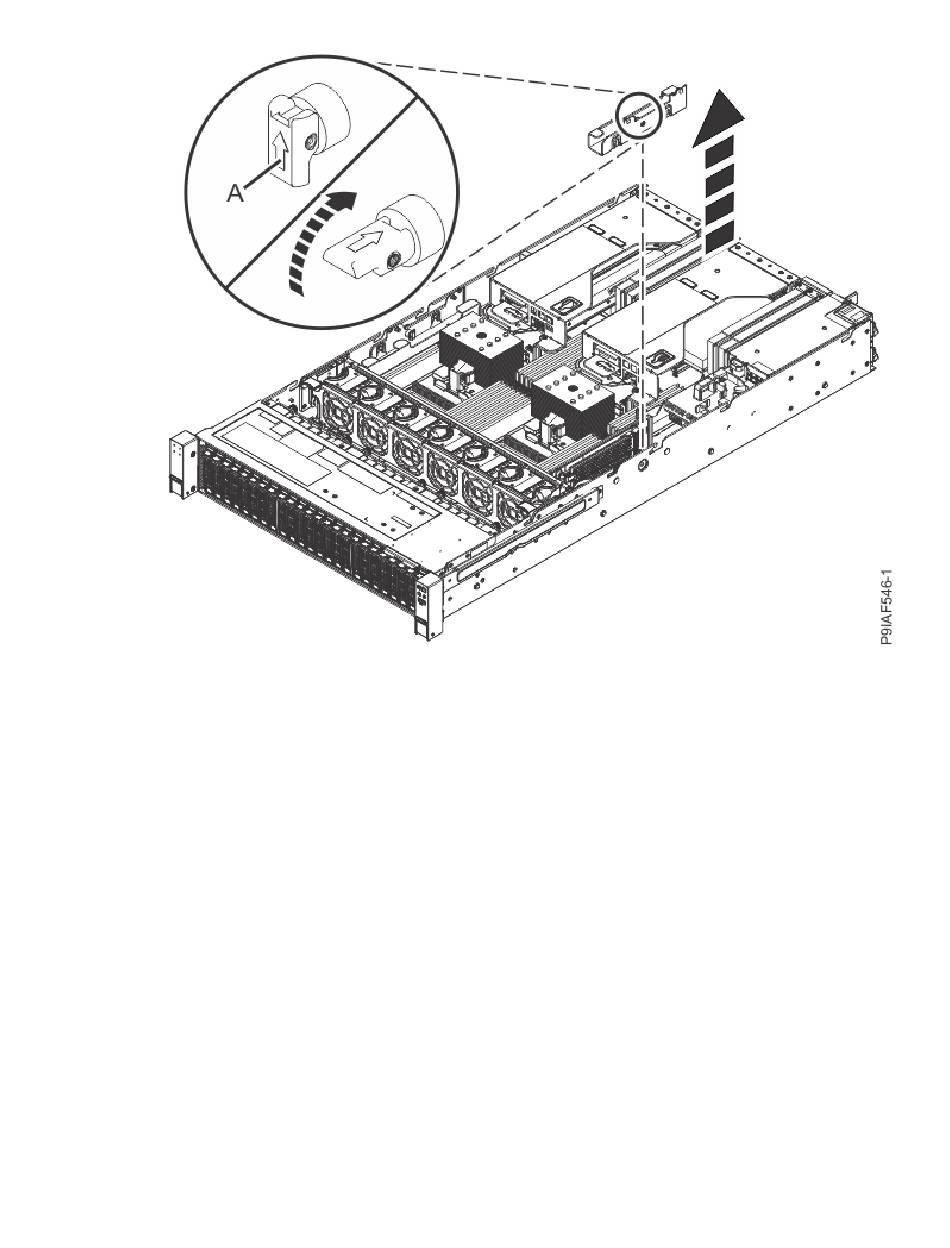

Figure 22. Retracting the retaining pin and removing the right cable holder
c) Lift the drive cable holder out of the system.
d) Remove the cables from the top of the power distribution board.
e) To remove the power distribution board, unlatch tab (A), unplug, and lift the power distribution
board from the system backplane as shown in the following figure.
Installing and configuring the 9183-22X 23
