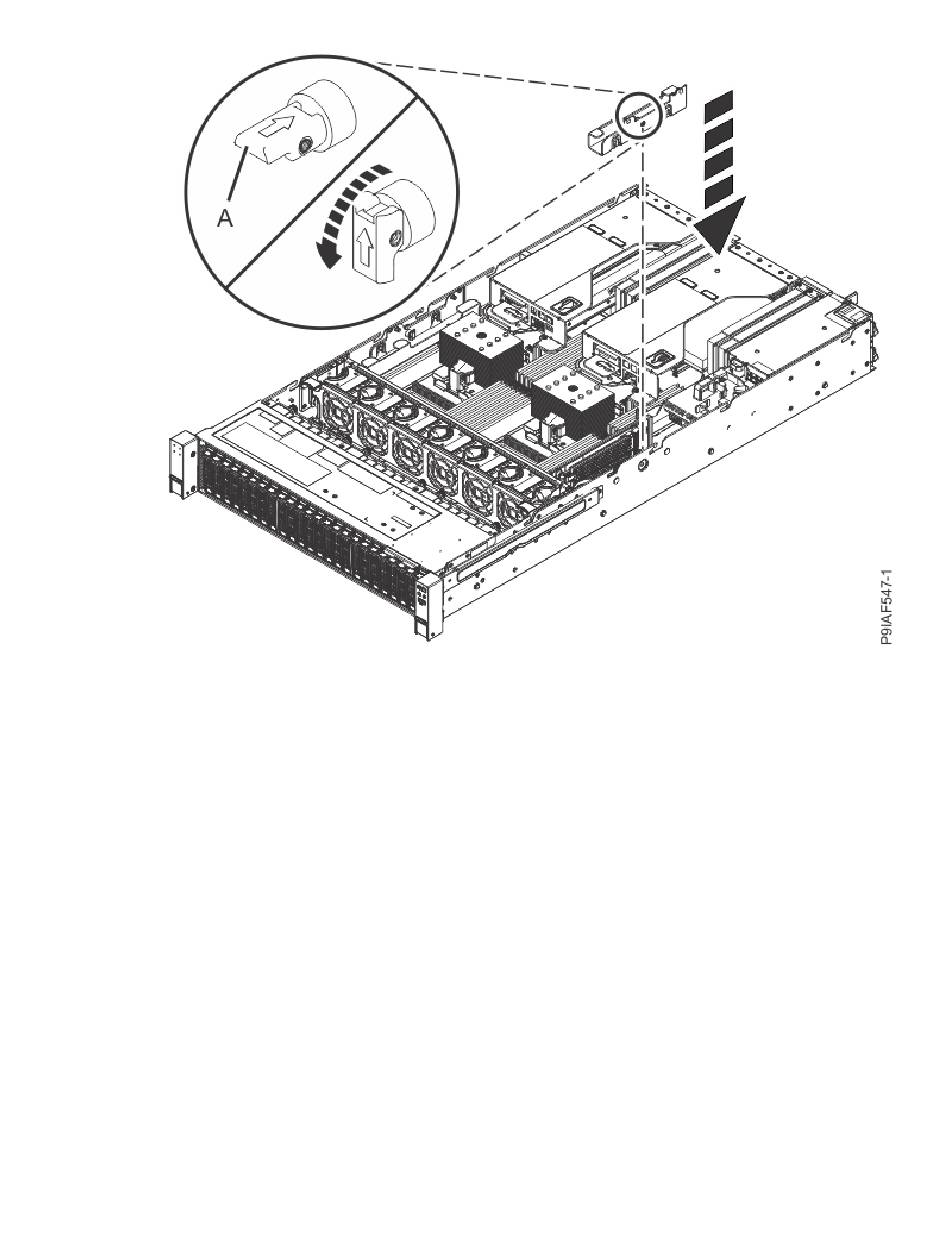

Figure 28. Replacing the right cable holder and resetting the retaining pin
c) Replace the drive cables into the drive cable holder.
11. Replace the air baffle (A) straight down into the chassis as shown in the following figure.
Ensure that the pins inside the system side walls align properly with the slots in the cover (B).
Installing and configuring the 9183-22X 29
