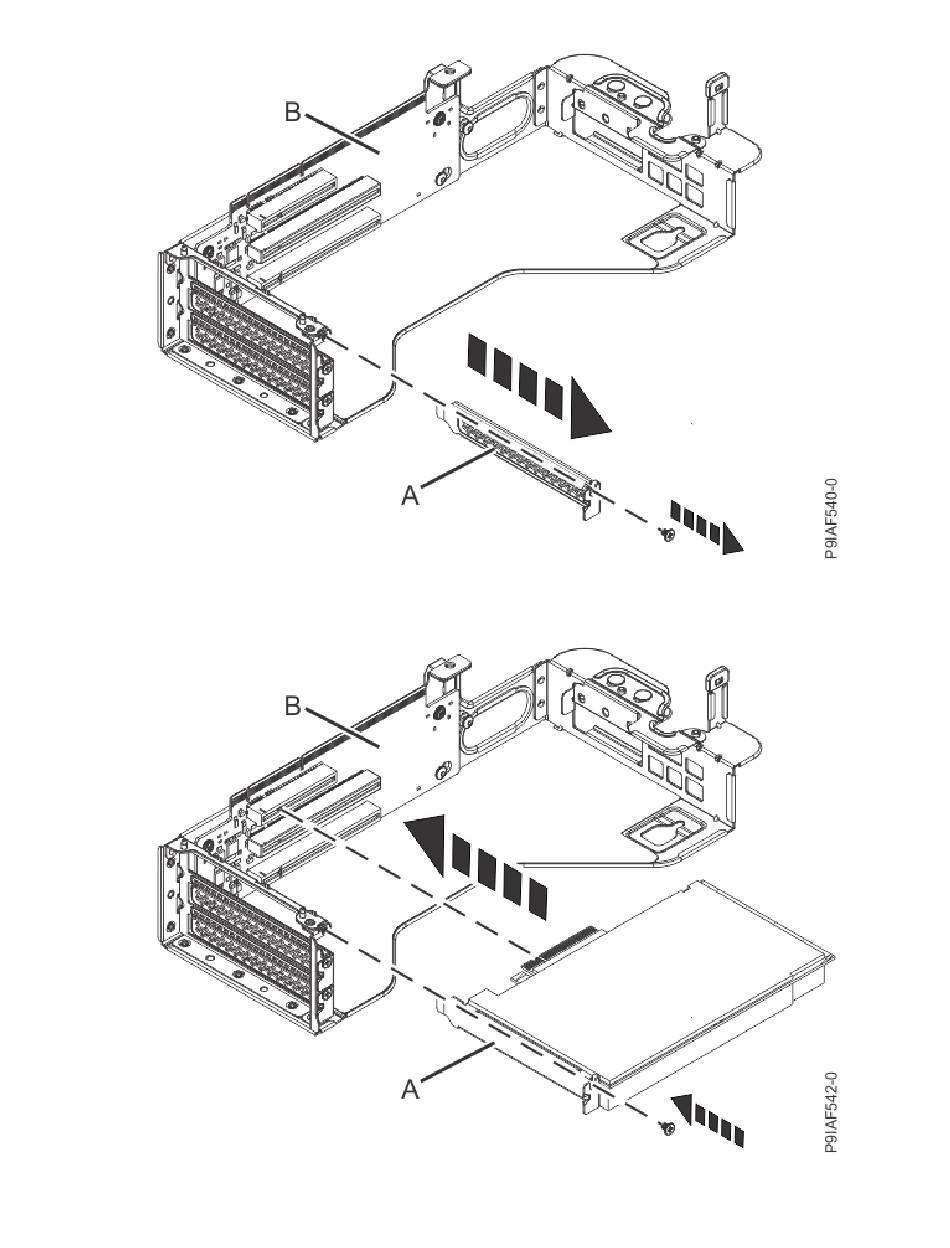

Figure 59. Removing a PCIe tailstock filler from a riser
c) Insert the PCIe adapter (A) into the proper slot in the PCIe riser (B) as shown in the following
figure. Replace the tailstock screw to secure the PCIe adapter to the PCIe riser.
Figure 60. Inserting a PCIe adapter into the PCIe riser
Installing and configuring the 9183-22X 87
