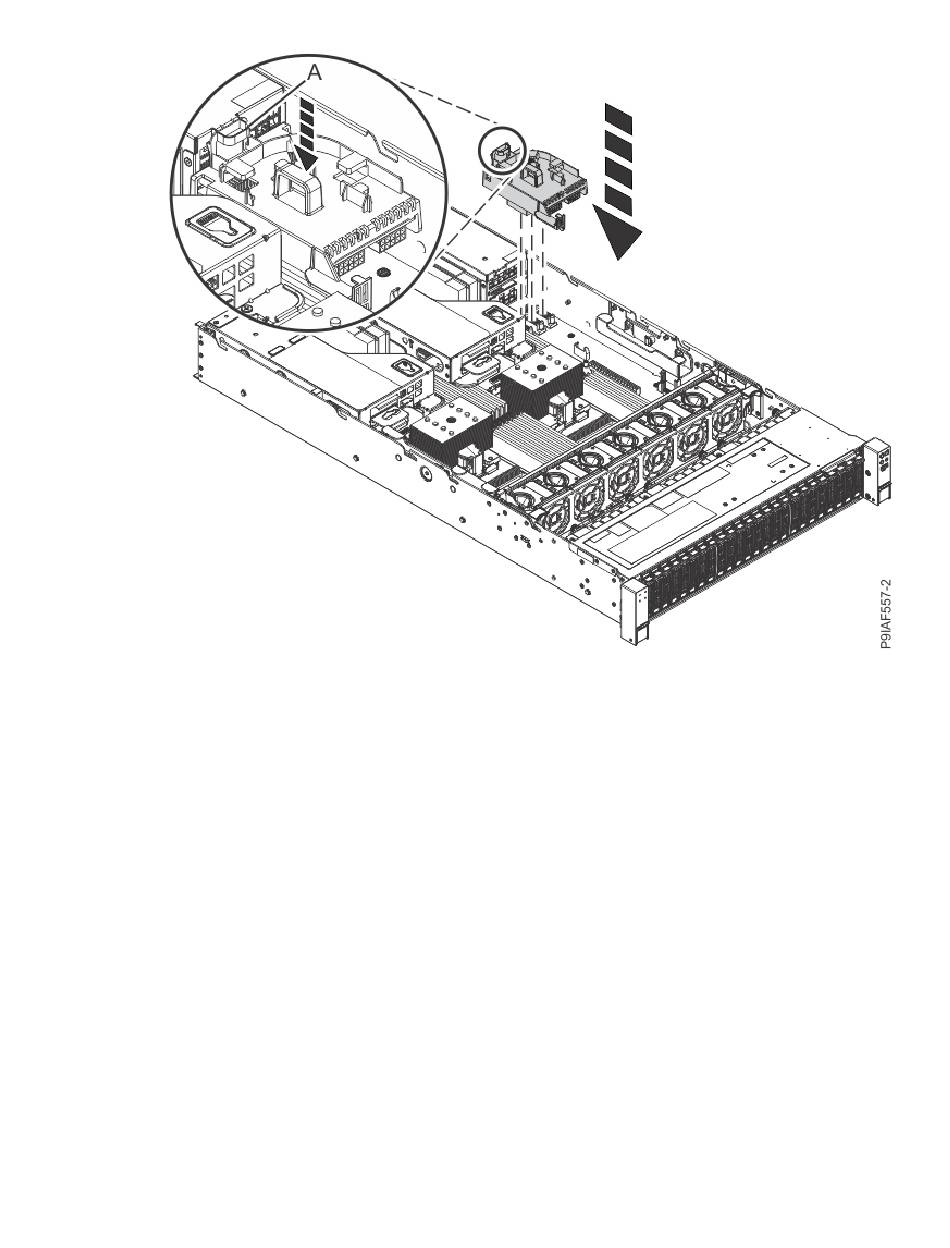

Figure 27. Replacing the power distribution board
b) Replace the cables into the top of the power distribution board.
a) Replace the drive cable holder in the system. Ensure that the alignment pins match the slots in the
holder.
b) Reset the retaining pin (A) to lock the holder in place as shown in the following figure.
28 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
