The PCIe3 x8 2-port Fibre Channel (32 Gb/s) Adapter is a PCI Express (PCIe) generation 3 (Gen3) x16
adapter. The adapter can be used in either a x8 or x16 PCIe slot in the system. This adapter is a high
performance is based on the Broadcom LPe32000-series PCIe host bus adapter (HBA). The adapter
provides two ports of 32 Gb Fibre Channel capability that uses SR optics. Each port can provide up to 32
Gb Fibre Channel functions simultaneously. Each port provides single initiator capability over a fiber link
or with NPIV, multiple initiator capabilities is provided. The ports are SFP+ and include an optical SR
transceiver. The ports have LC type connectors and use shortwave laser optics. The adapter operates at
link speeds of 4, 8, 16, and 32 Gbps and automatically negotiates to the highest speed possible. Each
port has two LED indicators that are on the bracket next to each connector. These LEDs communicate
boot status and give a visual indication of the operating state. The LEDs have five defined state; solid on,
solid off, slow flash, fast flash, and steady flashing. The slow flash rate is 1 Hz. The fast blink is 4 Hz, and
the flashing refers to an irregular on/off transition that reflects test progress. The operator must observe
the LED sequence for several seconds to ensure that the operating state is correctly identified.

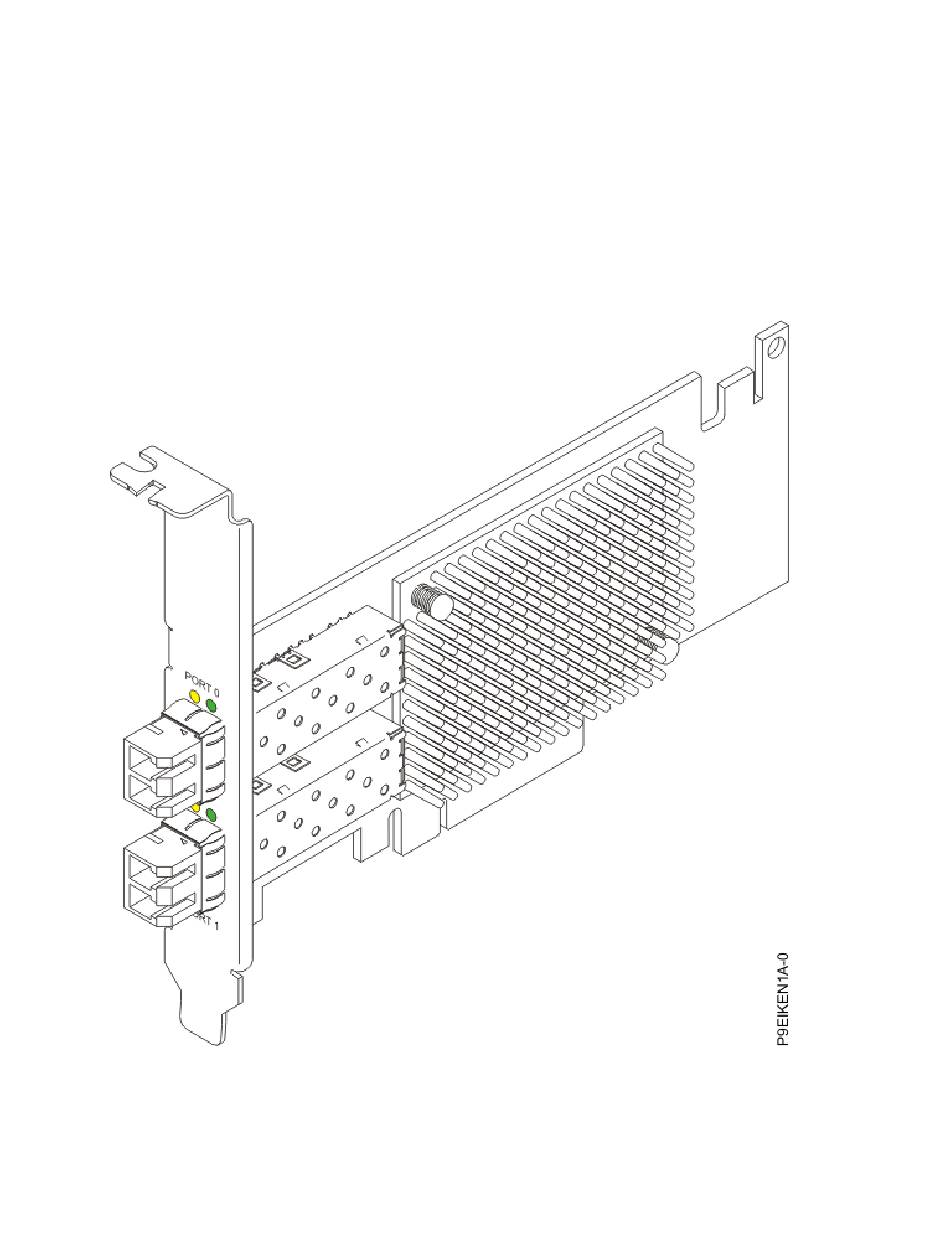

Figure 53. PCIe3 x8 2-port Fibre Channel (32 Gb/s)
Specifications
Item
Description
