• The adapter supports jumbo frames up to 9.6 KB.
• The adapter supports gigabit EtherChannel (GEC) with the existing software.
• The adapter supports TCP checksum offload transmission control protocol (TCP), user datagram
protocol (UDP), TCP segmentation Offload (TSO) for IPv4 and IPv6.
• Supports TCP segmentation or large send offload
• Supports EEPROM-SPI and single EEPROM

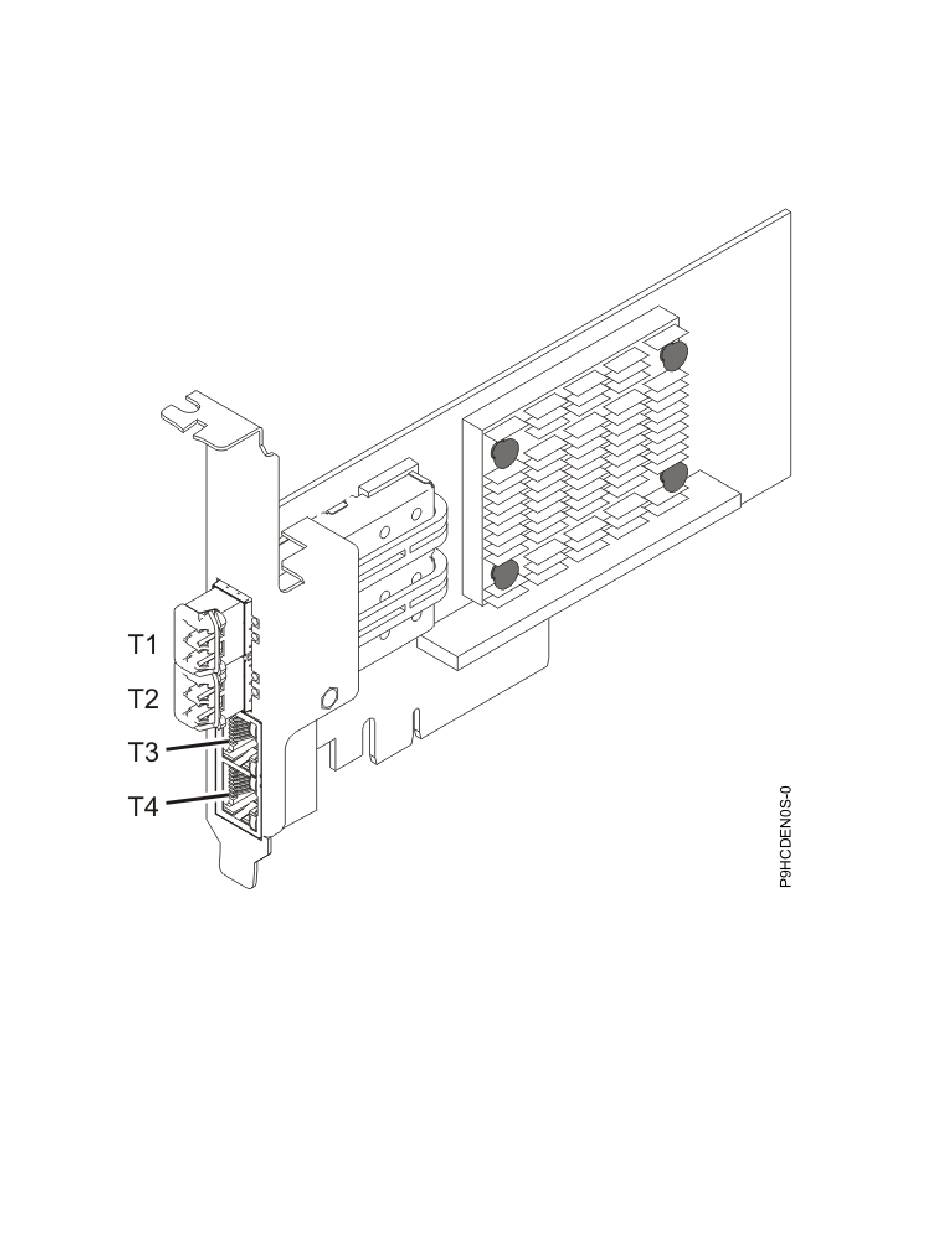

Figure 49. PCIe2 4-Port (10 Gb + 1 GbE) SR / Copper SFP +RJ45 adapter (FC EN0S and FC EN0U)
Note: The ports are numbered from top to bottom as T1, T2, and so on for the AIX and IBM i operating
systems.
