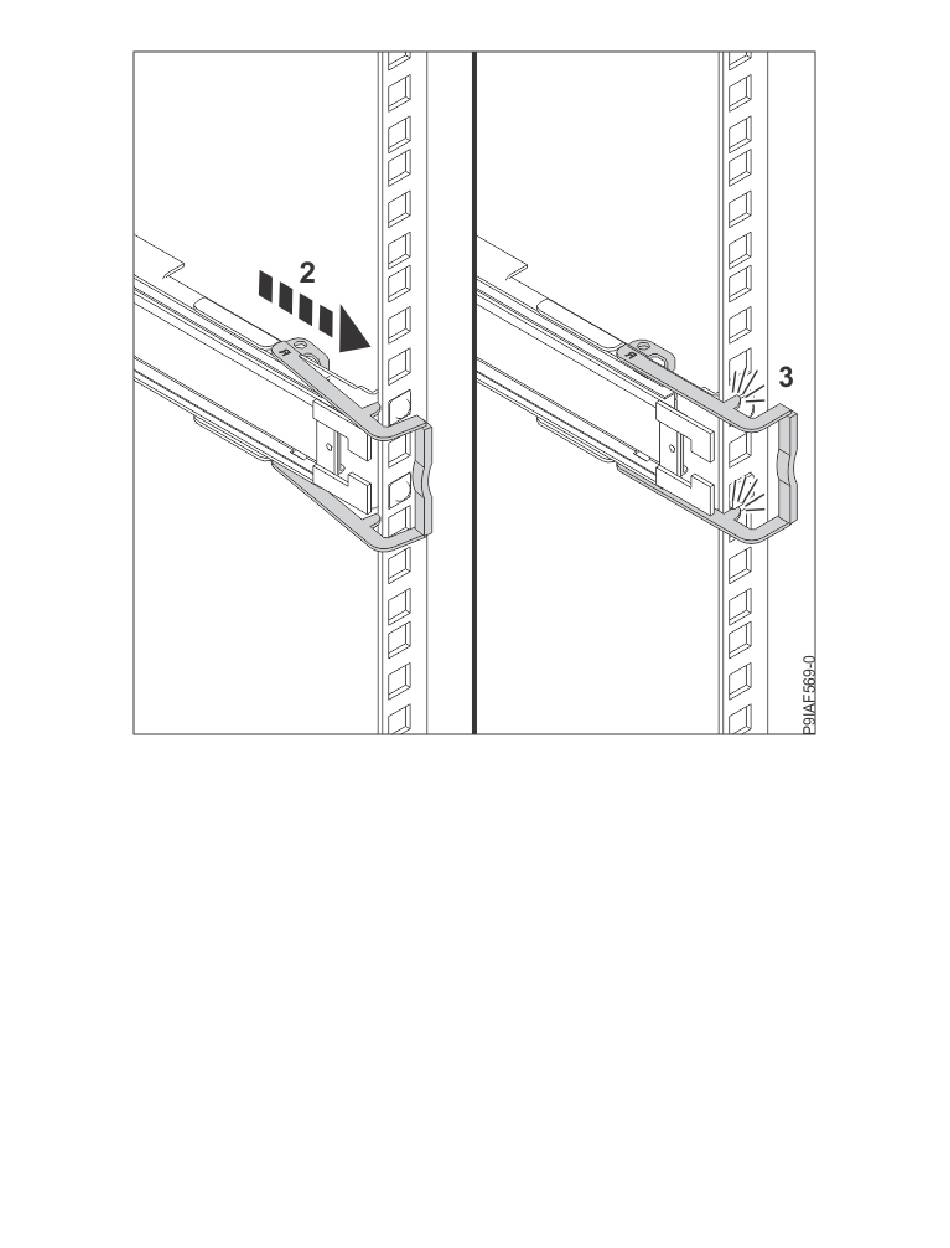

Figure 3. Pushing the rails into the rear rack flanges
3. Swivel the rail retention bracket out (1) and pull the front of the rail toward the front of the rack, until
the pins are aligned with the correct holes in the rack (2). Swivel the rail retention bracket so that it
locks onto the rack flange (3).
Installing and configuring the 9183-22X 5
