Table 4. Memory module feature codes
Supported feature codes (FC)
EM62
EM63
EM64
Memory module slot locations and population order
Memory modules must be placed in specific locations based on the number and size of memory modules
in the system. Use the following figure and table to determine where to place memory modules in the
9183-22X system.

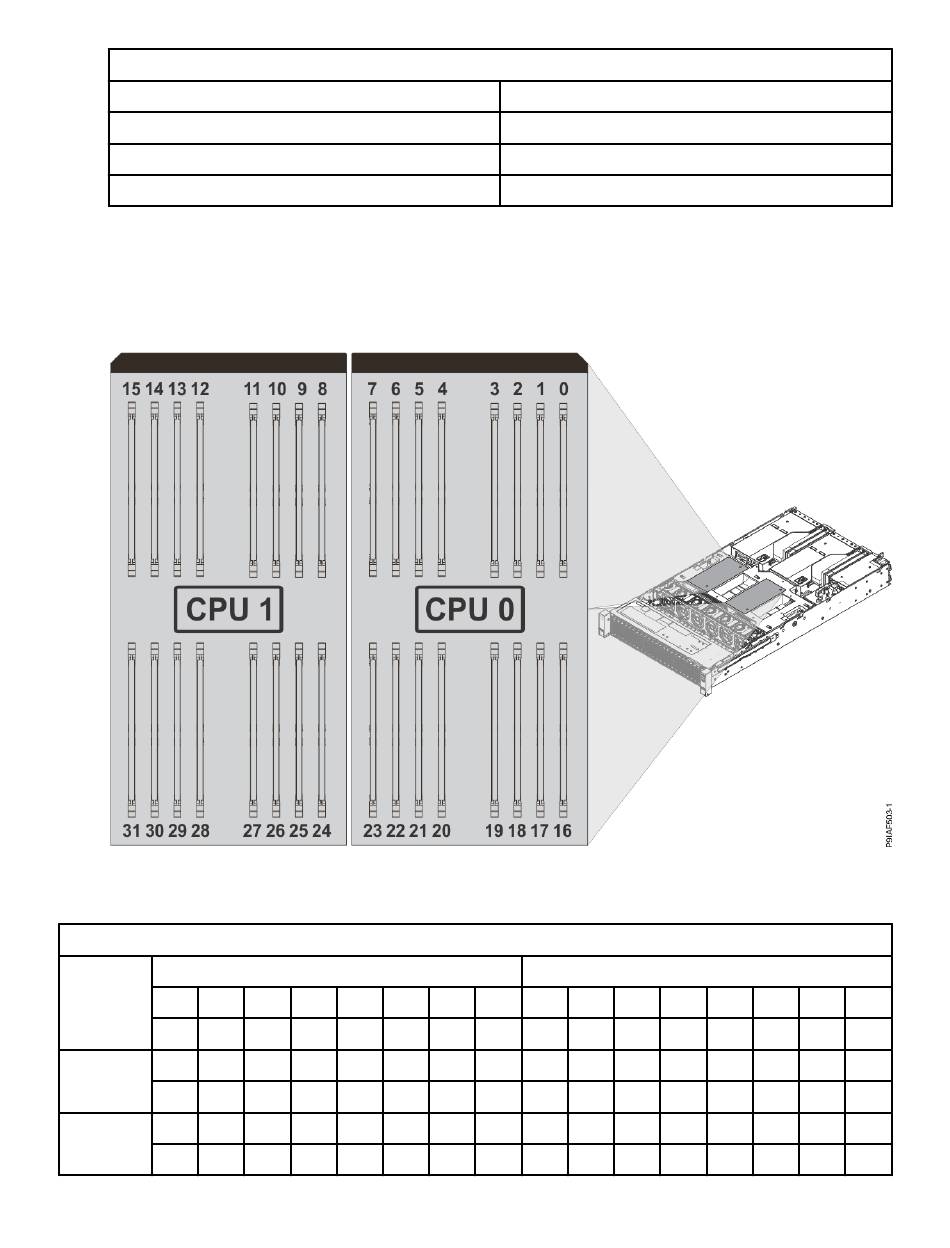

The following figure shows the locations for memory modules in the 9183-22X system.
Figure 17. Memory module slot locations
The following table shows the order in which memory modules must be placed in the 9183-22X system.
Table 5. Memory module population order. Memory module slot locations and number of DIMMs.
CPU 1 memory module slot locations
15 14
31 30
4 DIMMs
8 DIMMs
18 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
13 12 11 10
29 28 27 26
Y
Y
Y
Y Y
Size
16 GB
32 GB
64 GB
CPU 0 memory module slot locations
9 8 7 6
25 24 23 22
Y
5 4 3 2
21 20 19 18
Y
Y
Y
Y Y
1 0
17 16
Y
