Checking Read Data
The following steps show you how to verify that the ReadData Command is
working.

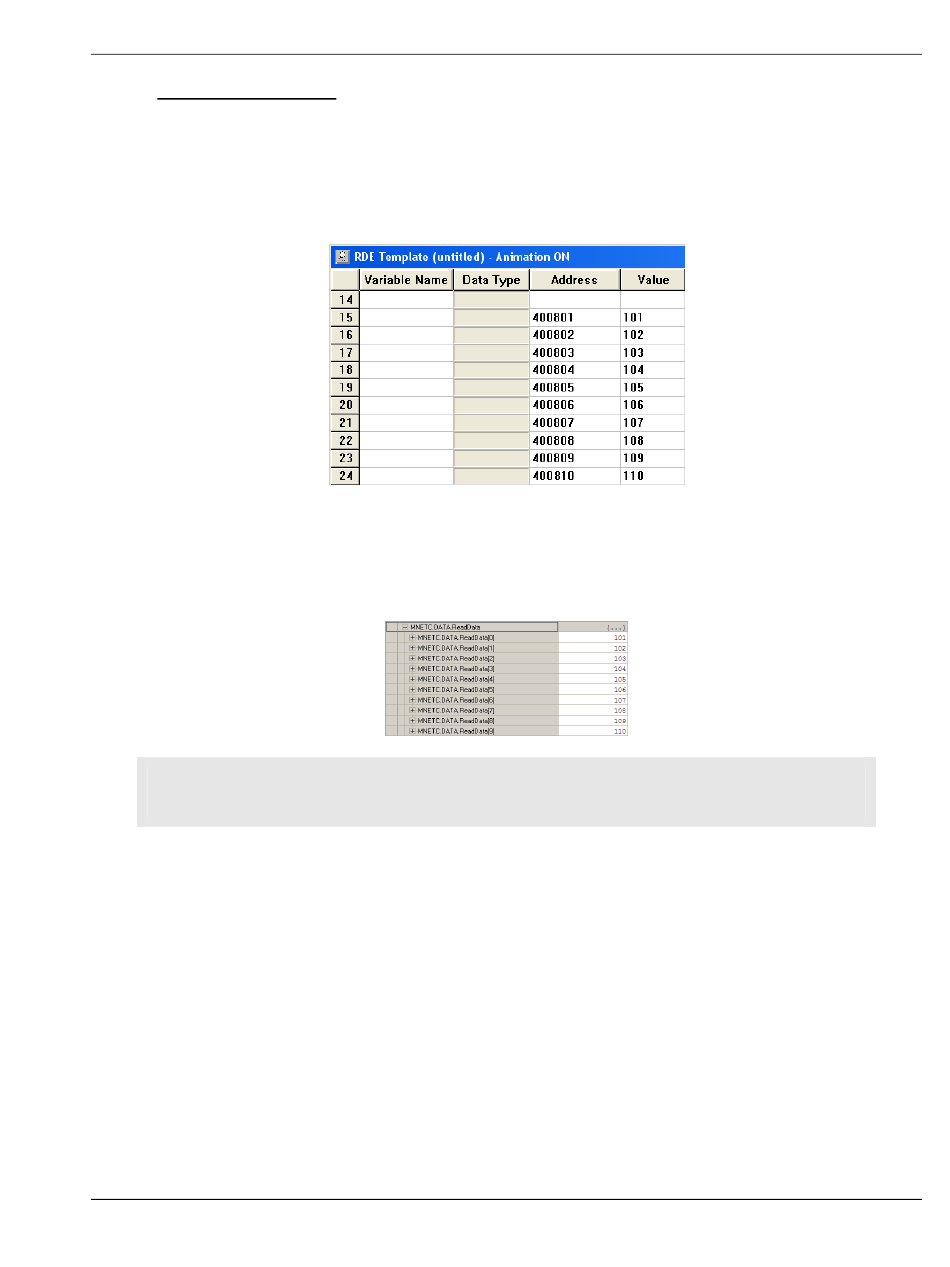

1 In Concept, navigate to the R
values in processor memory addresses from 400801 through 400810 as
shown in the following illustration.
This action populates the memory addresses in the Quantum processor that
the MVI56E-MNETC will attempt to retrieve with the ReadData Command.
2 In RSLogix 5000, the values in MNETC.DATA.R
should match the data you entered in Concept.
Tip: Repeat these tests, using different values each time, to verify that the same data appears in
the proper place in each processor.
