ProSoft Technology inRAx MVI56E-MNETC Setup Manual page 37

MVI56E-MNETC ♦ ControlLogix Platform
Modbus TCP/IP Multi Client Enhanced Communication Module

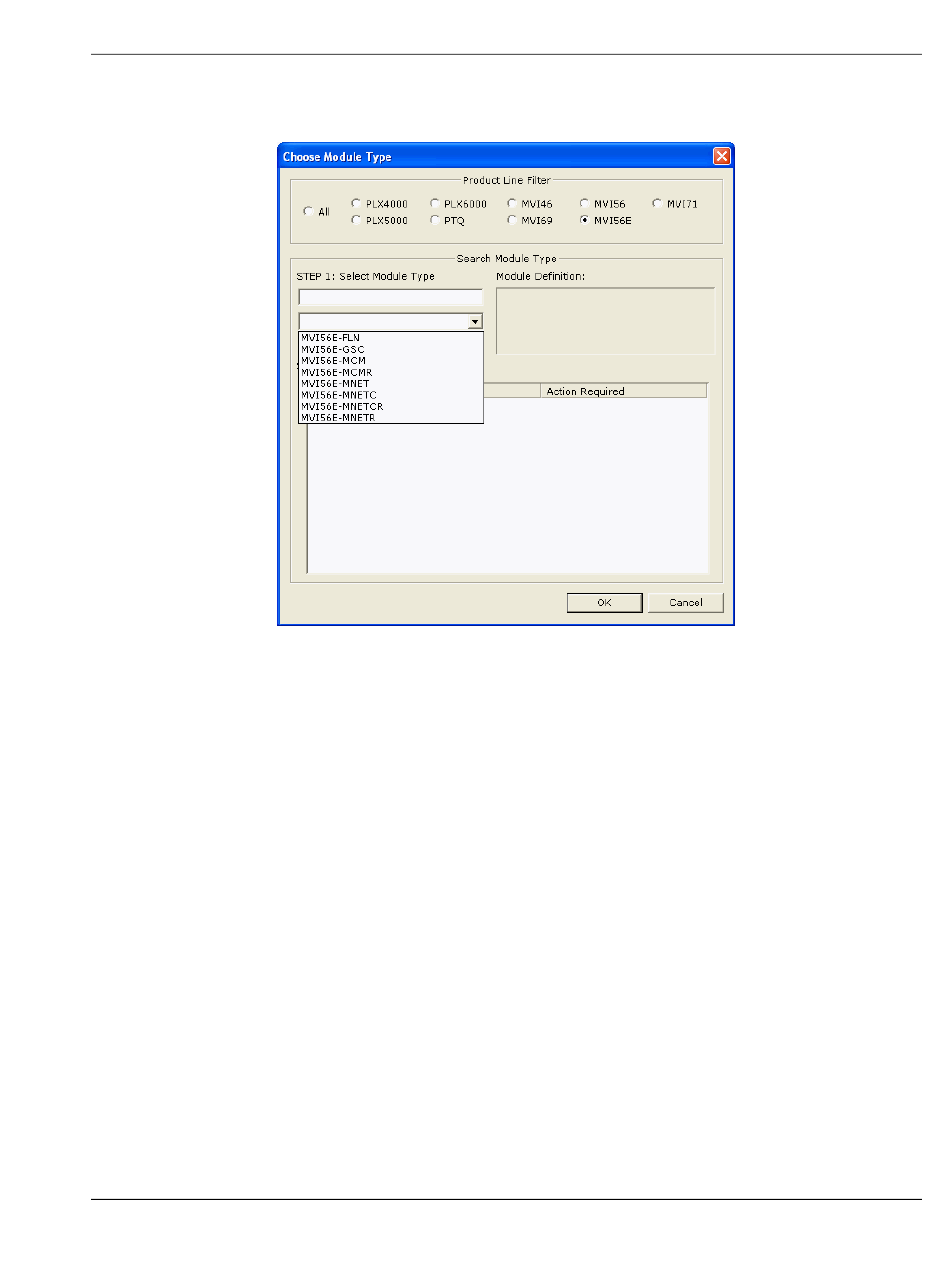

2 On the shortcut menu, select C
Choose Module Type dialog box.
3 In the Product Line Filter area of the dialog box, select MVI56E. In the Select
Module Type dropdown list, select MVI56E-MNETC, and then click OK to
save your settings and return to the ProSoft Configuration Builder window.
ProSoft Technology, Inc.
April 18, 2011
M T
HOOSE ODULE YPE
. This action opens the
Page 37 of 72
Procedures
Setup Guide
