Configuring the NOE Ethernet adapter for Modbus TCP/IP (Server)

The next part of this tutorial is to configure the remote Modbus TCP/IP Server.
For this example, the Modbus TCP/IP Server will be a NOE communication
adapter.
The IP Address for the Modbus TCP/IP Server must match the IP Address
settings for the MNET Client 0 Commands in ProSoft Configuration Builder.

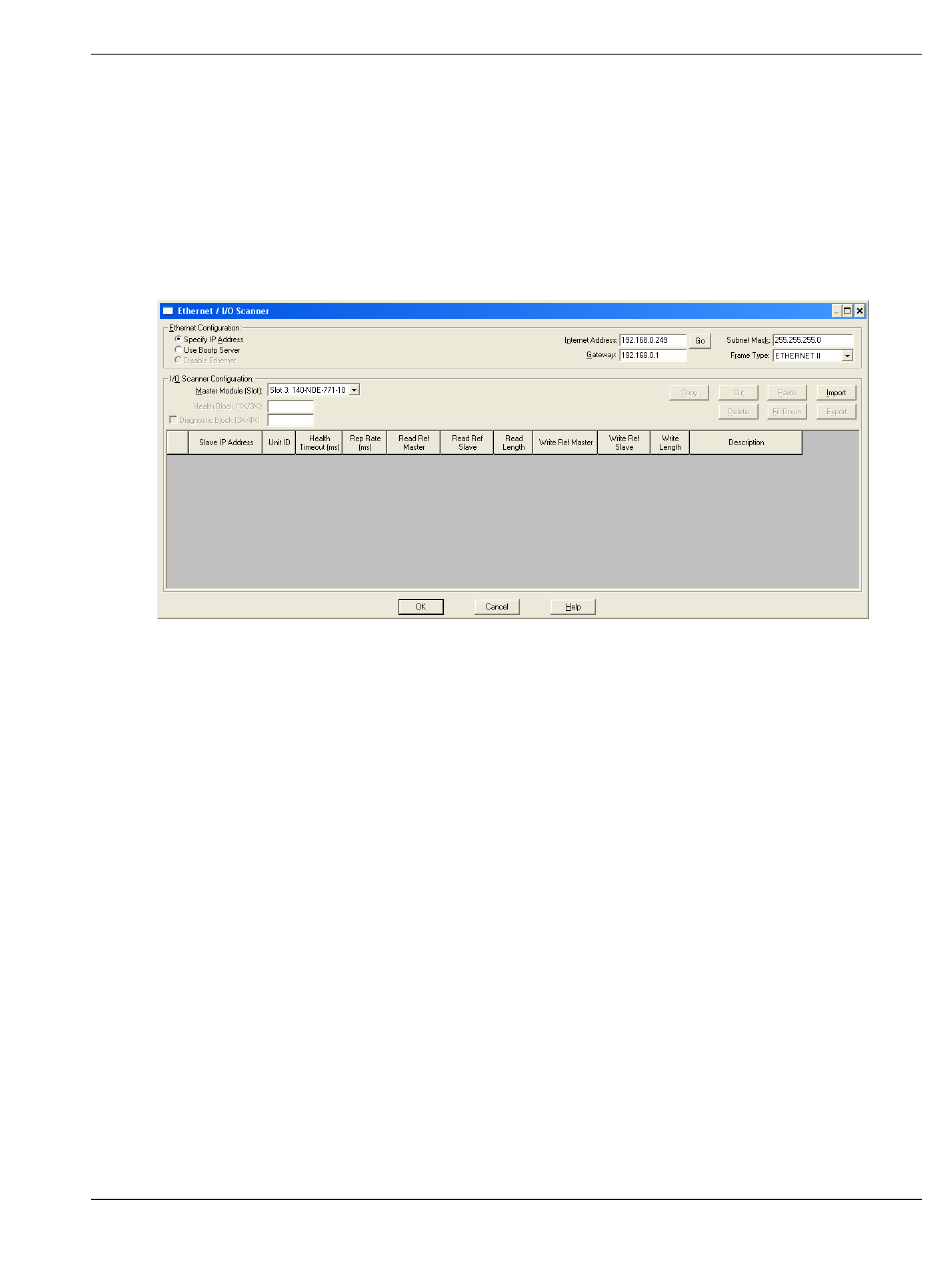

The following illustration shows the E
NOE card configured as a Modbus TCP/IP Server in Concept version 2.6.
