Procedures
Setup Guide
4.6.3 Uploading the Sample Configuration from the Module
The MVI56E-MNETC module contains a sample configuration file, with
configuration parameters that match the sample application in this Setup Guide.
To retrieve the sample configuration file, follow these steps.
1

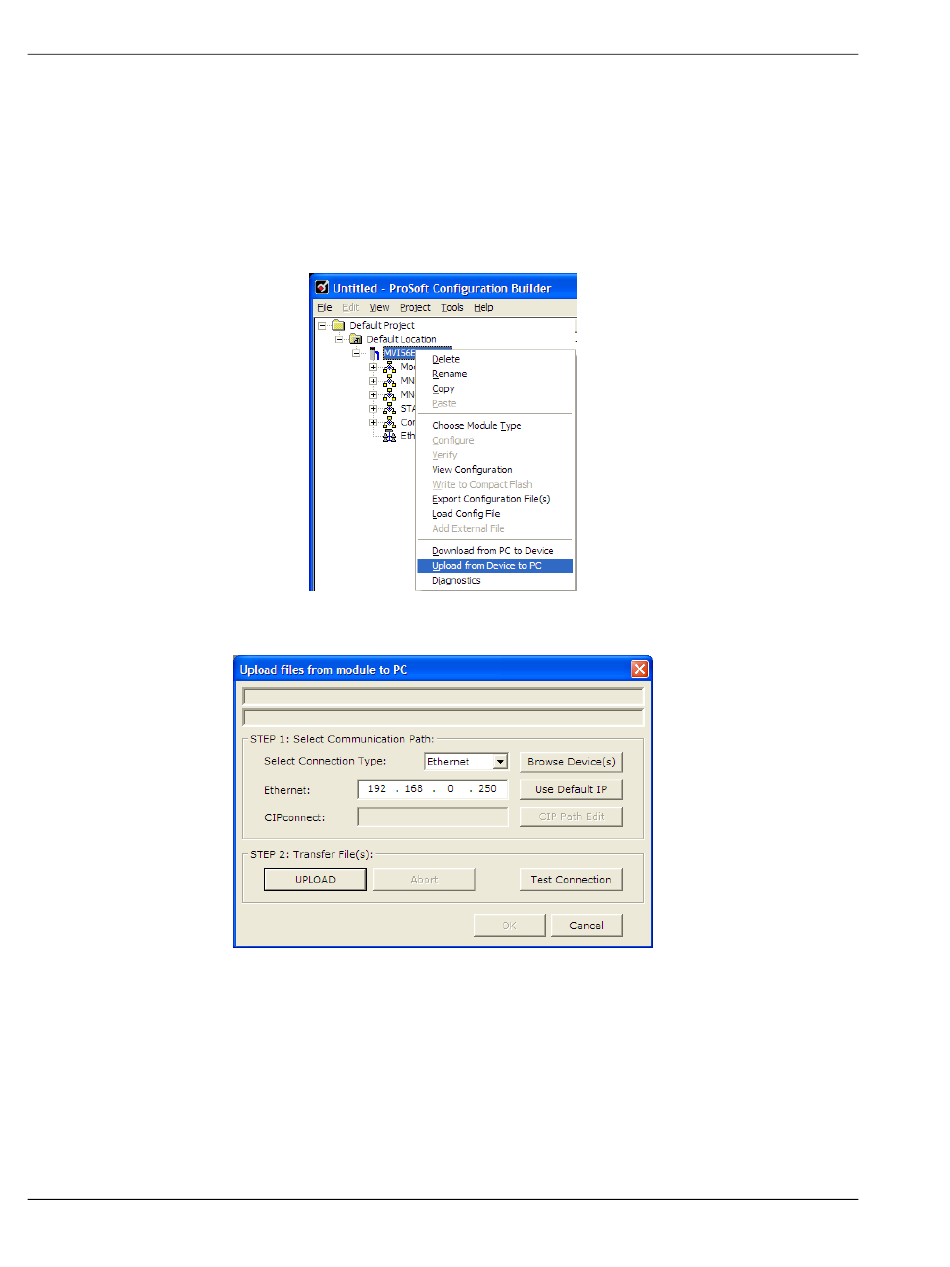

In ProSoft Configuration Builder, select the MVI56E-MNETC module, and
then click the right mouse button to open a shortcut menu. On the shortcut
menu, choose U
This action opens the Upload Files dialog box.
Page 38 of 72
Modbus TCP/IP Multi Client Enhanced Communication Module
D
PLOAD FROM
EVICE TO
MVI56E-MNETC ♦ ControlLogix Platform
PC.
ProSoft Technology, Inc.
April 18, 2011
