MVI56E-MNETC ♦ ControlLogix Platform
Modbus TCP/IP Multi Client Enhanced Communication Module
Configuring the Modbus Client Read Command
The Modbus Read Command reads 10 words of data from the Quantum
processor (Modbus Slave) and transfers it to the MVI56E-MNETC module's
internal database. The following table describes the relationship between
memory addresses in the Modbus Master (MVI56E-MNETC) and the Modbus
Slave (Quantum processor).
MVI56E-MNETC Database Address
1000
1001
1002
1003
1004
1005
1006
1007
1008
1009

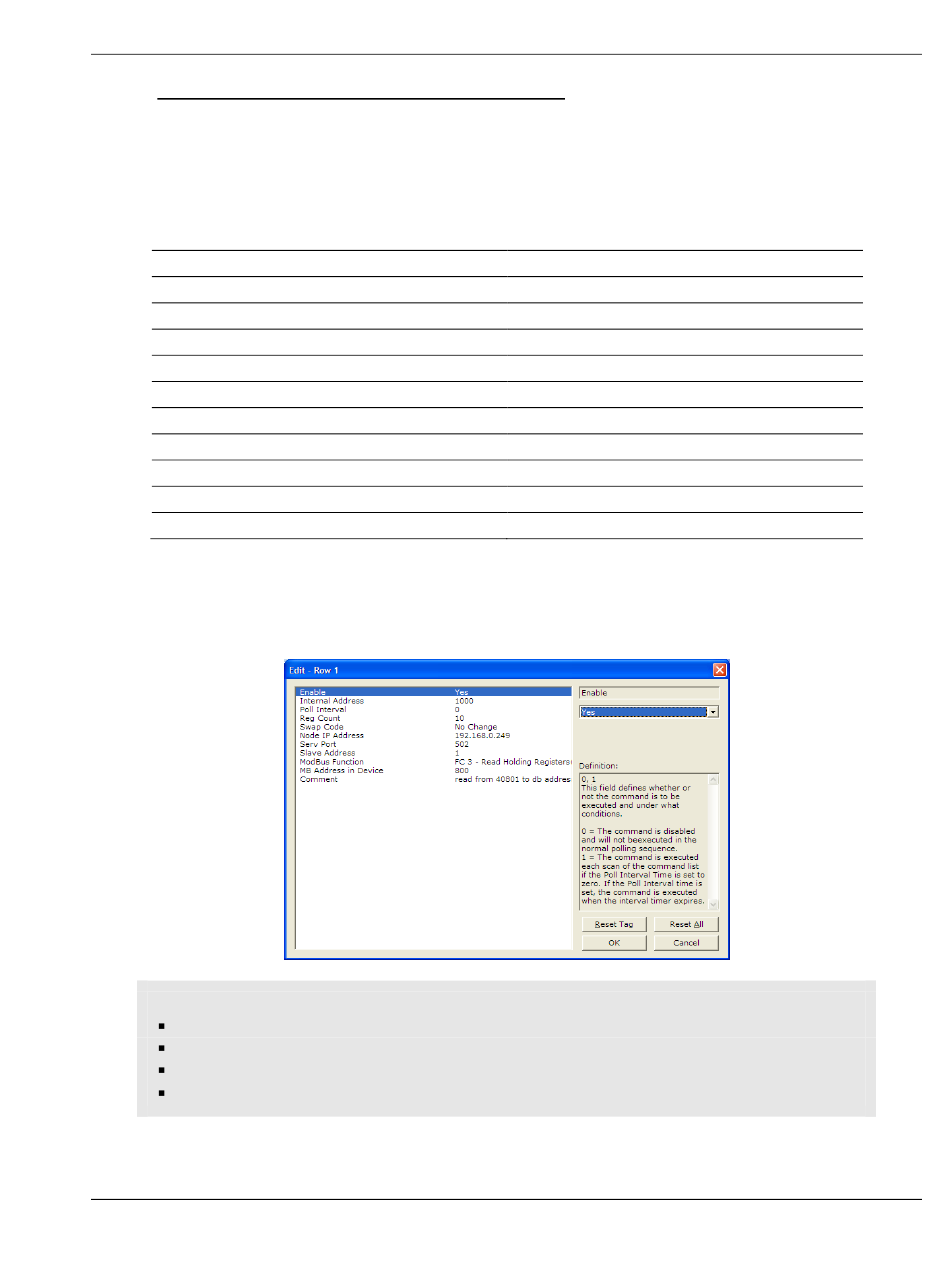

In the sample configuration, the Modbus Read Command is present, but
disabled. To enable the command, change the E
shown in the following illustration.
Notes:
FC 3 represents Modbus Function Code 3, the command code to Read Holding Registers
The DevAddress parameter is 0-based so 800 = 400801, 801 = 400802, and so on.
The Enable code must be set to 1 to enable the command (0 = disable)
The destination Slave node address must be set as 1 (Node parameter)
ProSoft Technology, Inc.
April 18, 2011
Quantum Memory Address
400801
400802
400803
400804
400805
400806
400807
400808
400809
400810
field from No to Y
NABLE
Procedures
Setup Guide
, as
ES
