Procedures
Setup Guide
Checking Write Data
The following steps show you how to verify that the WriteData Command is
working.
1 In RSLogix, navigate to the processor controller tags
MNETC.DATA.W

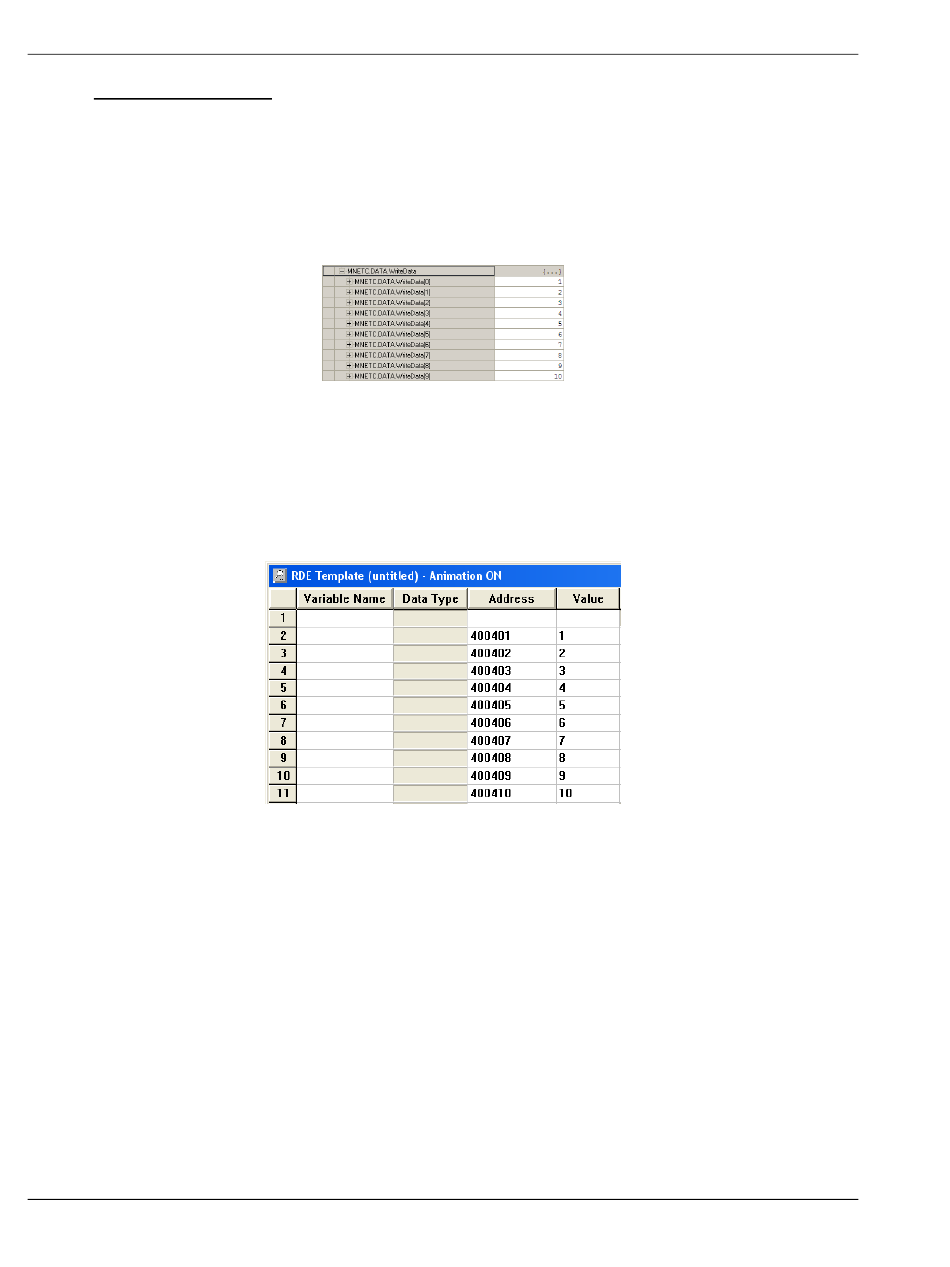

2 For words [0] through [9], enter the numbers shown in the following
illustration.
This action sends the values you entered to the M
MVI56E-MNETC, and then to the Quantum processor, where you will be able
to see the data in Concept.
3 In Concept, navigate to the R
processor memory addresses from 400401 through 400410. The data should
match the data you sent from RSLogix 5000.
Page 56 of 72
Modbus TCP/IP Multi Client Enhanced Communication Module
D [0] through MNETC.DATA.W
RITE ATA
EFERENCE
MVI56E-MNETC ♦ ControlLogix Platform
RITE
C
ODBUS LIENT
D E to monitor the
ATA DITOR
ProSoft Technology, Inc.
D [9].
ATA
0 on the
