Procedures
Setup Guide

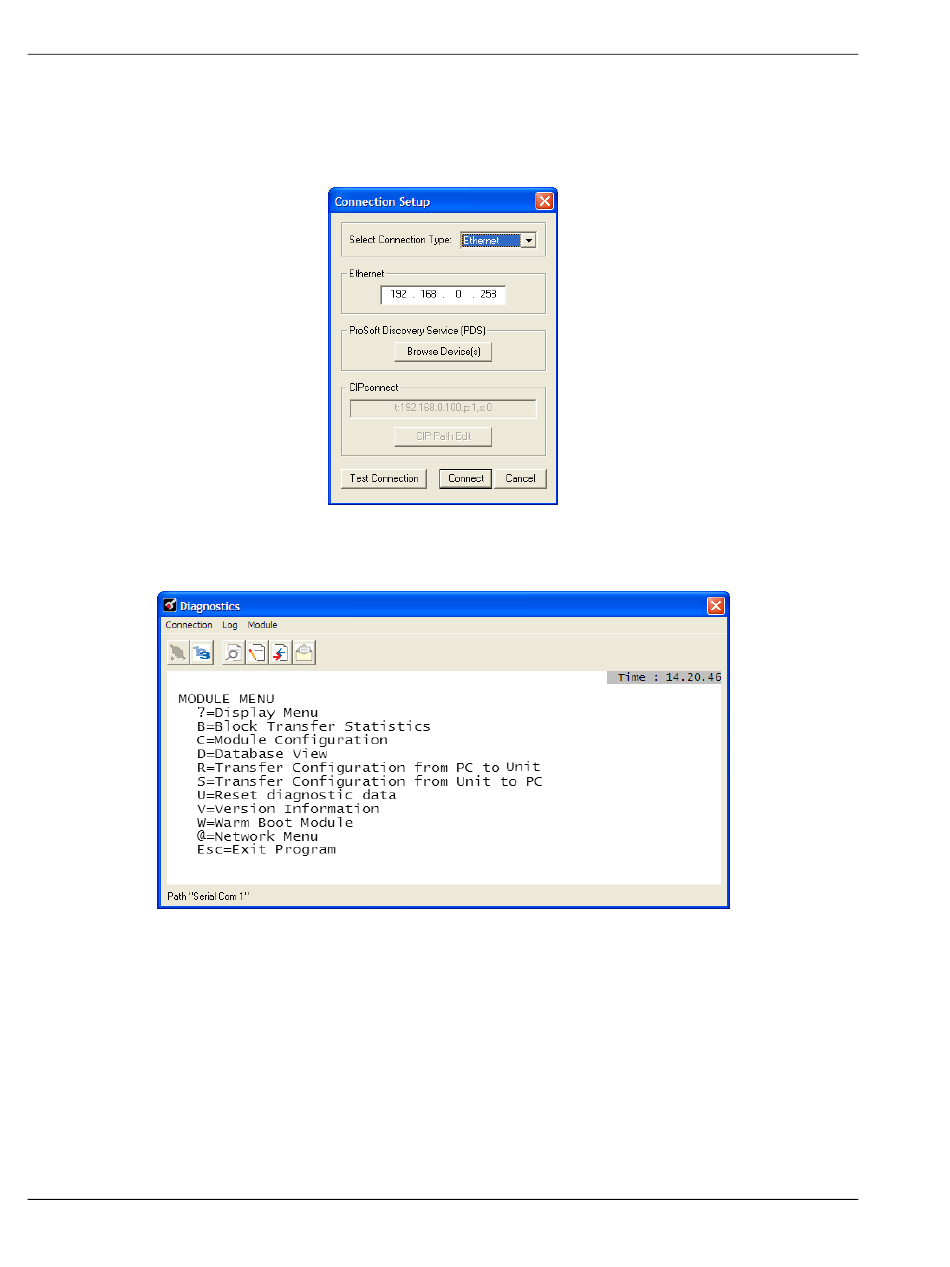

6 Close the ProSoft Discovery Service window. Enter the temporary IP in the
Ethernet address field of the Connection Setup dialog box, then click the
T C
EST ONNECTION
current settings.
7 If the Test Connection is successful, click C
will display in the Diagnostics window.
Page 46 of 72
Modbus TCP/IP Multi Client Enhanced Communication Module
button to verify that the module is accessible with the
MVI56E-MNETC ♦ ControlLogix Platform
. The Diagnostics menu
ONNECT
