MVI56E-MNETC ♦ ControlLogix Platform
Modbus TCP/IP Multi Client Enhanced Communication Module
4.11 Verifying Communication
There are several ways to verify that the MVI56E-MNETC module is
communicating with the processor and with the Modbus TCP/IP Client network.
You can:
View Exchanged Data
View the Module Status in the RSLogix 5000 Controller Tags
View the LED Status Indicators
4.11.1 Viewing Exchanged Data

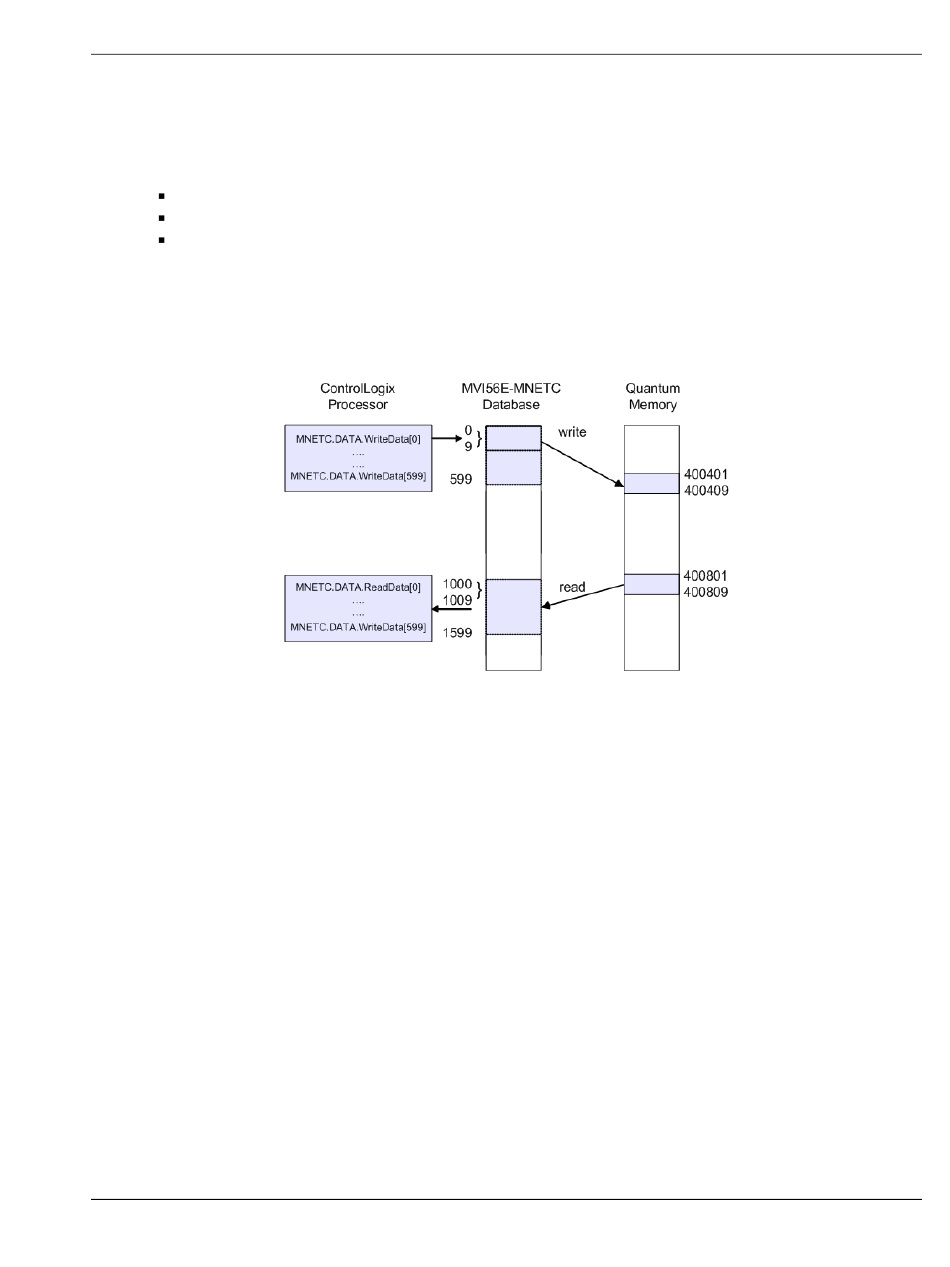

The following illustration describes the source and destination for the data
exchanged by the two Modbus TCP/IP Client Commands.
ProSoft Technology, Inc.
April 18, 2011
Procedures
Setup Guide
Page 55 of 72
