Downloading the Sample Program to the Processor

Note: The key switch on the front of the ControlLogix processor must be in the REM or PROG
position.
1 If you are not already online with the processor, open the Communications
menu, and then choose D
communication with the processor. You do not have to download through the
processor's serial port, as shown here. You may download through any
available network connection.

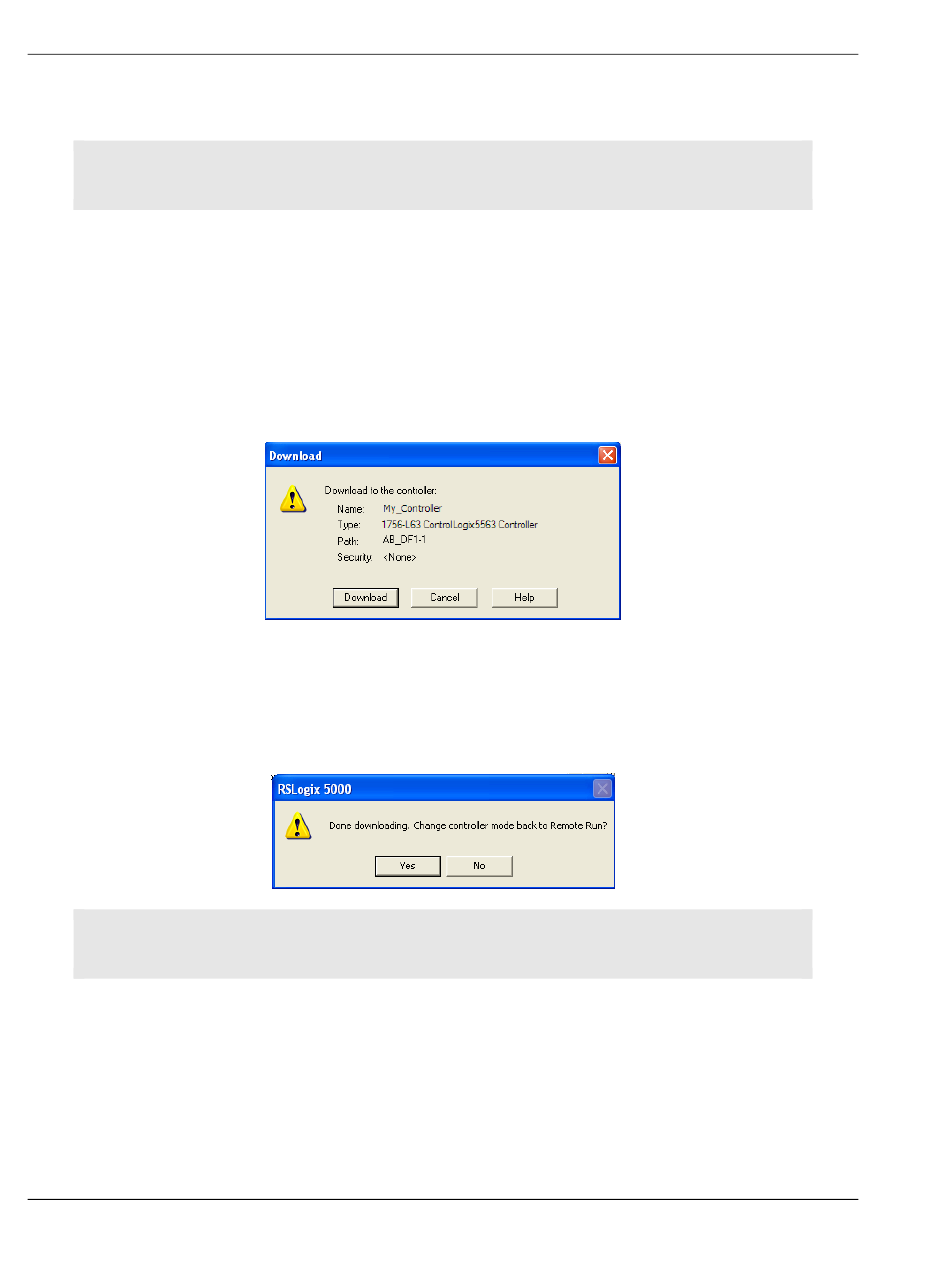

2 When communication is established, RSLogix 5000 will open a confirmation
dialog box. Click the D
processor.
3 RSLogix 5000 will compile the program and transfer it to the processor. This
process may take a few minutes.
4 When the download is complete, RSLogix 5000 will open another
confirmation dialog box. If the key switch is in the REM position, click OK to
switch the processor from PROGRAM mode to RUN mode.
Note: If you receive an error message during these steps, refer to your RSLogix documentation to
interpret and correct the error.
Page 34 of 72
Modbus TCP/IP Multi Client Enhanced Communication Module
. RSLogix 5000 will establish
OWNLOAD
button to transfer the sample program to the
OWNLOAD
