Using ProSoft Configuration Builder Software

ProSoft Configuration Builder (PCB) provides a quick and easy way to manage
gateway configuration files customized to meet your application needs. PCB is
not only a powerful solution for new configuration files, but also allows you to
import information from previously installed (known working) configurations to
new projects.
Note: During startup and initialization, the MVI56E-MNETC module receives its protocol and
backplane configuration information from the installed Personality Module (Compact Flash). Use
ProSoft Configuration Builder to configure module settings and to download changes to the
Personality Module.

4.6.1 Installing ProSoft Configuration Builder

To install ProSoft Configuration Builder from the CD-ROM
1 Insert the ProSoft Solutions CD-ROM into the CD drive of your PC. Wait for
the startup screen to appear.

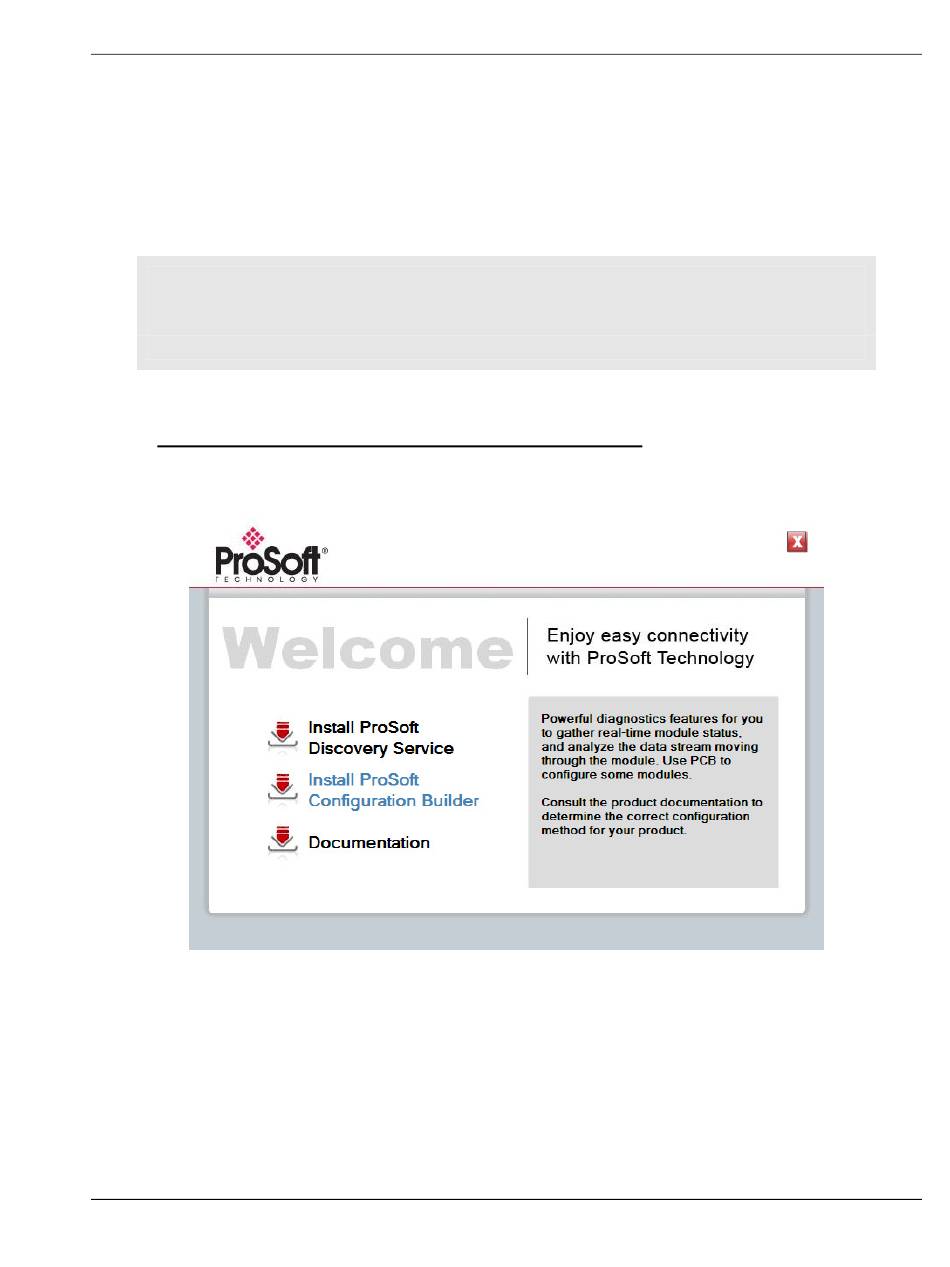

2 On the startup screen, click I
action starts the installation wizard for ProSoft Configuration Builder.
3 Click N
EXT
page of the wizard.
