Appendix E: Configuring the IT6I to be Used with a 1769-AND DeviceNet Adapter
Section E.5
Configuring
the 1769sc-IT6I

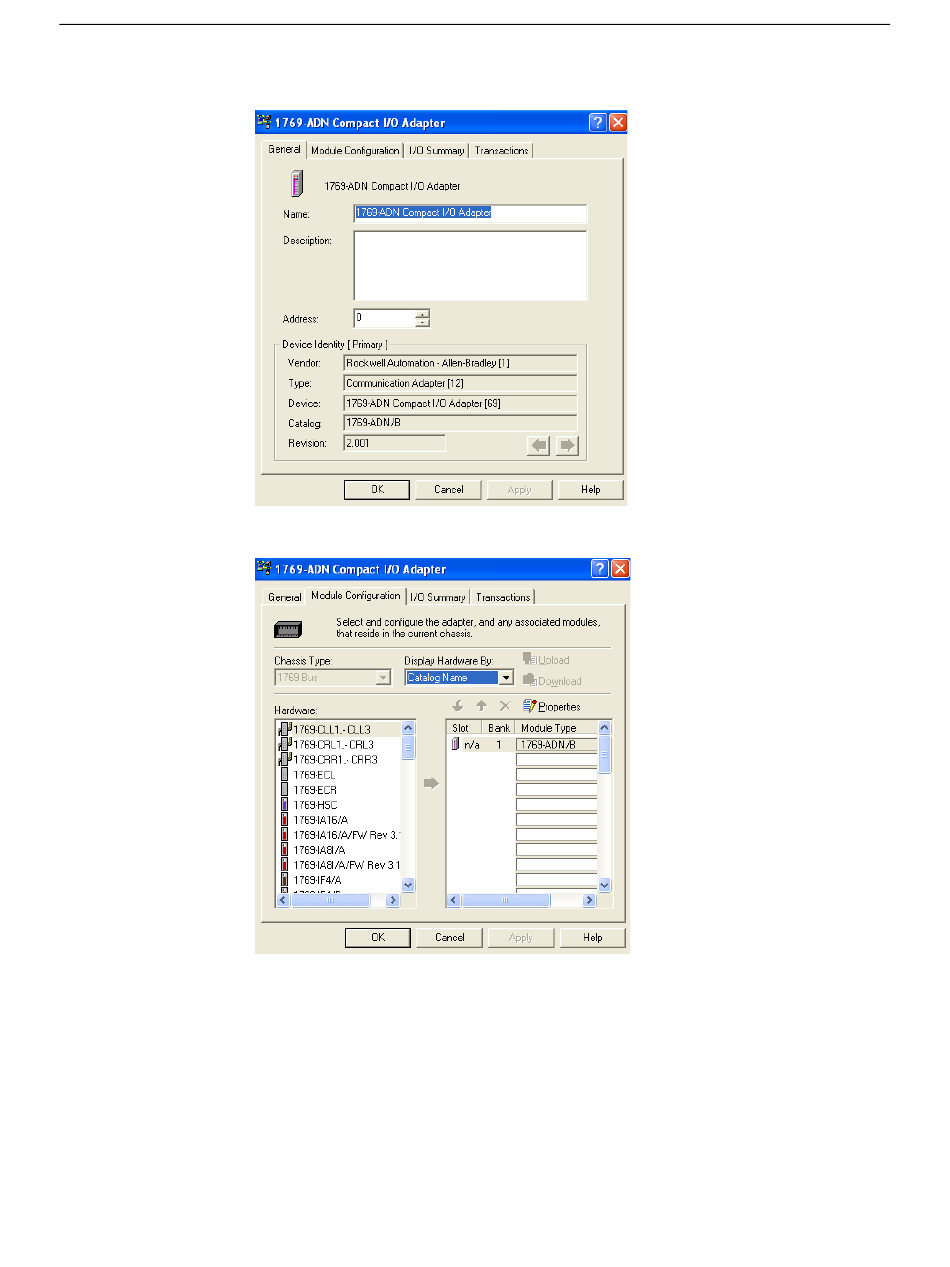

To configure I/O for the adapter, double-click on the adapter that you just placed
on the network, and the following screen appears:
At this point, you may modify the adapters DeviceNet node address, if desired.
Next, click on the Module Configuration tab. The following screen appears:
The 1769-ADN appears in slot 0. Your I/O modules, power supplies, end cap
and interconnect cables must be entered in the proper order, following the 1769
I/O rules contained in the 1769-ADN user's manual. For simplicity sake, we
placed the 1769sc-IT6I in slot 1 to show how it is configured. As a minimum, a
power supply and end cap must also be placed after the 1769sc-IT6I module. To
add the 1769sc-IT6I to bank 1, double-click on the first empty slot after the
