Appendix D: Configuring the IT6I for CompactLogix Controllers in RSLogix 5000

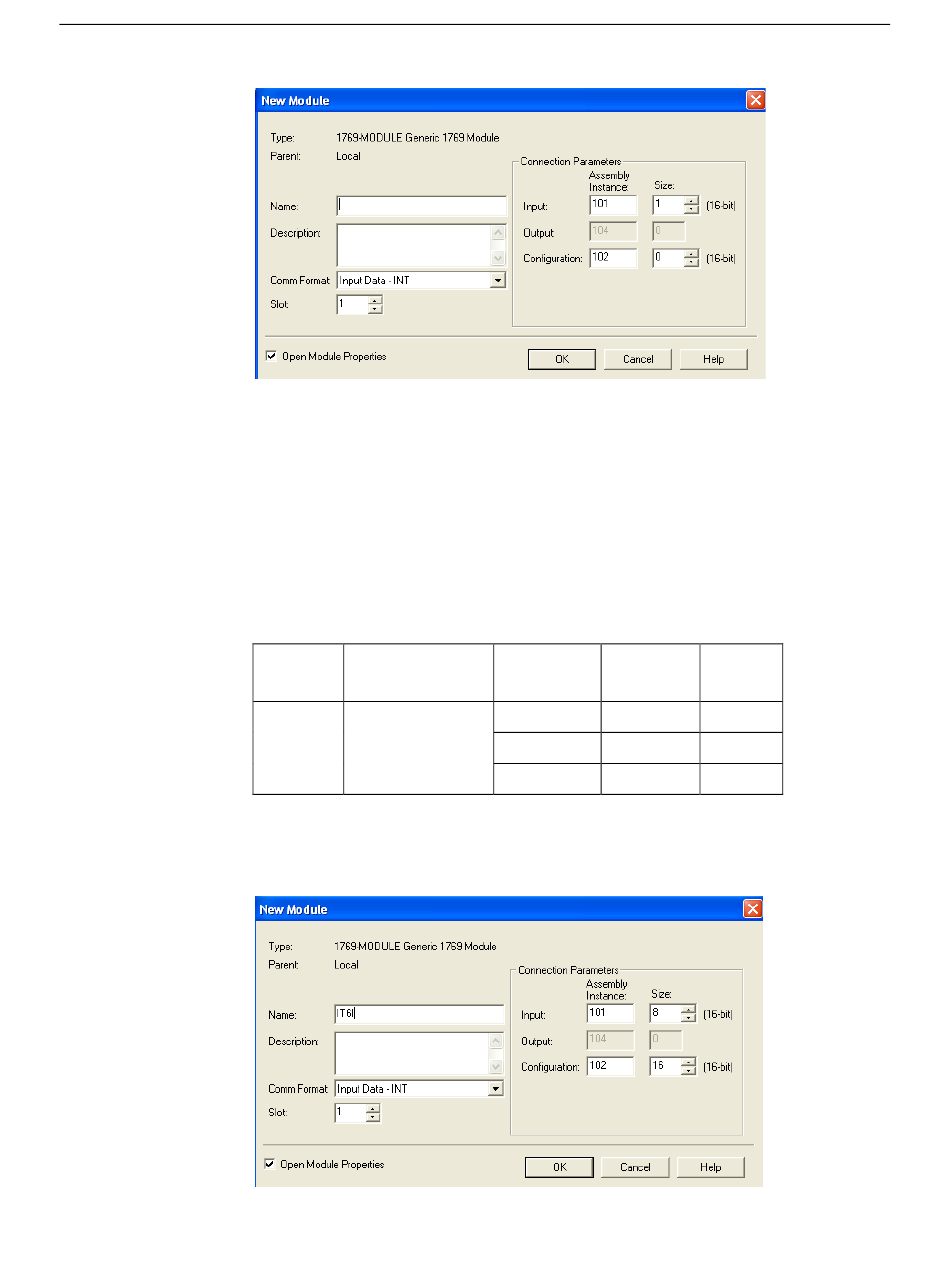

Click the OK button and the following default Generic Profile screen appears:
First, select the Comm Format ("Input Data – INT" for the 1769sc-IT6I), then fill
in the name field. For this example, "IT6I" is used to help identify the module
type in the Controller Organizer. The Description field is optional and may be
used to provide more details concerning this I/O module in your application.
The slot number must be selected next, although it will begin with the first
available slot number, 1, and increments automatically for each subsequent
Generic Profile you configure. For this example, the 1769sc-IT6I Isolated
Thermocouple module is located in slot 1.
The Comm Format, Assembly Instance and Size values are listed in the
following table for the 1769sc-IT6I Thermocouple module:
Table D-1 (Generic Profile Settings)
1769 I/O
Module
IT6I
Enter the Assembly Instance numbers and their associated sizes for the 1769sc-
IT6I module into the Generic Profile. When complete, the Generic Profile for a
1769sc-IT6I module should look like the following:
Comm.
Parameter Assembly
Format
Input Data - INT Input
Output
Config.
Size
Instance
(16-Bit)
101
8
104
0
102
16
User's Manual Pub. 0300244-02 Rev. A
D-3
