Appendix C: Module Configuration Using MicroLogix 1500 and RSLogix 500
C-3
and that RSLinx™ is properly configured and a communications link has been
established between the MicroLogix processor and RSLogix 500.

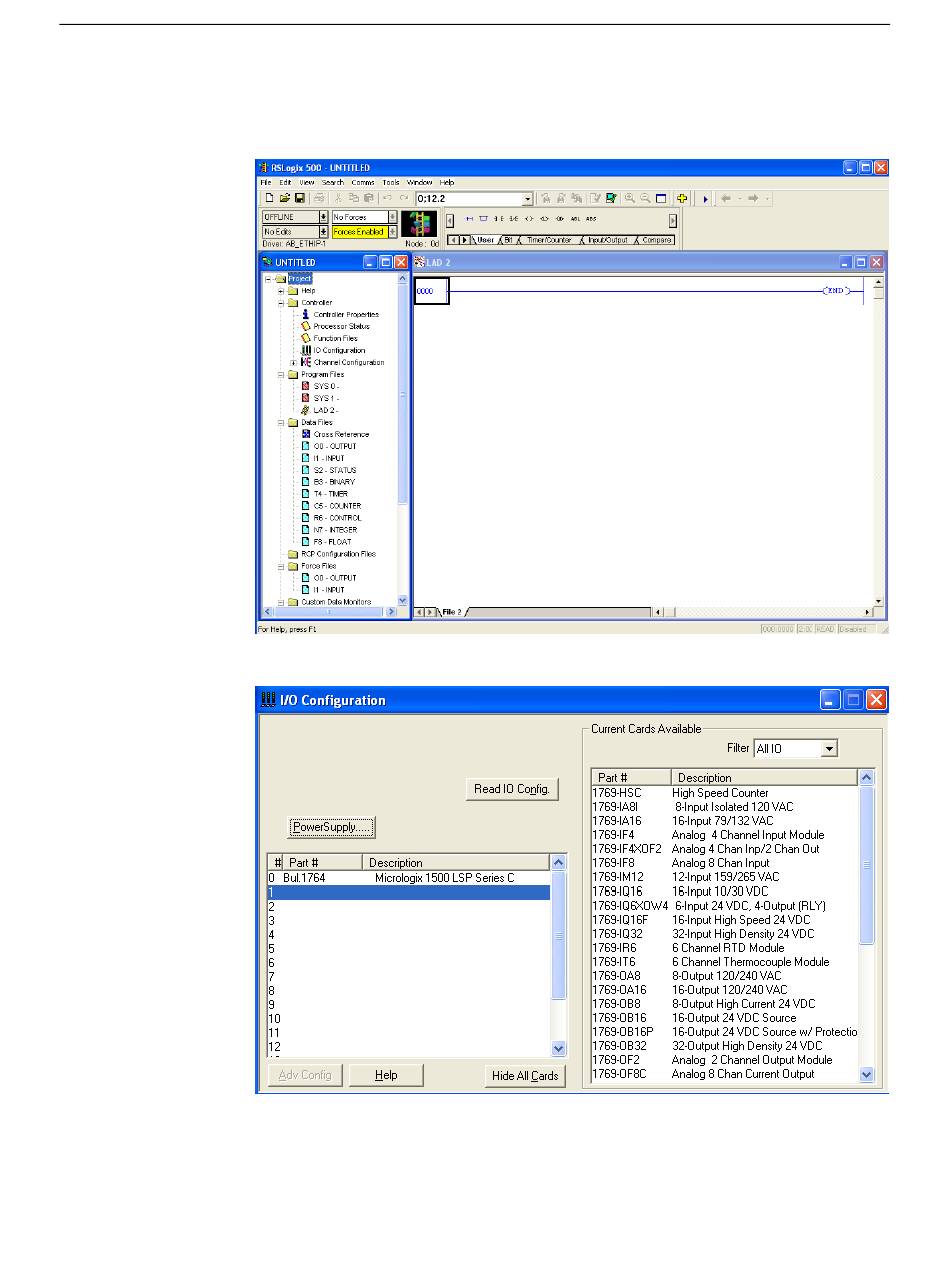

Start RSLogix and create a MicroLogix 1500 application. The following screen
appears:
While offline, double-click on the IO Configuration icon under the controller
folder and the following IO Configuration screen appears.
This screen allows you to manually enter expansion modules into expansion
slots, or to automatically read the configuration of the controller. In this example
we will manually insert the module using the "other" option.
User's Manual Pub. 0300244-02 Rev. A
