Appendix D
Configuring the IT6I for
CompactLogix Controllers in
RSLogix 5000
The procedure in this example is used only when your 1769sc-IT6I Isolated
Thermocouple module add-on profile is not available. An add-on profile for the
1769sc-IT6I will be made available on our website (www.spectrumcontrols.com)
after the initial release of the module.
To configure a 1769sc-IT6I Isolated Thermocouple module for a CompactLogix
Controller using RSLogix 5000 with the 1769 Generic Profile, begin a new
project in RSLogix 5000. Click on the new project icon or on the FILE pull-

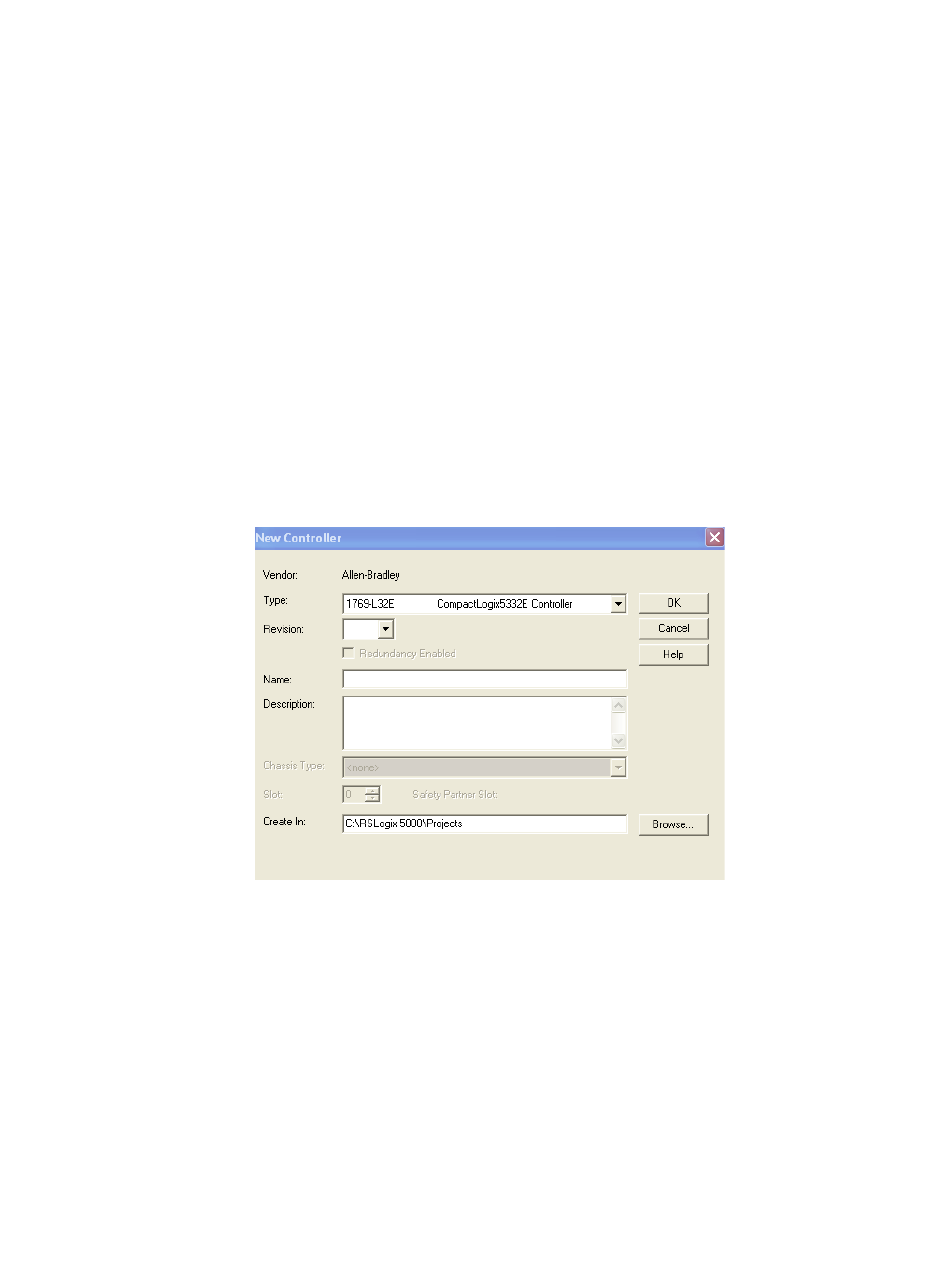

down menu and select NEW. The following screen appears:
Choose your controller type and enter a name for your project, then click OK.
User's Manual Pub. 0300244-02 Rev. A
