Appendix E: Configuring the IT6I to be Used with a 1769-AND DeviceNet Adapter
E-5

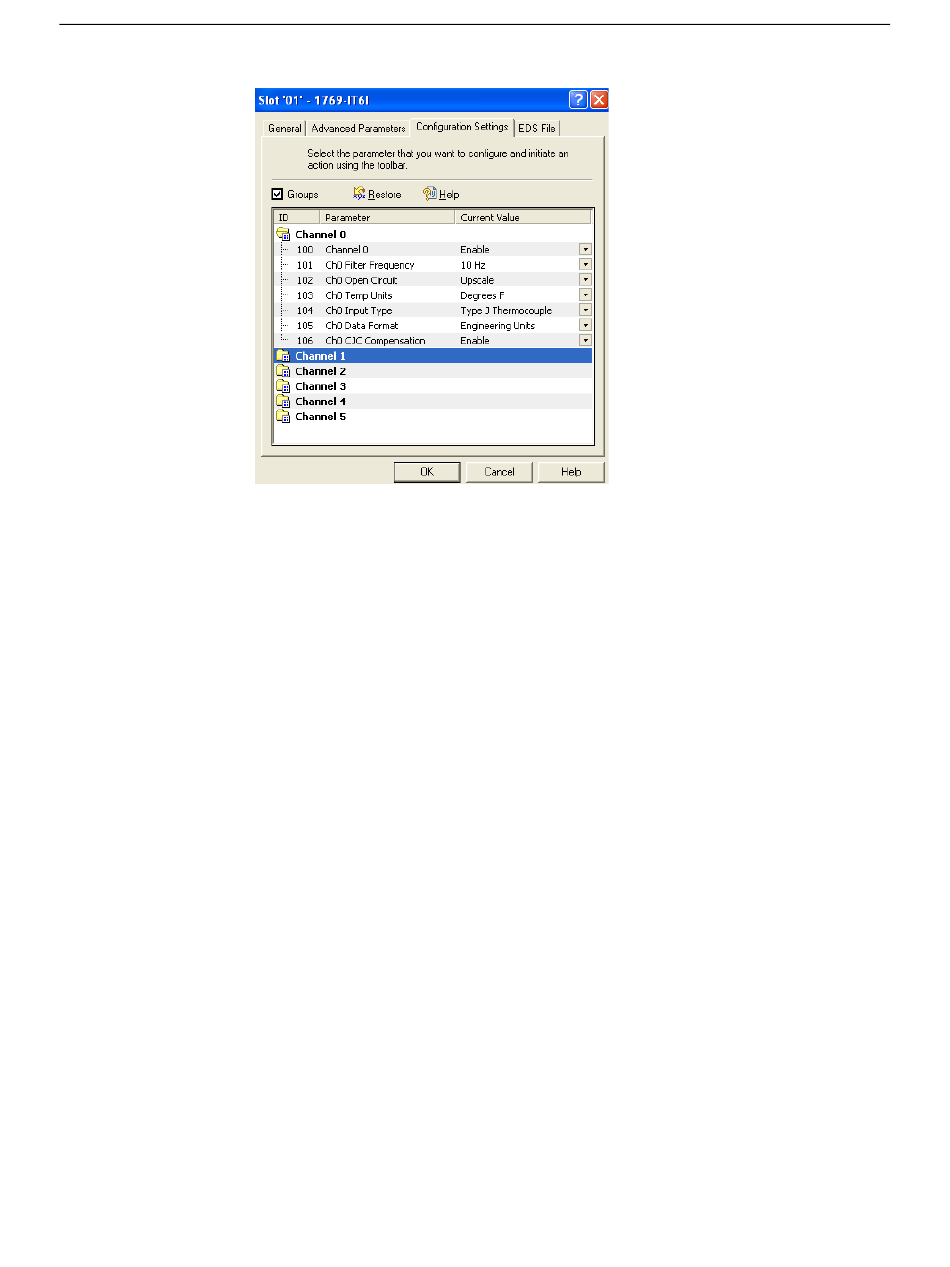

When complete, the configuration screen looks like the following:
Click OK and your configuration for the 1769sc-IT6I isolated thermocouple
input module is complete.
Refer to your Compact™ I/O 1769-ADN DeviceNet Adapter user's manual,
publication number 1769-UM001A-US-P, for information concerning DeviceNet
network configuration and operation.
User's Manual Pub. 0300244-02 Rev. A
