D-2
Compact™ IO Isolated Thermocouple Module
User's Manual Pub. 0300244-02 Rev. A

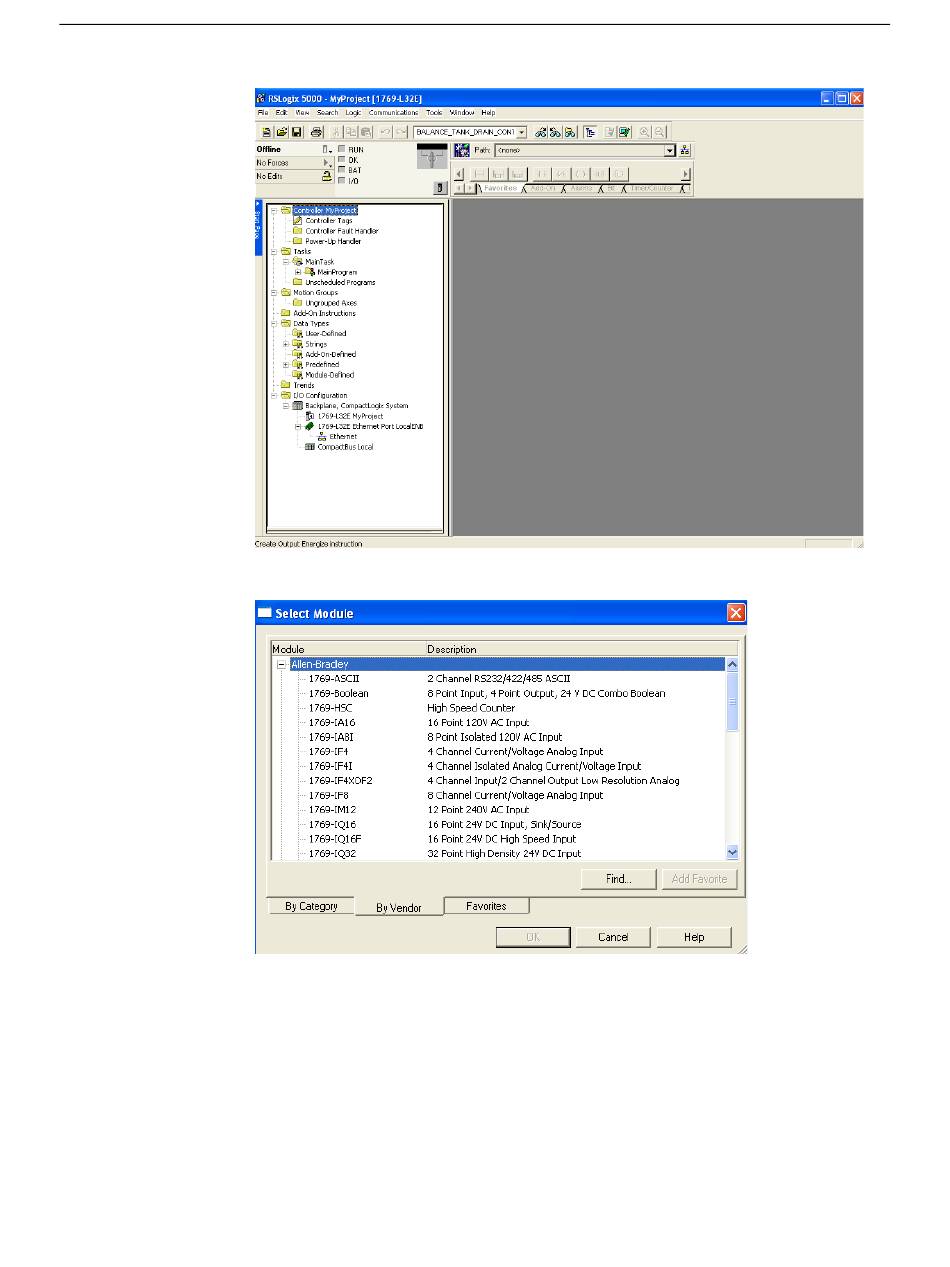

The following main RSLogix 5000 screen appears:
In the Controller Organizer on the left of the screen, right click on "CompactBus
Local", select New Module, and the following screen appears:
This screen is used to narrow your search for I/O modules to configure into your
system. From the list select the "Generic 1769 Module".
