C-4
Compact™ IO Isolated Thermocouple Module
User's Manual Pub. 0300244-02 Rev. A

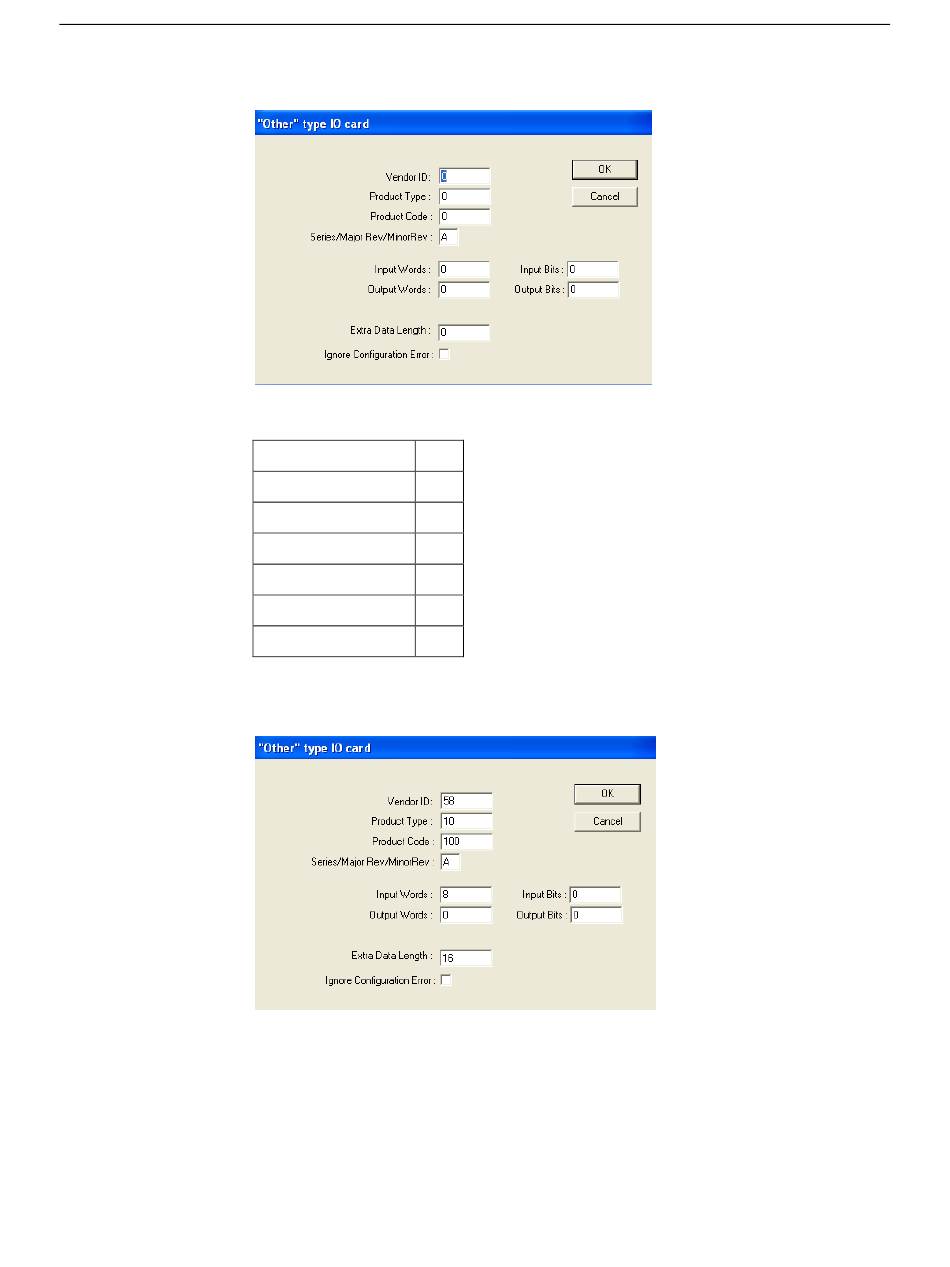

Click on an empty slot in the chassis. Under the "Current Cards Available" list,
select the "other" option. The following screen should appear.
Enter the settings from the table below.
Table C-2 Module ID Codes
Vendor ID
58
Product Type
10
Product Code
100
Series
A
Input Words
8
Output Words
0
Extra Data Length 16
After entering the data from the table above, the screen should look like the one
shown below.
Click the "OK" button when finished.
To complete the configuration, double-click on the module from the IO
configuration screen and select the "Generic Extra Data Confi" tab. The screen
below should appear.
