C-2 Compact™ IO Isolated Thermocouple Module
Section C.2
Configuring the
1769sc-IT6I in a
MicroLogix 1500
System
8 May be overridden by the software.
User's Manual Pub. 0300244-02 Rev. A

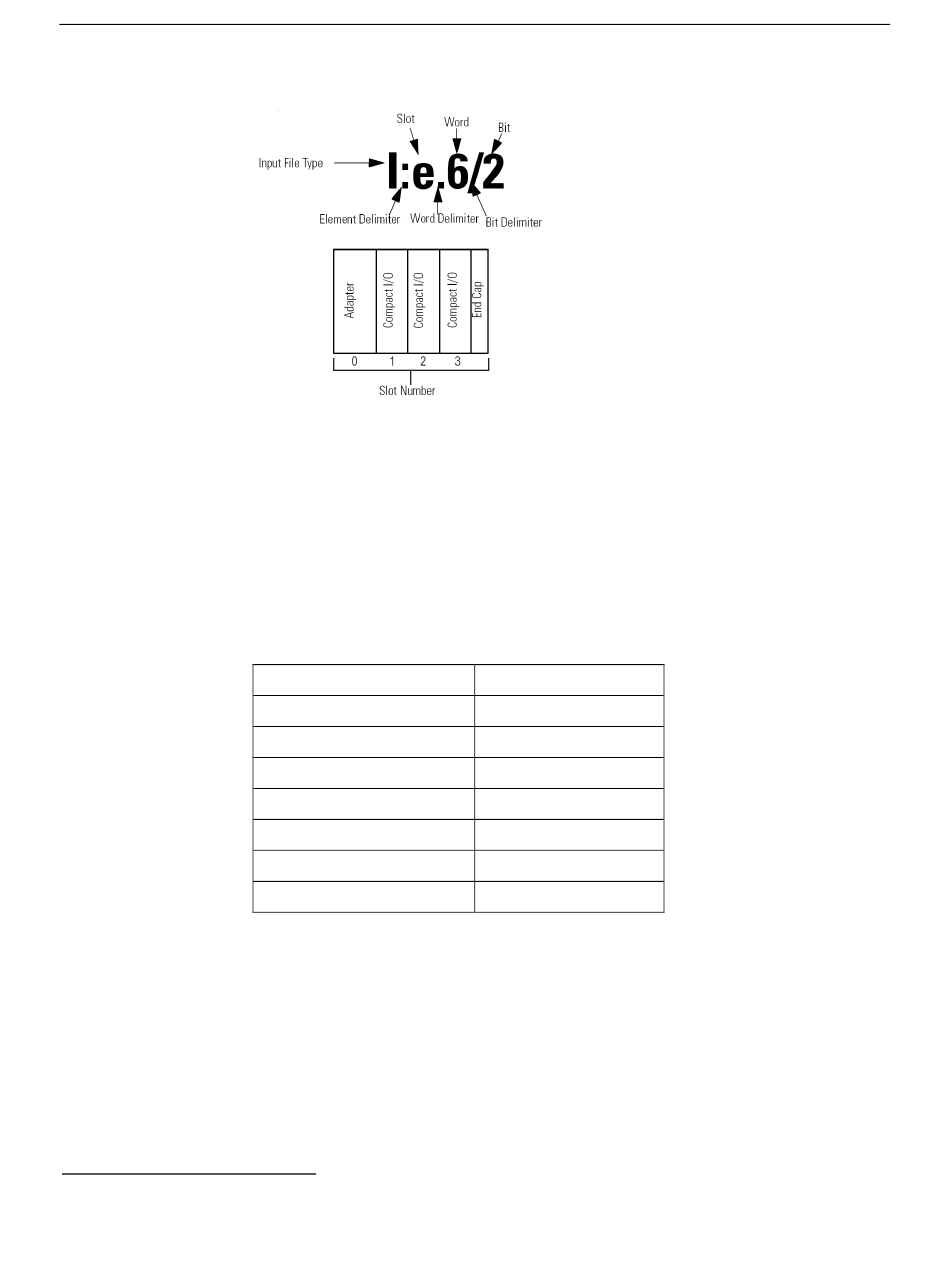

For example, to obtain the general status of channel 2 of the module located in
slot e, use address I:e.6/2.
Note: The end-cap does not use a slot address.
C.1.1 1769sc-IT6I Configuration File
The configuration file contains information you use to define the way a specific
channel functions. The configuration file is explained in more detail in
Configuring Channels.
The configuration file is modified using the programming software configuration
screen. For an example of module configuration using RSLogix 500, see
Configuring the 1769sc-IT6I in a MicroLogix 1500 System.
Table C-1 (Software Configuration Channel Defaults)
Parameter
Filter Frequency
Display CJC Temperature No
Open-Circuit Response
Temperature Units
Input Type
Data Format
Disable/Enable Channel
This example takes you through configuring your 1769sc-IT6I Isolated
thermocouple/mV input module with RSLogix 500 programming software,
assumes your module is installed as expansion I/O in a MicroLogix 1500 system,
Default Setting
10 Hz
Upscale
C˚
J Type Thermocouple
Raw/Proportional
Enable
8
