Communication Ports

The RUGGEDCOM RSG920P can be equipped with various types of communication
ports to enhance its abilities and performance.
1
2
1
2
3

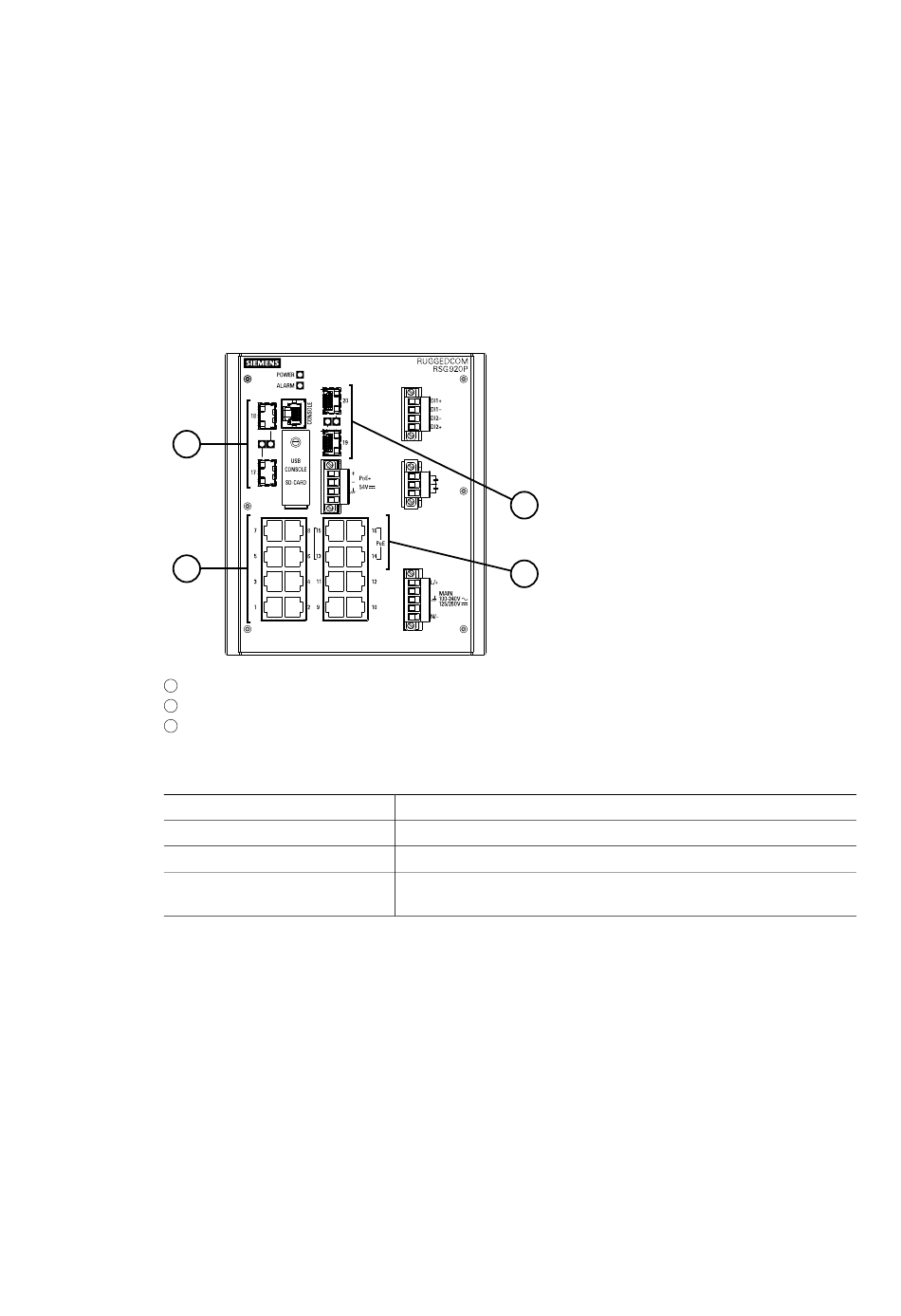

Figure 4.1
4.1

Copper Ethernet Ports

The RUGGEDCOM RSG920P supports several 10/100/1000Base-TX Ethernet ports
that allow connection to standard Category 5 (CAT-5) unshielded twisted-pair (UTP)
cables with RJ45 male connectors. The RJ45 connectors are directly connected to
the chassis ground on the device and can accept CAT-5 shielded twisted-pair (STP)
cables.
RUGGEDCOM RSG920P
Equipment Manual, 10/2023, C79000-G8976-1172-09
SFP Transceiver Sockets
Copper Ethernet Ports
PoE+ Ports
Port Assignment
Port
1 to 16
13 to 16
17 to 20
1
3
10/100/1000 Mbps Copper Ethernet Ports
10/100/1000 Mbps Power-over-Ethernet (POE) Ports
SFP up-link ports supporting Fast Ethernet or Gigabit Ethernet
optics (used interchangeably)
Type
4
