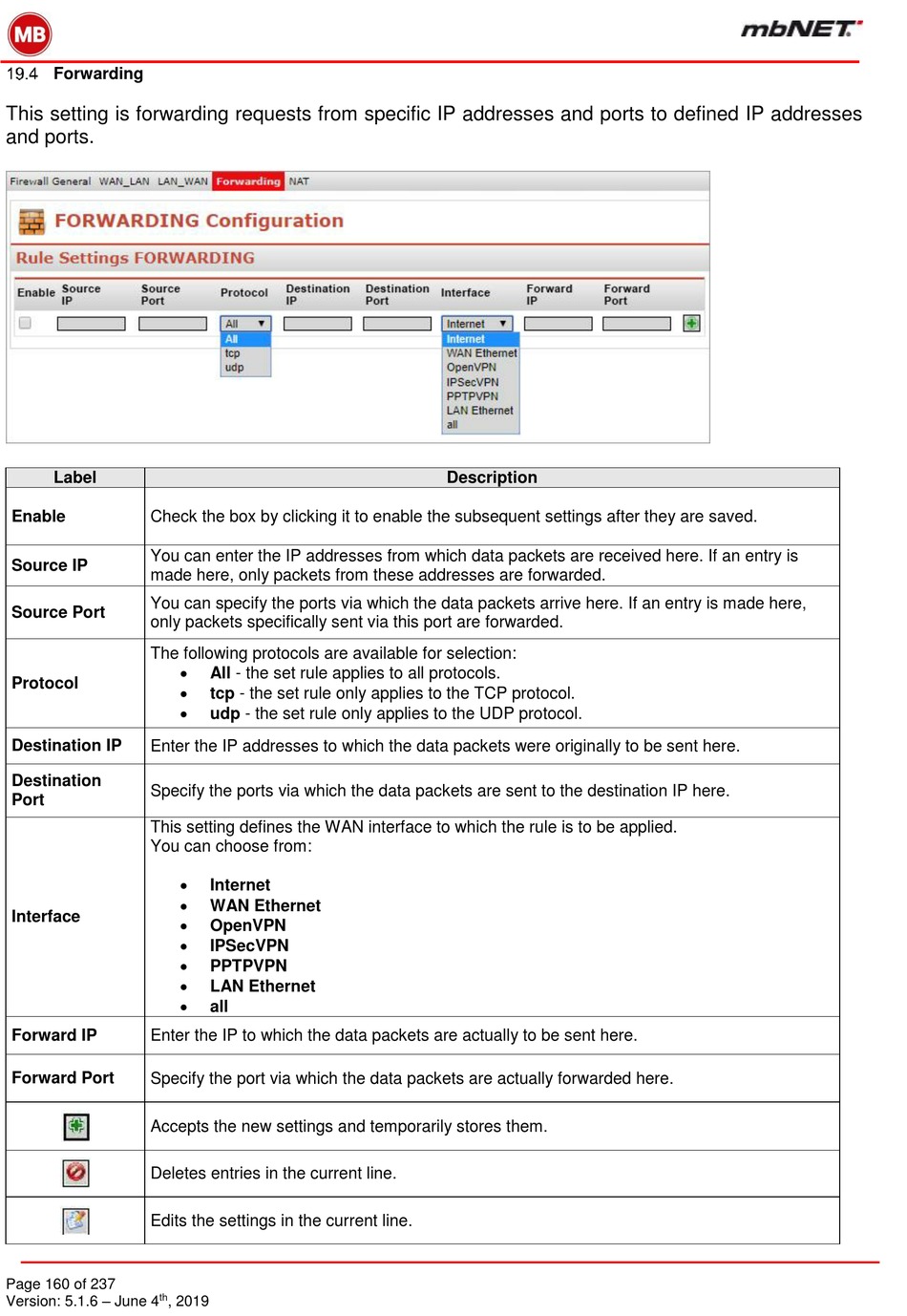

Forwarding

This setting is forwarding requests from specific IP addresses and ports to defined IP addresses
and ports.
Label
Enable
Check the box by clicking it to enable the subsequent settings after they are saved.
You can enter the IP addresses from which data packets are received here. If an entry is
Source IP
made here, only packets from these addresses are forwarded.
You can specify the ports via which the data packets arrive here. If an entry is made here,
Source Port
only packets specifically sent via this port are forwarded.
The following protocols are available for selection:
Protocol
Destination IP
Enter the IP addresses to which the data packets were originally to be sent here.
Destination
Specify the ports via which the data packets are sent to the destination IP here.
Port
This setting defines the WAN interface to which the rule is to be applied.
You can choose from:
Interface
Forward IP
Enter the IP to which the data packets are actually to be sent here.
Forward Port Specify the port via which the data packets are actually forwarded here.
Accepts the new settings and temporarily stores them.
Deletes entries in the current line.
Edits the settings in the current line.
Page 160 of 237
Version: 5.1.6 – June 4
th
, 2019

All - the set rule applies to all protocols.

tcp - the set rule only applies to the TCP protocol.

udp - the set rule only applies to the UDP protocol.

Internet

WAN Ethernet

OpenVPN

IPSecVPN

PPTPVPN

LAN Ethernet

all
Description
