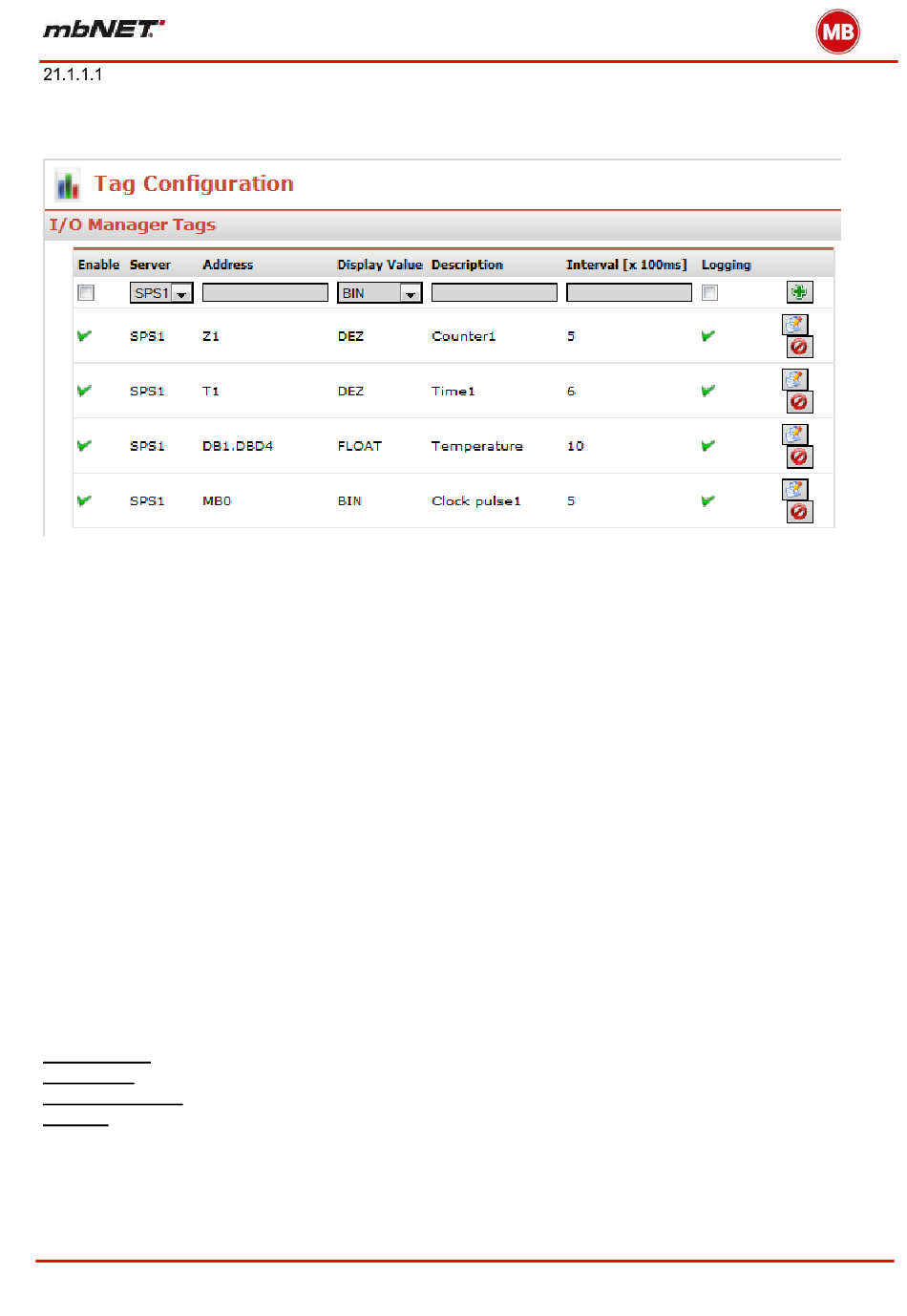

Creating the tags

Tags can be added if there is at least one PLC connection created.
The following address syntax must be used for this driver:
DBx.DBXy.z =
DBx.DBBy =
DBx.DBWy =
DBx.DBDy =
Fy.z =
FBy =
FWy =
FDy =
Iy.z =
IBy =
IWy =
IDy =
Oy.z =
OBy =
OWy =
ODy =
PIy.z =
PIBy =
PIWy =
PIDy =
Ty =
Cy =
Display Value This format is used for the status display and in the logging data.
Description Free label field.
Interval [x 100ms] this tag is read from the PLC during this interval.
Logging This tag is enabled for logging if this option is checked. The tag is only displayed on the status display if
this option is not checked.
data block x, data bit y.z, BOOL
data block x, data byte y, BYTE
data block x, data word y, WORD
data block x, data double word y, DWORD
flag bit y.z, BOOL
flag byte y, BYTE
flag word y, WORD
flag double word y, DWORD
input bit y.z, BOOL
input byte y, BYTE
input word y, WORD
input double word y, DWORD
output bit y.z, BOOL
output byte y, BYTE
output word y, WORD
output double word y, DWORD
peripheral input bit y.z, BOOL
peripheral input byte y, BYTE
peripheral input word y, WORD
peripheral input double word y, DWORD
Timer y, TIMER
Counter y, COUNTER
