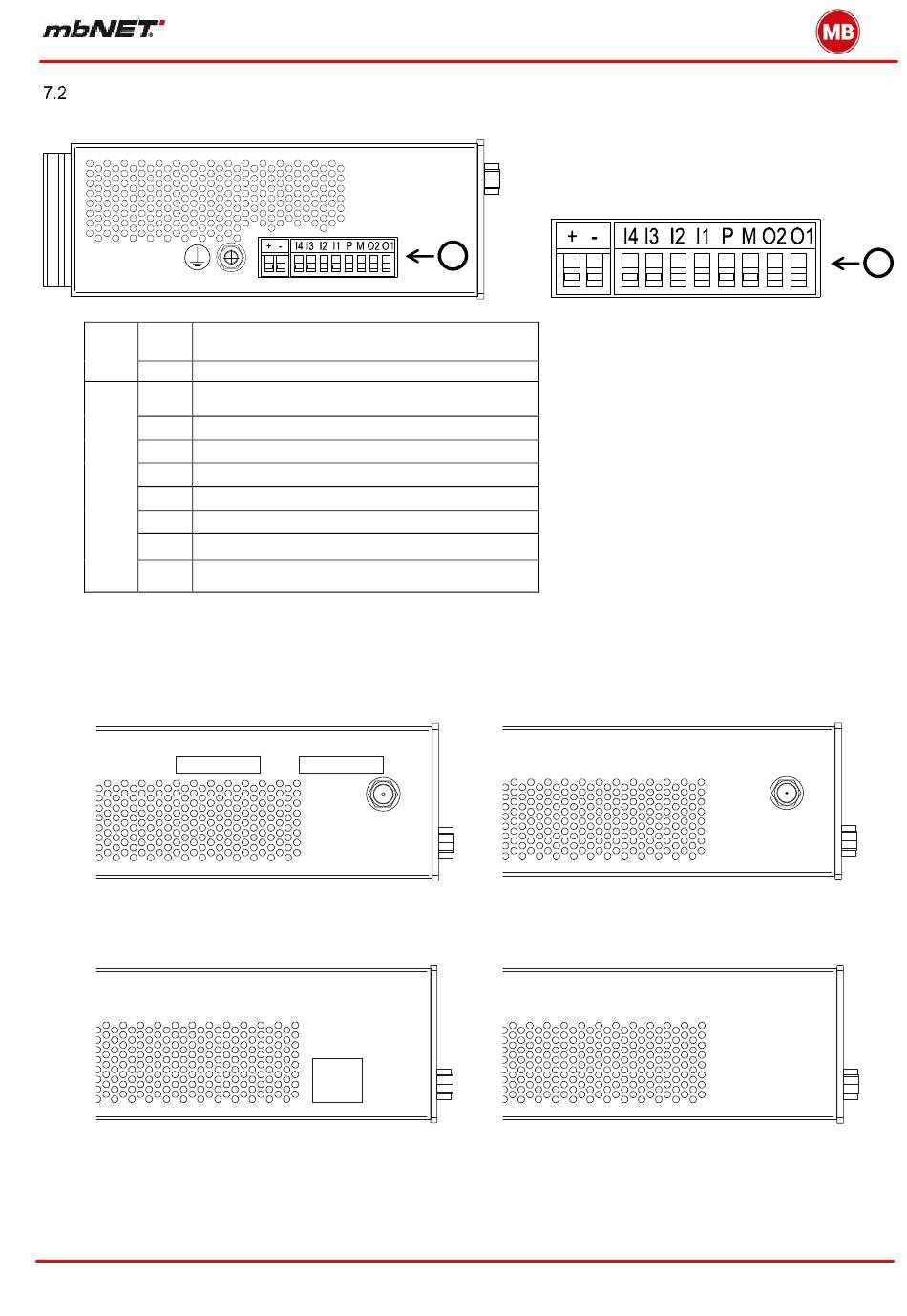

Top, bottom and back panel views
Top view
Power supply connection
+
X1
10-30V DC
-
0V DC connection
4
Digital input I4 (10-30V)
3
Digital input I3 (10-30V)
2
Digital input I2 (10-30V)
1
Digital input I1 (10-30V)
X2
P
Fuse-protection 10-30V DC
M
0V DC connection
O2
Digital output A2
O1
Digital output A1
Bottom view
MDH814, MDH819, MDH834, MDH849,
MDH850, MDH855, MDH858, MDH859
SIM card slots
SIM 1
MDH810, MDH815, MDH830
A
SIM 2
Antenna
Connection
(female)
RJ11
Connection
X1
|
MDH811, MDH831, MDH841
MDH816, MDH835
X2
Antenna
Connection
(male)
Page 19 of 237
Version: 5.1.6 – June 4
th
, 2018
