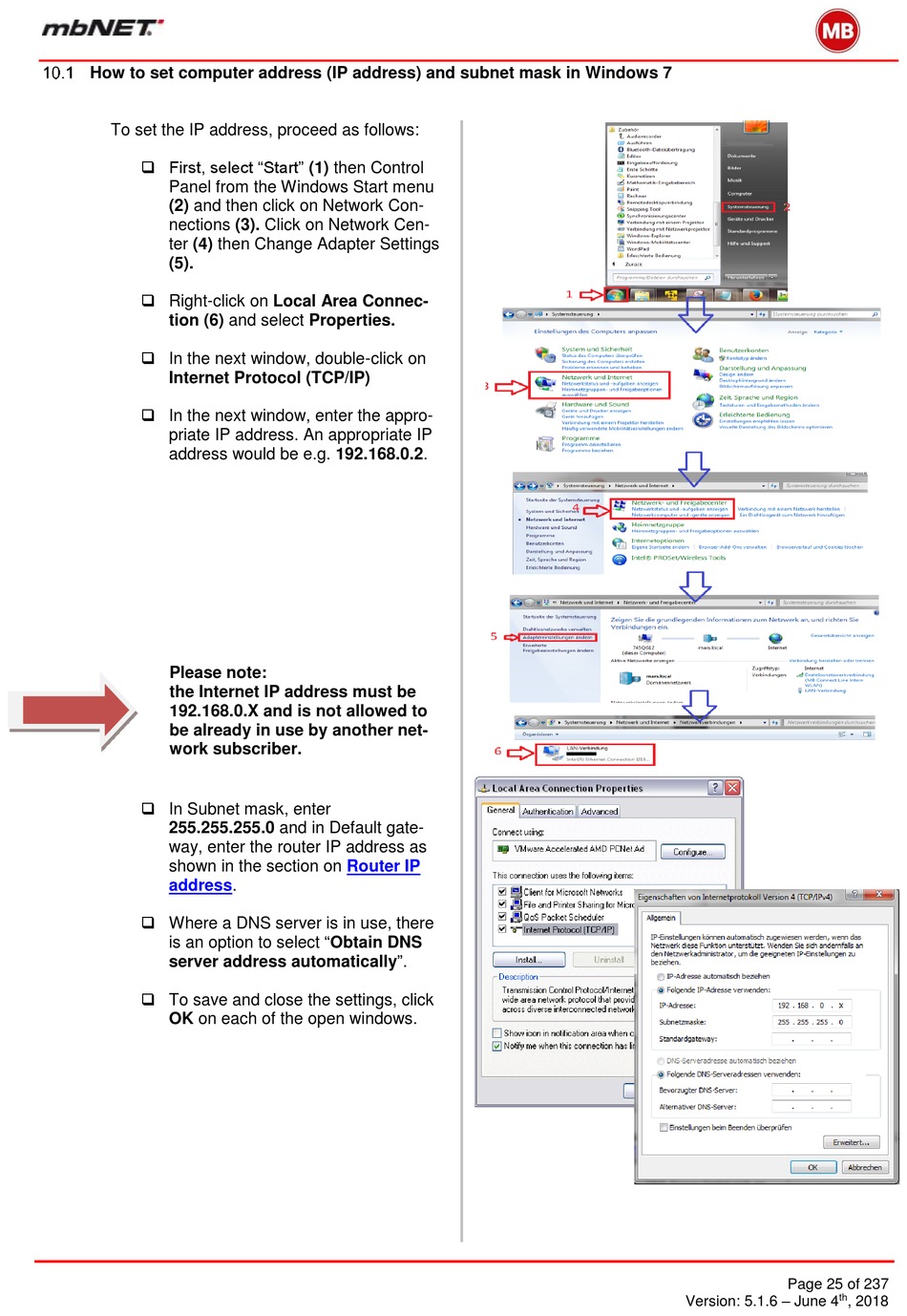

How to set computer address (IP address) and subnet mask in Windows 7

To set the IP address, proceed as follows:
 First, select "Start" (1) then Control
Panel from the Windows Start menu
(2) and then click on Network Con-
nections (3). Click on Network Cen-
ter (4) then Change Adapter Settings
(5).
 Right-click on Local Area Connec-
tion (6) and select Properties.
 In the next window, double-click on
Internet Protocol (TCP/IP)
 In the next window, enter the appro-
priate IP address. An appropriate IP
address would be e.g. 192.168.0.2.
Please note:
the Internet IP address must be
192.168.0.X and is not allowed to
be already in use by another net-
work subscriber.
 In Subnet mask, enter
255.255.255.0 and in Default gate-
way, enter the router IP address as
shown in the section on
address.
 Where a DNS server is in use, there
is an option to select "Obtain DNS
server address automatically".
 To save and close the settings, click
OK on each of the open windows.
Router IP
