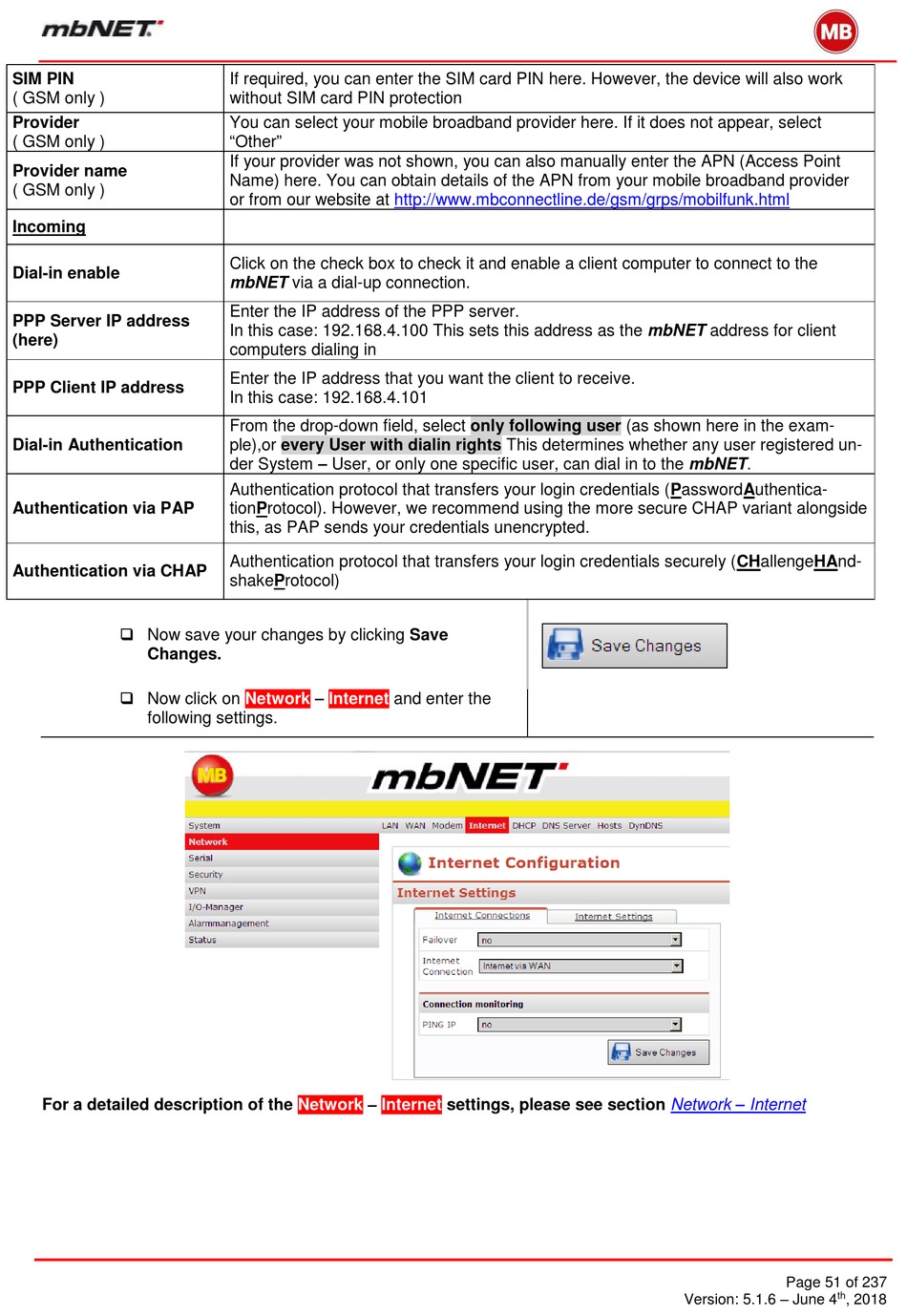

MB Connect Line mbNET Series Manual page 51

SIM PIN
( GSM only )
Provider
( GSM only )
Provider name
( GSM only )
Incoming
Dial-in enable
PPP Server IP address
(here)
PPP Client IP address
Dial-in Authentication
Authentication via PAP
Authentication via CHAP
 Now save your changes by clicking Save
Changes.
 Now click on
following settings.
For a detailed description of the
If required, you can enter the SIM card PIN here. However, the device will also work
without SIM card PIN protection
You can select your mobile broadband provider here. If it does not appear, select
"Other"
If your provider was not shown, you can also manually enter the APN (Access Point
Name) here. You can obtain details of the APN from your mobile broadband provider
or from our website at http://www.mbconnectline.de/gsm/grps/mobilfunk.html
Click on the check box to check it and enable a client computer to connect to the
mbNET via a dial-up connection.
Enter the IP address of the PPP server.
In this case: 192.168.4.100 This sets this address as the mbNET address for client
computers dialing in
Enter the IP address that you want the client to receive.
In this case: 192.168.4.101
From the drop-down field, select only following user (as shown here in the exam-
ple),or every User with dialin rights This determines whether any user registered un-
der System – User, or only one specific user, can dial in to the mbNET.
Authentication protocol that transfers your login credentials (PasswordAuthentica-
tionProtocol). However, we recommend using the more secure CHAP variant alongside
this, as PAP sends your credentials unencrypted.
Authentication protocol that transfers your login credentials securely (CHallengeHAnd-
shakeProtocol)
–
Network Internet and enter the
–
Network Internet settings, please see section
Network – Internet
Page 51 of 237
Version: 5.1.6 – June 4
th
, 2018
