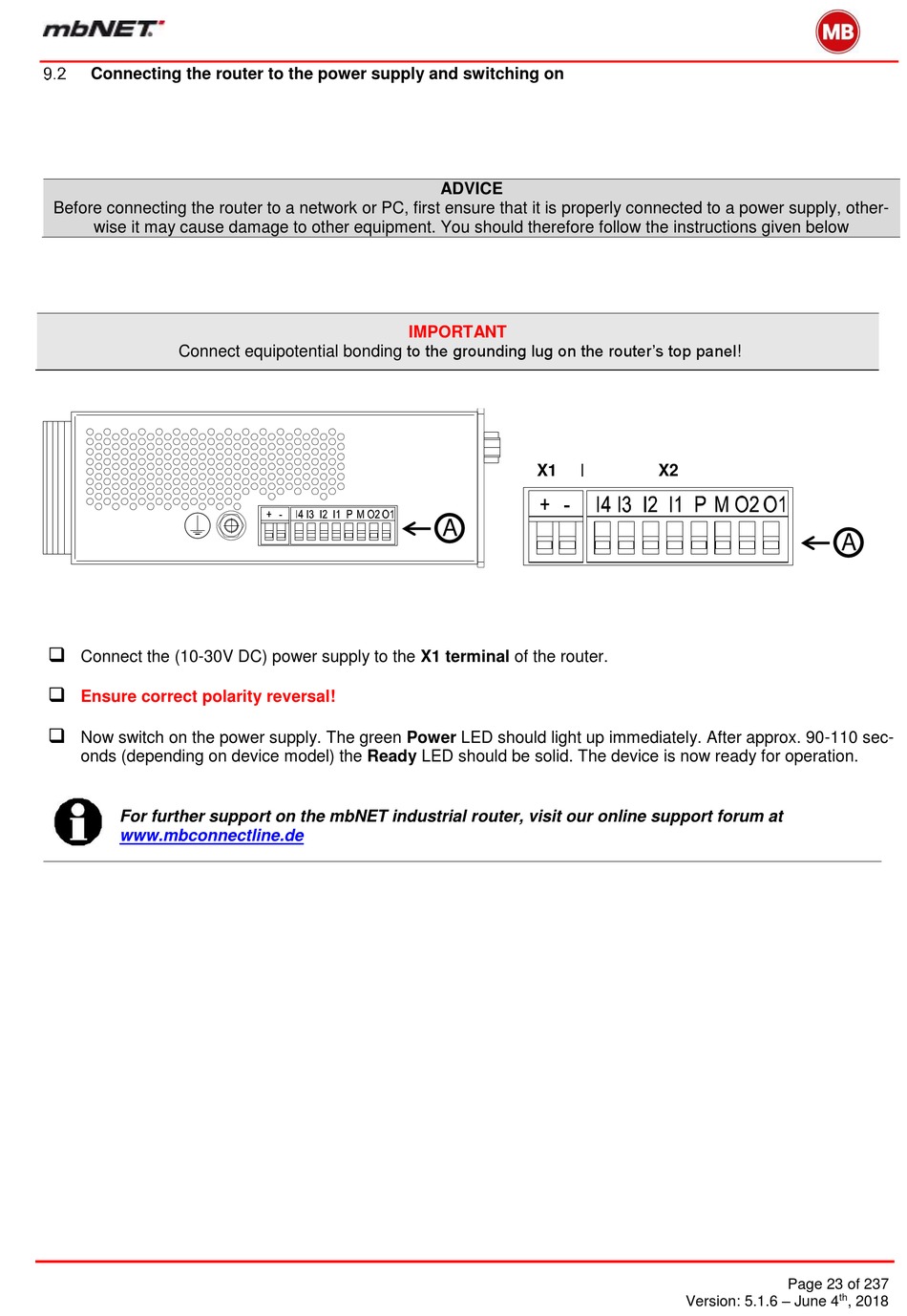

Connecting the router to the power supply and switching on

Before connecting the router to a network or PC, first ensure that it is properly connected to a power supply, other-
wise it may cause damage to other equipment. You should therefore follow the instructions given below
Connect equipotential bonding to the grounding lug on the router's top panel!

Connect the (10-30V DC) power supply to the X1 terminal of the router.

Ensure correct polarity reversal!

Now switch on the power supply. The green Power LED should light up immediately. After approx. 90-110 sec-
onds (depending on device model) the Ready LED should be solid. The device is now ready for operation.
For further support on the mbNET industrial router, visit our online support forum at
www.mbconnectline.de
