Basic configuration of the router using the web interface

12.

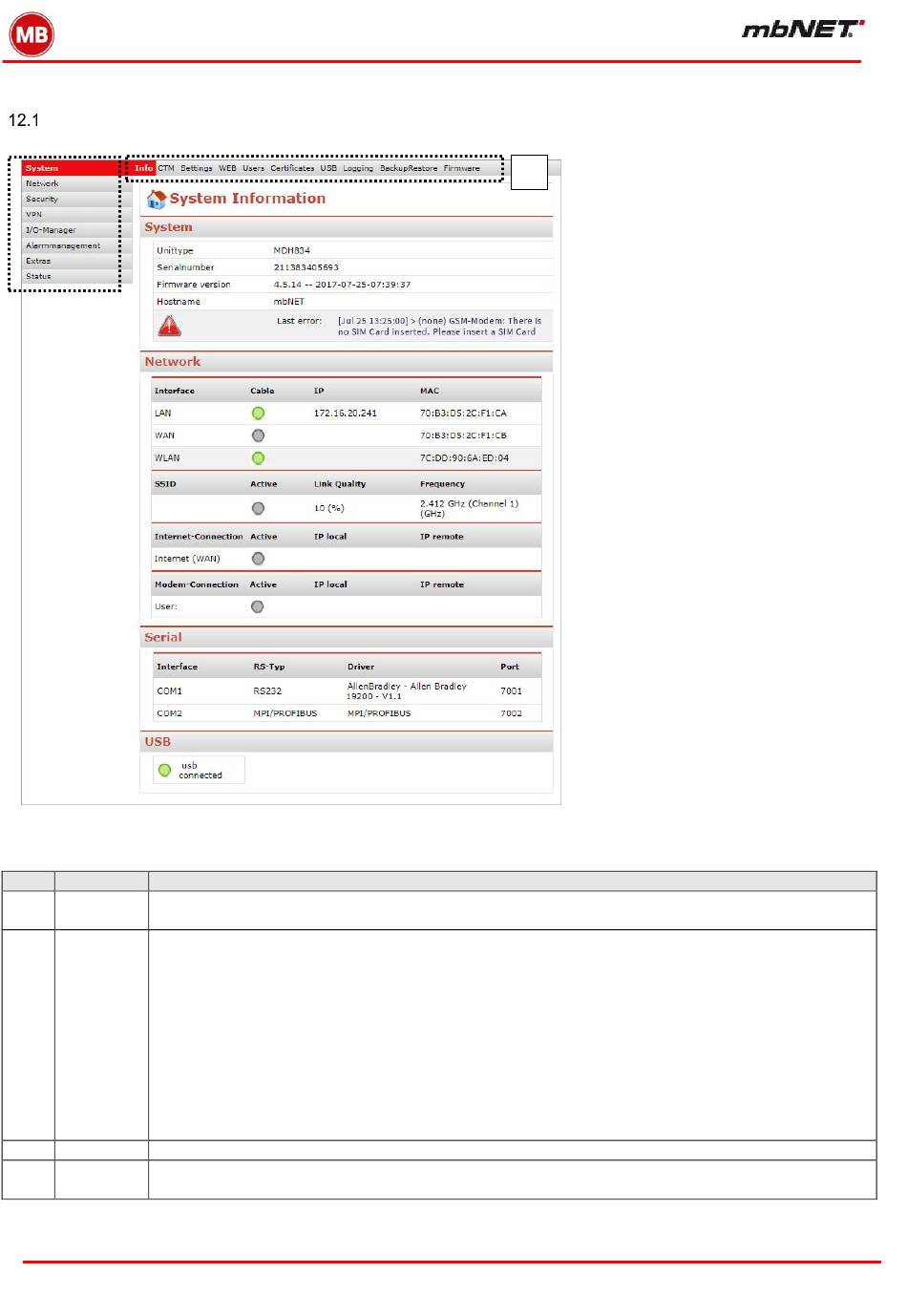

Web interface home page

Pos. Label
System information such as device model, device name, current firmware version and serial num-
3 System
ber of the router.
Interface: LAN – WAN:
Displays which network connections are currently connected to the existing network via the re-
spective ports. A green icon indicates an existing connection.
SSID: Here you will find information about the WiFi network name (SSID), the connection status
(if a connection is active, this is indicated by the green LED symbol), the signal strength of the
4 Network connection quality (%) and the values for the frequency and the selected WiFi channel.
Internet connection: A currently active Internet connection (or connections) is indicated by a
green dot. If there is no currently active Internet connection, the circle is solid gray.
Modem connection: Only incoming modem connections are shown here. A green dot means
that a modem connection is established. The display also shows which user is connected to the
modem.
5 Serial This shows the current configuration of interfaces COM1 andCOM2.
Information on connected USB storage devices. A connected storage device (e.g. flash drive or
6 USB
external hard drive) is indicated by a green dot.
Page 36 of 237
Version: 5.1.6 – June 4
th
, 2019
2
The home page is designed to provide
you with an at-a-glance view of the
most important information on mbNET
router access or status. The side (1)
and top (2) navigation bars will pro-
vide the support you need when con-
figuring the router. The navigation bar
at the top (2) displays the submenu for
each of the main menu items listed in
the navigation bar at the side (1).
Description
