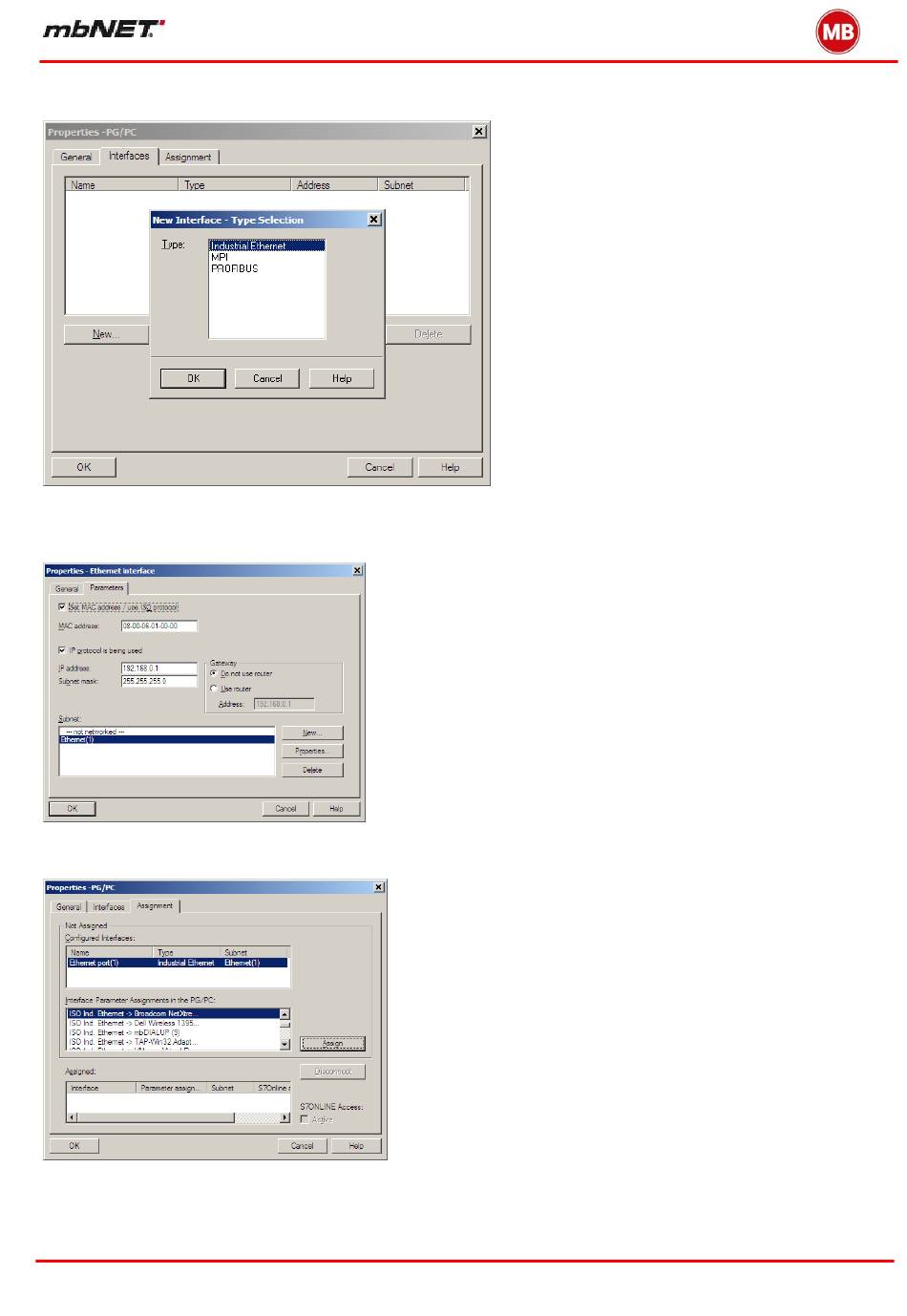

Double clicking on "PG/PC Station" opens the Properties window for this. Here, you need to add this interface by
selecting "Interfaces -> New ...-> Industrial Ethernet".
This opens a window where you need to make the "Industrial Ethernet" settings for the PC.
Specify the PG/PC subnet mask and IP address here. The PG/PC IP address can be from anywhere in the network
range but may not overlap with other addresses on the network and must not be the real IP address of the PG/PC.
Next, in the "Assignment" tab, find the interface that you intend to use as the "Ethernet Interface" and link this to
"TCP/IP (Auto) -> xxx" (the LAN card in use) by clicking on the "Assign" button.
After assigning your chosen interface, the window should look like this. S7ONLINE access must be set to „Active".
