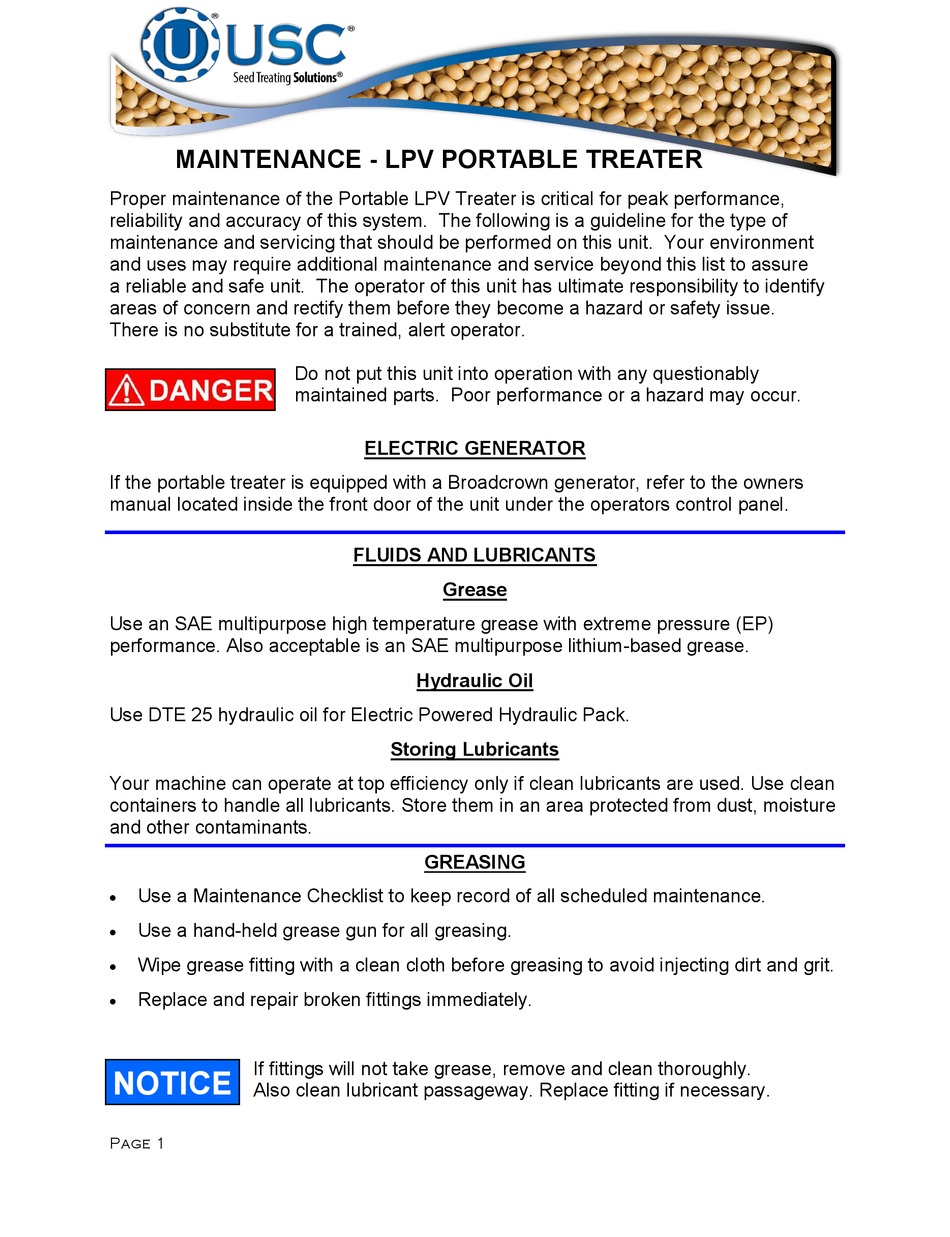

MAINTENANCE - LPV PORTABLE TREATER
Proper maintenance of the Portable LPV Treater is critical for peak performance,
reliability and accuracy of this system. The following is a guideline for the type of
maintenance and servicing that should be performed on this unit. Your environment
and uses may require additional maintenance and service beyond this list to assure
a reliable and safe unit. The operator of this unit has ultimate responsibility to identify
areas of concern and rectify them before they become a hazard or safety issue.
There is no substitute for a trained, alert operator.
If the portable treater is equipped with a Broadcrown generator, refer to the owners
manual located inside the front door of the unit under the operators control panel.
Use an SAE multipurpose high temperature grease with extreme pressure (EP)
performance. Also acceptable is an SAE multipurpose lithium-based grease.
Use DTE 25 hydraulic oil for Electric Powered Hydraulic Pack.
Your machine can operate at top efficiency only if clean lubricants are used. Use clean
containers to handle all lubricants. Store them in an area protected from dust, moisture
and other contaminants.
Use a Maintenance Checklist to keep record of all scheduled maintenance.
Use a hand-held grease gun for all greasing.
Wipe grease fitting with a clean cloth before greasing to avoid injecting dirt and grit.
Replace and repair broken fittings immediately.
If fittings will not take grease, remove and clean thoroughly.
NOTICE
Also clean lubricant passageway. Replace fitting if necessary.
Page 1
Do not put this unit into operation with any questionably
maintained parts. Poor performance or a hazard may occur.
ELECTRIC GENERATOR
FLUIDS AND LUBRICANTS
Grease
Hydraulic Oil
Storing Lubricants
GREASING
