Installation Procedure
R
D
EMOVING THE
AUGHTER
There are four spacer posts on the ATM Interface Carrier Module to
support the daughter cards. Two spacers are located directly behind the
left cutout and two are located directly behind the right cutout
(Figure 24).

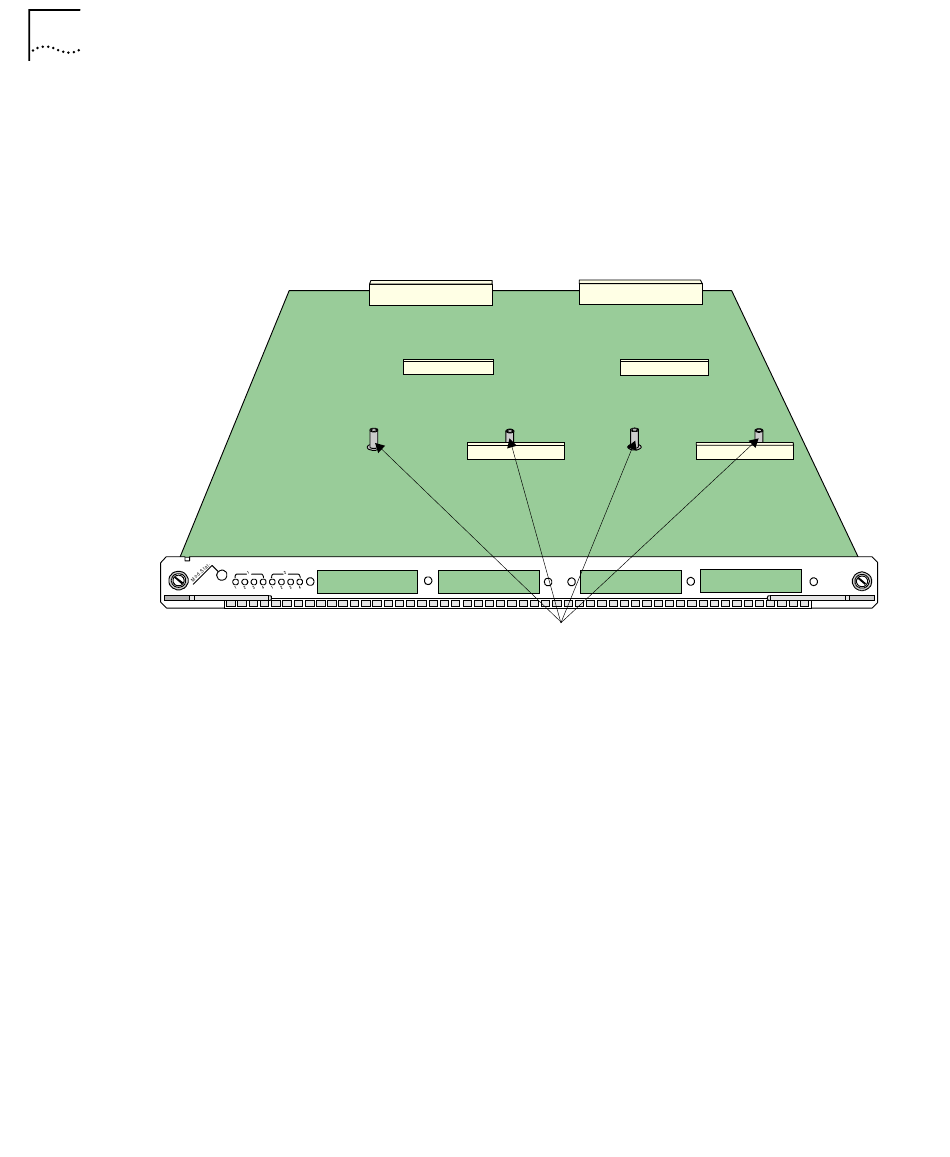

Figure 24 Spacers
To install the 155 Mbps-over-UTP5 daughter card in the left cutout,
perform the following procedure:
1 Hold the card with the beige bridge connector facing downward and the
protective plugs facing forward.
2 Hold the card at a ~20° angle to the horizontal and insert the card into
the left cutout from the back of the ATM Interface Carrier Module
(Figure 25). Make sure that the RFI shield has not moved.
C
ARDS
S pacers
