This section describes how to remove the 155 Mbps-over-UTP5 daughter

card.

To remove the 155 Mbps-over-UTP5 card, you need:

A #1 Phillips screwdriver

The antistatic bag that the 155 Mbps-over-UTP5 card was shipped in

The protective faceplate (if you are removing and not replacing the

module)

To remove the 155 Mbps-over-UTP5 card:

1 Remove the three countersink Phillips-head screws from the front panel

(Figure 29) using a #1 Phillips screwdriver.

2 Save the screws for future use.

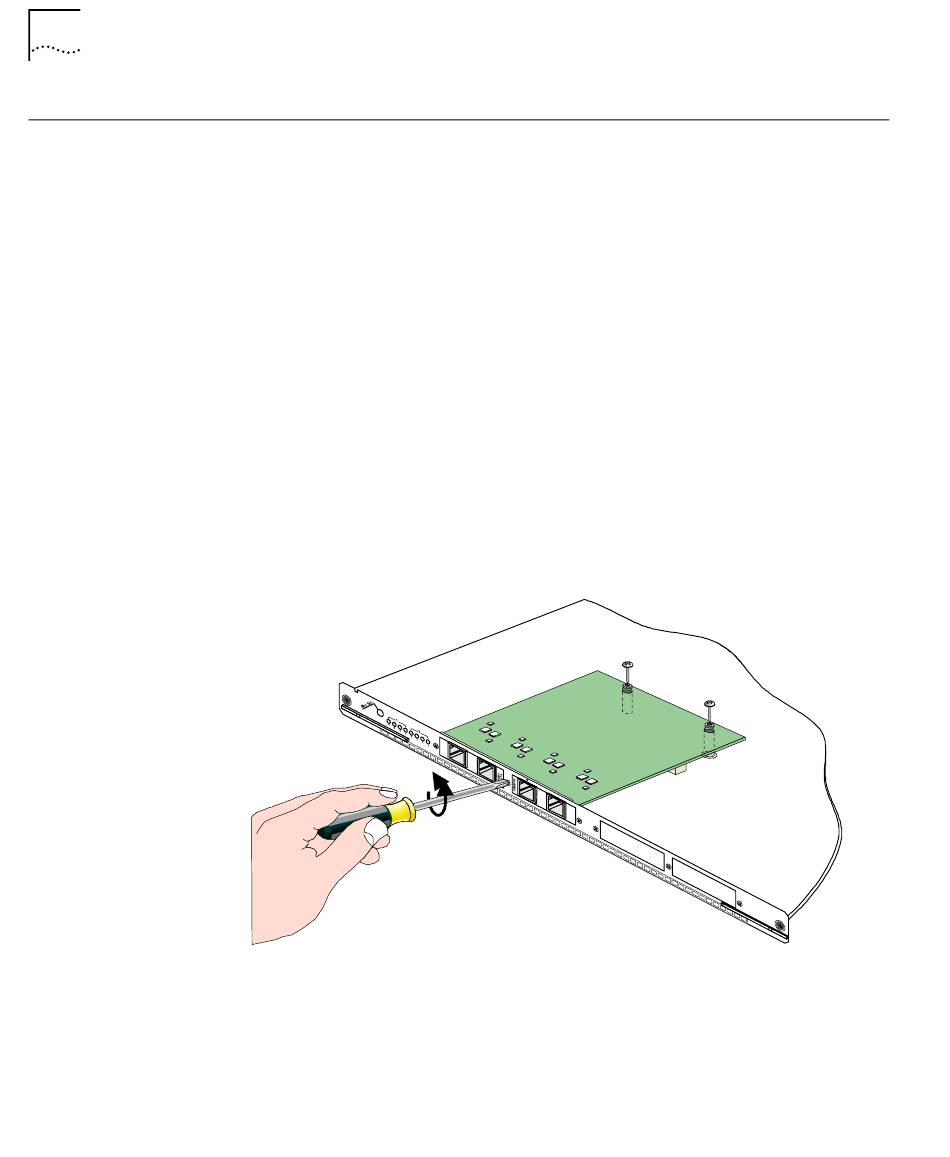

Figure 29 Removing the Countersink Screws
