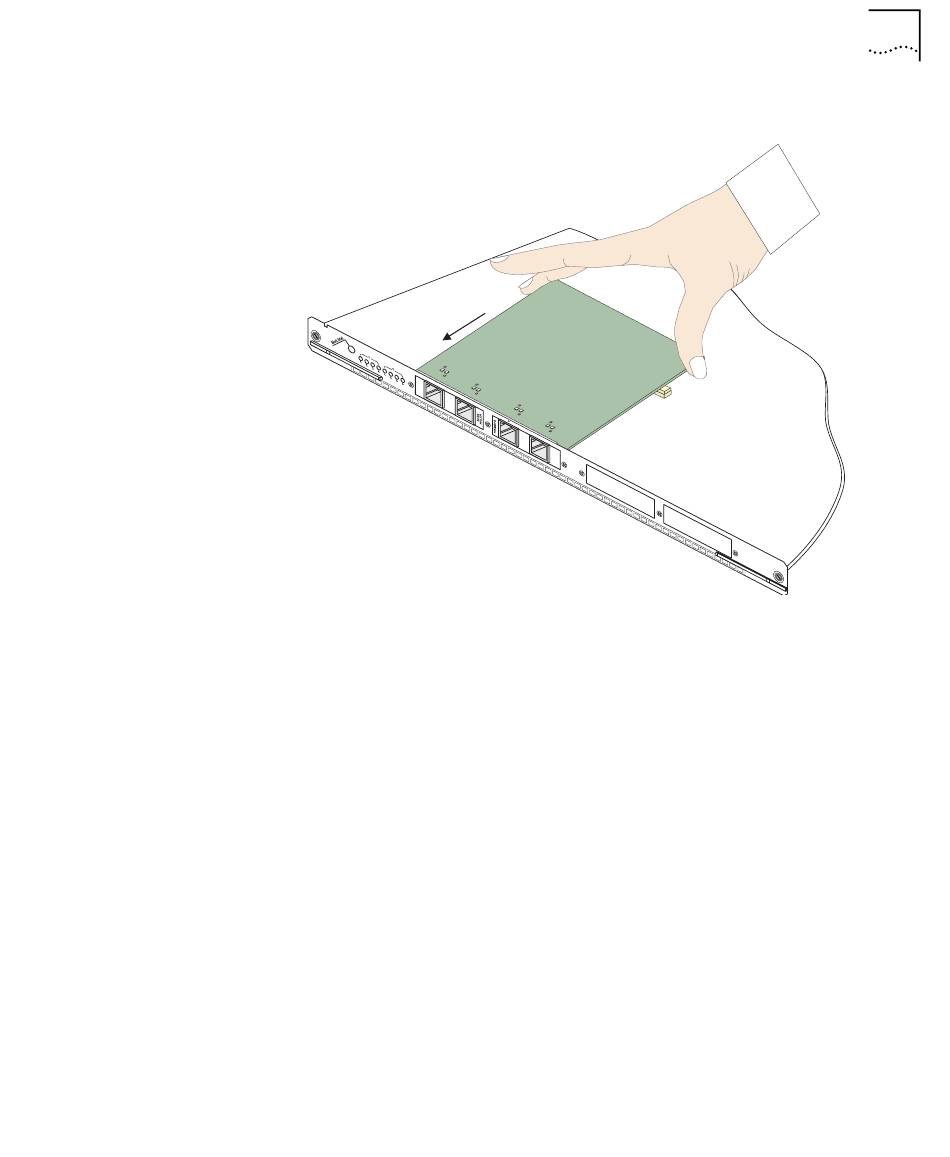

Figure 25 Inserting the 155 Mbps-over-UTP5 Card into the Cutouts

3 Lower the OC-3c/STM-1 card until its beige bridge connector is aligned

over the beige bridge connector of the ATM Interface Carrier Module.

4 Place your fingers on the daughter card directly over the middle of the

beige bridge connector and press down to fasten the connectors

together (Figure 26). A click is heard when the connectors engage.

Installing the 155 Mbps-over-UTP5 Daughter Card
