46
C
3: I
R
D
C
HAPTER
NSTALLING AND
EMOVING THE
AUGHTER
ARDS

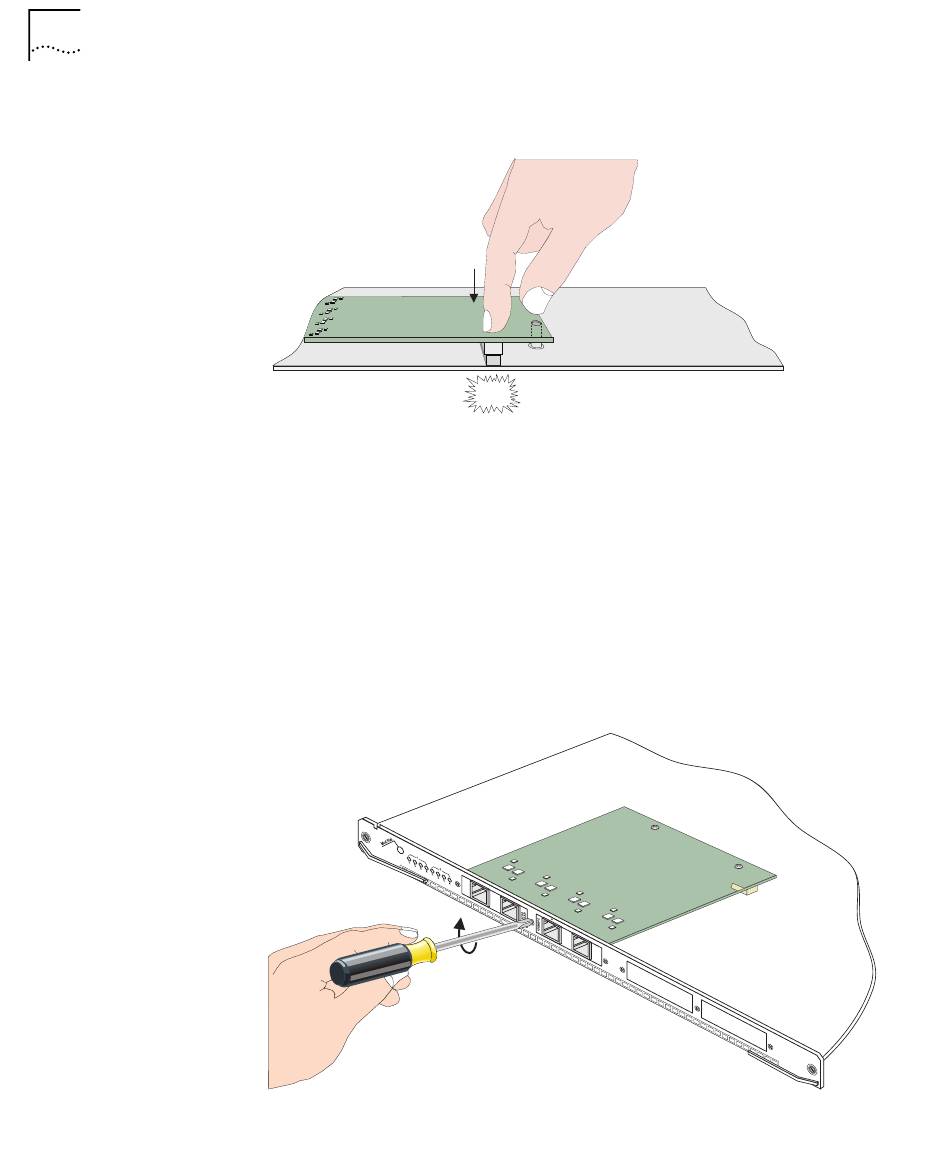

Figure 26 Fastening the Beige Connectors
click
5 Insert the three flathead countersink Phillips-head screws into the front
panel of the ATM Interface Carrier Module (Figure 27). Insert the screws
in the following order:
a Center of daughter card
b Right of daughter card
c Left of daughter card
Figure 27 Tightening the Screws
