3: I

HAPTER

NSTALLING AND

Removal Instructions

EMOVING THE

AUGHTER

To remove the OC-12c/STM-4 card:

1 Remove the three countersink Phillips-head screws from the front panel

using a #1 Phillips screwdriver (Figure 20).

2 Save the screws for future use in the part bag that they were shipped in.

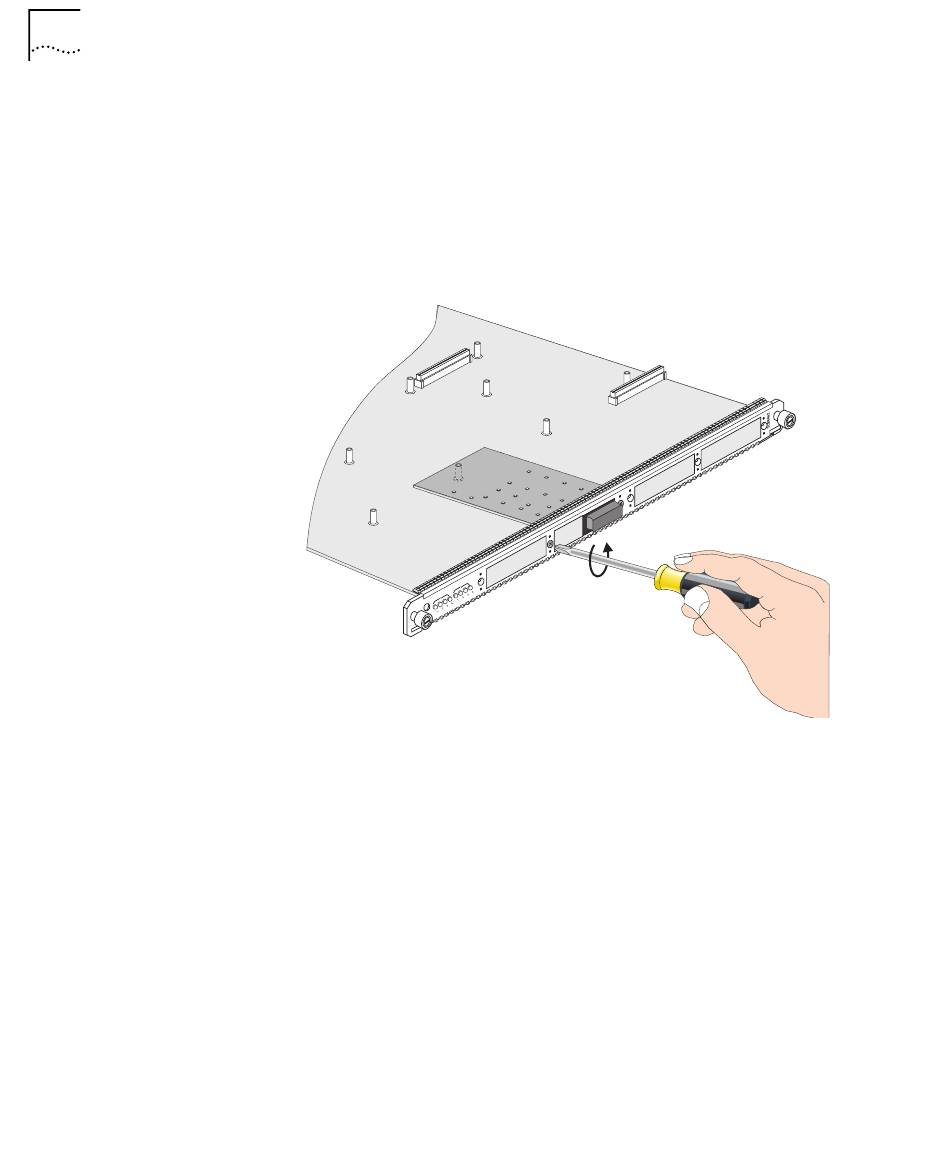

Figure 20 Removing the Countersink Screws

ARDS
