6 Insert the following screw and washer combination in the two holes on

the daughter card (Figure 28):

a One flat washer

b One spring washer

c One panhead Phillips-head screw

7 Repeat the operation for the second hole.

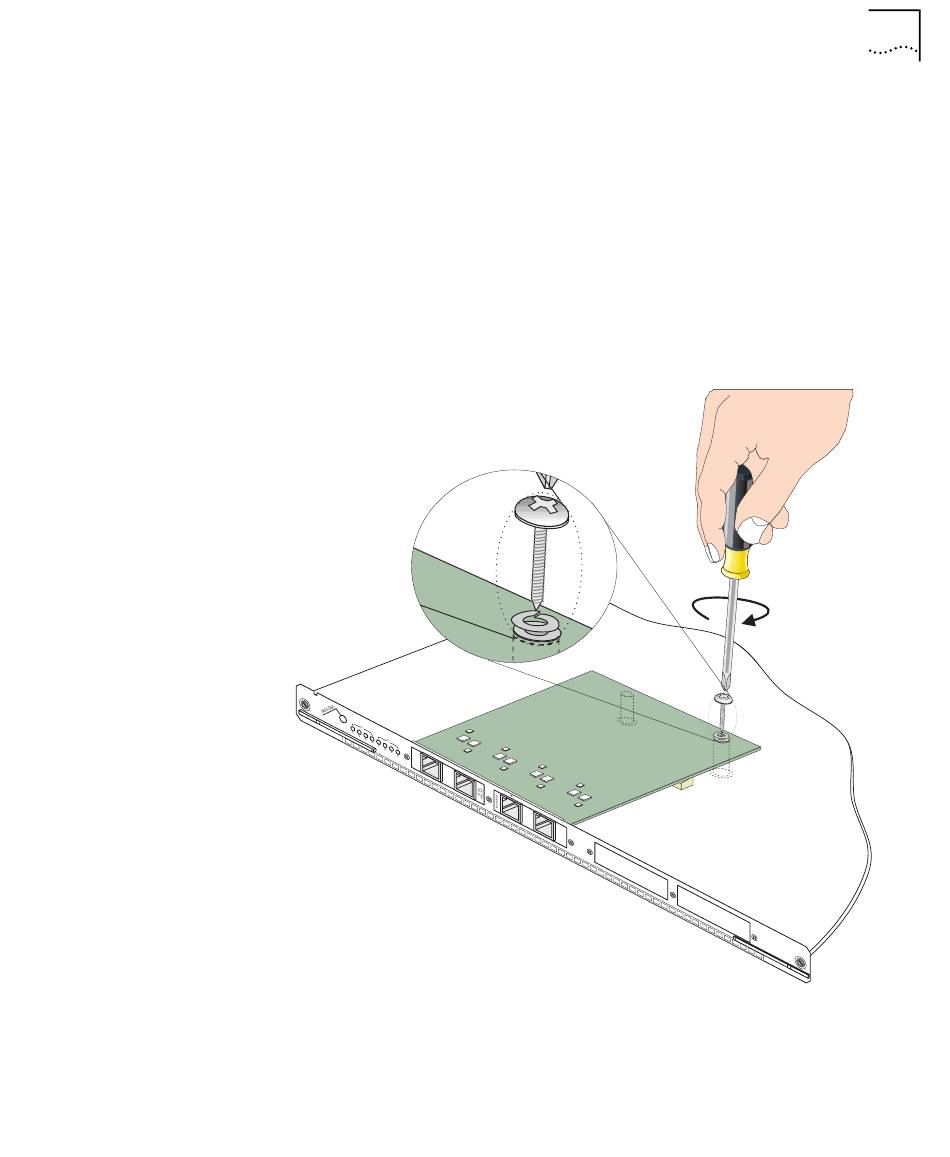

Figure 28 Inserting the Screws and Washers

Installing the 155 Mbps-over-UTP5 Daughter Card
