Installing the OC-3c/STM-1 Daughter Card or OC-3c SMLR Daughter Card

6 Insert the following screw and washer combination in the two holes at

the back of the daughter card (Figure 9):

a One flat washer

b One spring washer

c One panhead Phillips-head screw

7 Repeat the operation for the second hole.

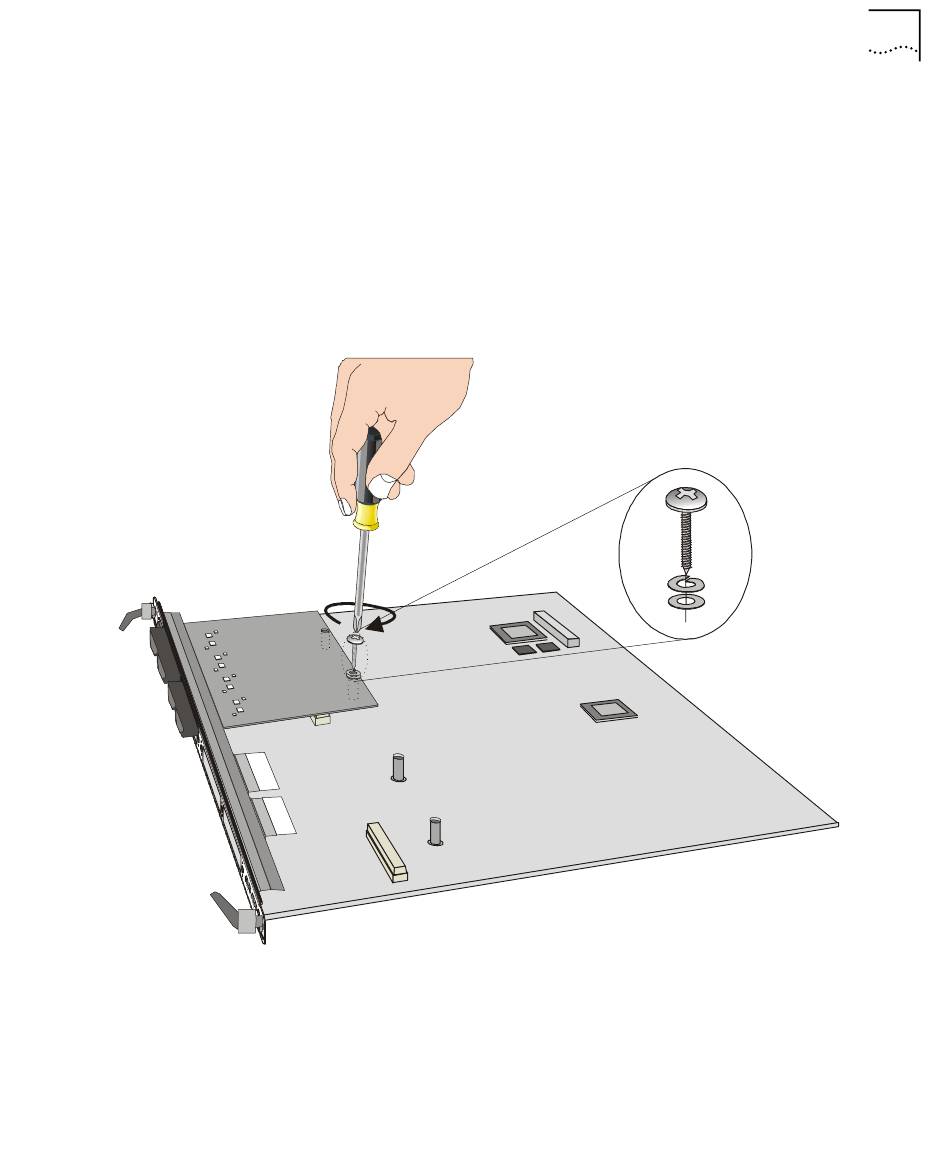

Figure 9 Inserting the Screws and Washers
