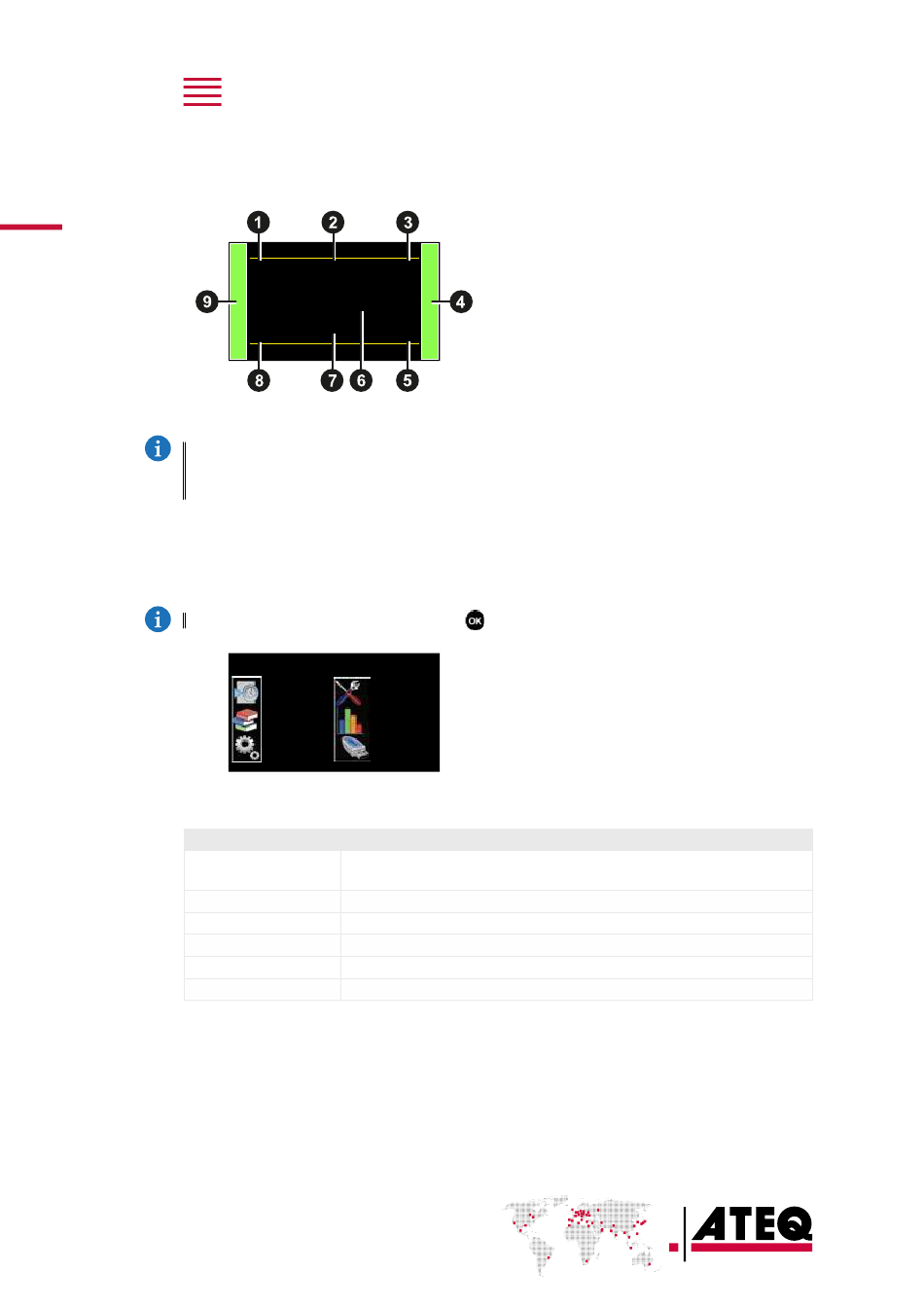

The Measurement cycle screen
The Measurement cycle screen displays the different values of the current test (or last one).
34 / 46
A star (*) can be displayed after the measurement unit 7 when the standard conditions function
is validated.
Refer to the Reference Manual.
The MAIN MENU screen
The MAIN MENU screen gives access to different sections for managing the device and
the test parameters.
Access: from the Program screen, press
Option
SPE CYCLE
PARAMETERS
CONFIGURATION
SERVICE
RESULTS
USB
QSG_F620.283.00_EN_01 / 2019-02-20
TEST
0.742 40
bar Pa
13
Pa
1.3 s
Pr 1
MAIN MENU
SPE CYCLE SERVICE
PARAMETERS RESULTS
CONFIGURATION USB
Description
Specific procedures necessary to ensure the proper operation of specific
measurement cycles (for example, adjustment of a pressure regulator).
Parameters of the test programs.
General configuration of the device.
Maintenance of the device.
Test results, backup and display options.
USB connection functions (backup, restore).
1 Test pressure measurement
2 Test result or step phase
3
Test reject value
4 Vertical line test result
5
Remaining time of the current phase
or ready status
6
Leak measurement
7 Measurement unit
8 Current program
9 Vertical line test result
.
