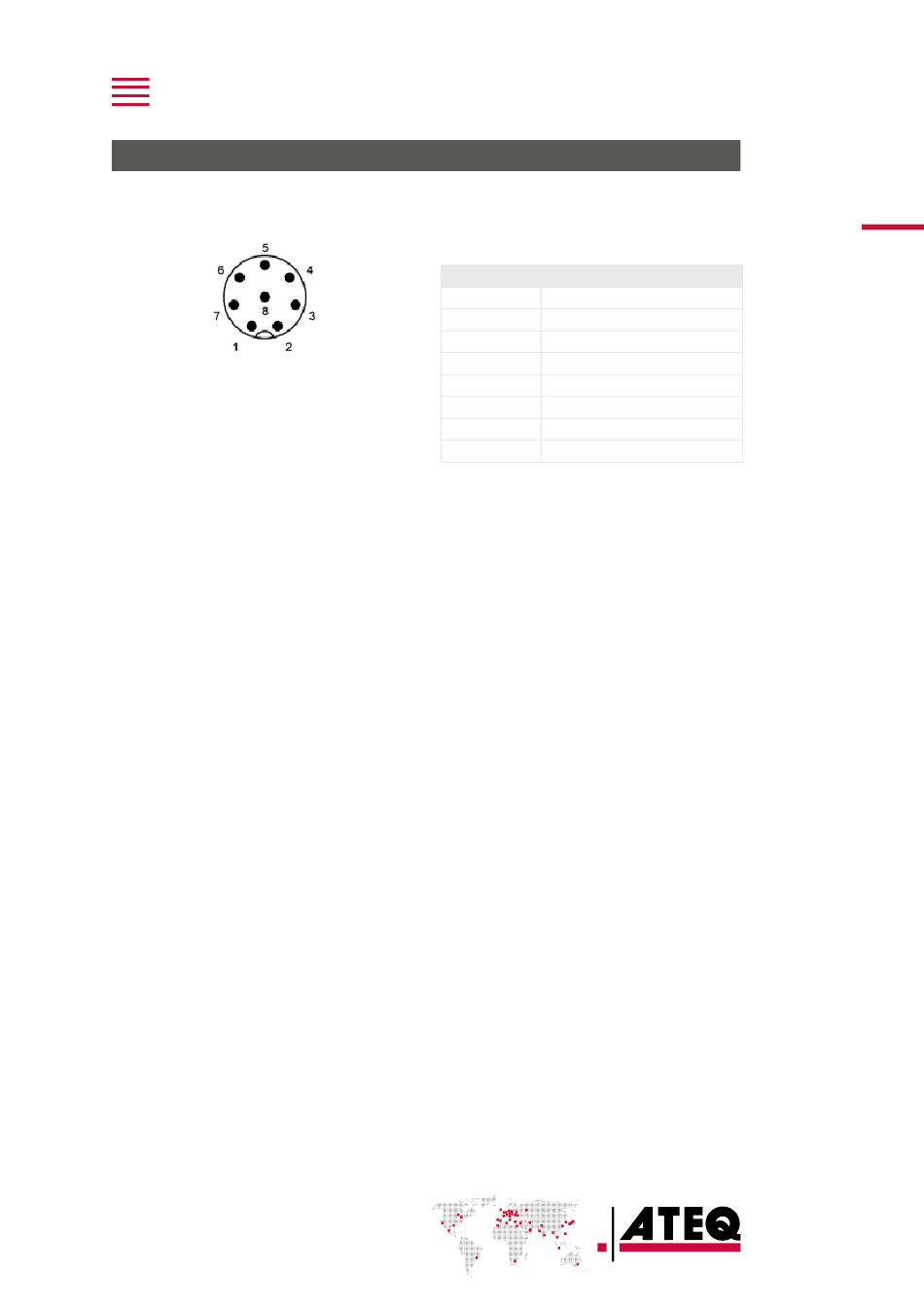

ANALOG OUTPUTS
M12 type connector - 8 pins female connector (J1)
QSG_F620.283.00_EN_01 / 2019-02-20
Pin number
Signal
1
Ground Pressure
2
0 - 10 V DC Pressure
3
Ground Pressure (Diff)
4
0 - 10 V DC Pressure (Diff)
5
Signal contact event
6
Ground contact event
7
Other options
8
Other options
17 / 46
