ATEQ F620 Quick Start Manual page 27

Direct mode - High range
Maximum pressure: 2 MPa (290 PSI)

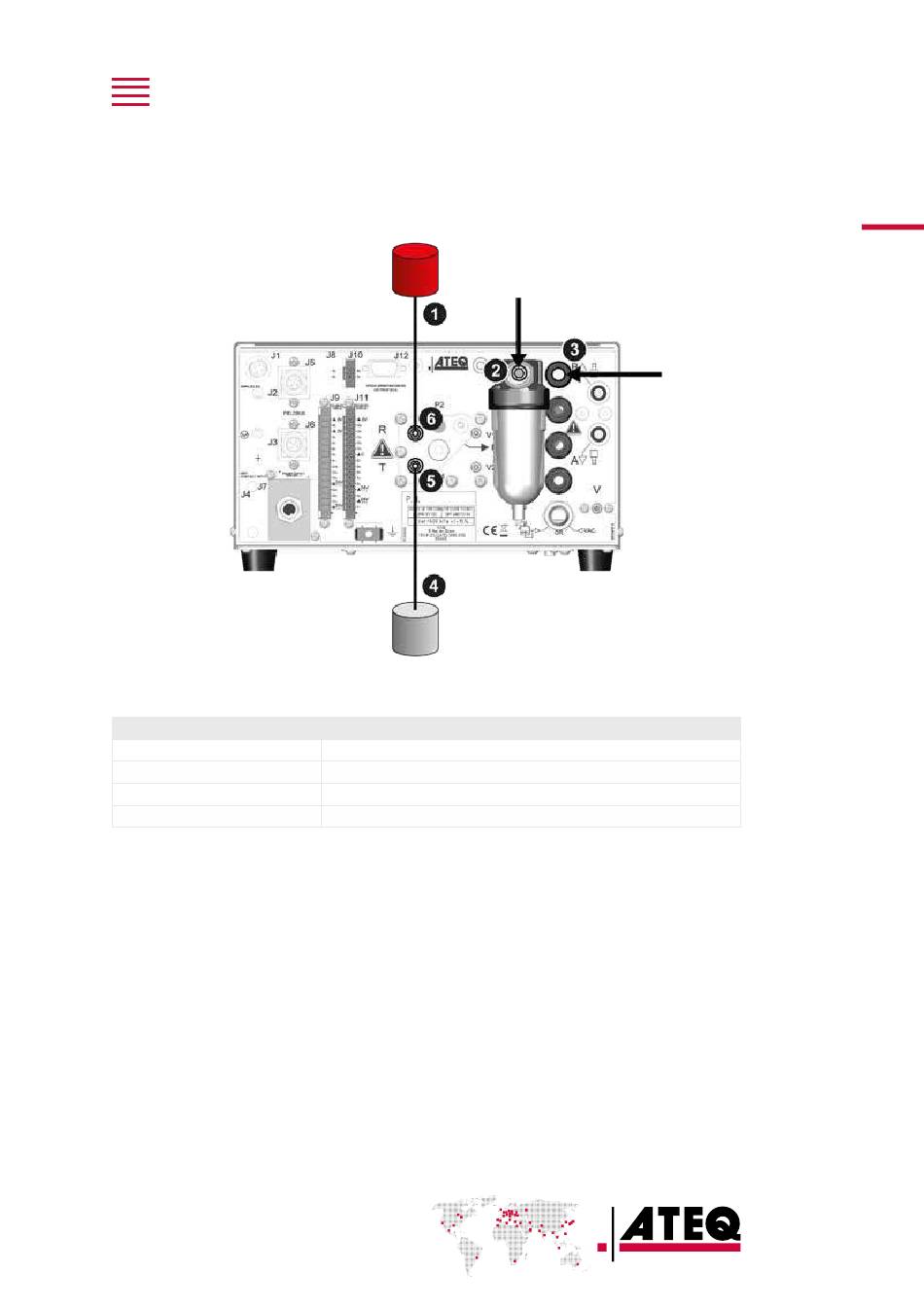

Connections
Connection
6 to 1
5 to 4
Air supply to 2
Regulator air supply to 3
QSG_F620.283.00_EN_01 / 2019-02-20
Option / description
Connection of the reference output to the reference part
Connection of the test output to the part under test
Connection of the air supply to the filter input (0.6 MPa (87 PSI))
Connection of the regulator air supply (2 MPa (290 PSI))
27 / 46
